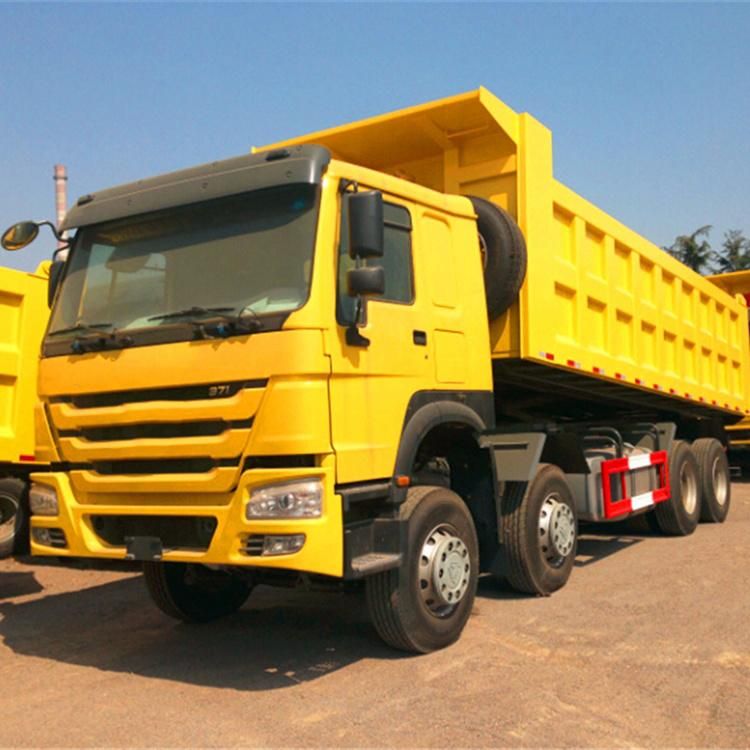

Sinotruck HOWO 8X4 Dump Truck Tipper in Peru
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service:Online Support
- Warranty:Online Support
- Wheel Base:3800+1350mm
- Transport Package:Roro
- Specification:15530*4000*2800mm
- Trademark:howo
Base Info
- Model NO.:HOWO 8X4
- Origin:China
- Production Capacity:50000PCS,Year
Description
Typical truck modelZZ3317N3567A ZZ3317N3867A ZZ3317N4347A ZZ3317N4667A Cab Model HW76 Type HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. Engine Model WD615.69 WD615.47 Rated power 336HP(247Kw/rpm) 371HP(273Kw/rpm) Displacement 9.726L Type 6 cylinder in-line with water cooling, turbo-charging & intercooling Wheelbase 1800+3500+1400mm 1800+3800+1400mm 1800+4300+1400mm 1800+4600+1400mm Cargo body size 7000x2300x1500mm 7300x2300x1500mm 7800x2300x1500mm 8500x2300x1500mm Clutch Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance Transmission Front axle Steering axle with double T-cross section HF9 Drive axle Pressed axle housing, central single reduction HC16/AC16
Ratio: 5.73 Chassis Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap Steering hydraulic steering with power assistance Brakes Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS Wheel & Types Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube Electrics Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Ratio: 5.73
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
