• Model NO.：GR100
• Engine Model：4bt3.9
• Rated Power/Speed：75,2400kw,Rpm
• Operating Weight：7000kg
• Max. Gradeability：20%
• Tire Inflation Pressure：350kpa
• Working Hydraulic Pressure：16MPa
• Maximum Lift Above Ground：300mm
• Transport Package：Nude
• Specification：6880x2375x3150mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：350units,Month

Basic specificationEngine model4BT3.9Rated power/speed75/2400kw/rpmDimension(LxWxH)6880×2375×3150mmOperating weight(Standard)7000kgPerformance specificationTravelling speed ,forward5,10,20,39km/hTravelling speed ,reverse8,25km/hTractive force(f=0.75)41.6KNMax. gradeability20%Tire inflation pressure350KPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box Frame articulation angle±27°Min. turning radius using articulation5.9mBiadeMaximum lift above ground300mmMaximum depth of cutting350mmMaximum blade position angle45°Blade cutting angle28°-70°Circle reversing rotation120°Moldboard width X height3048×500mm

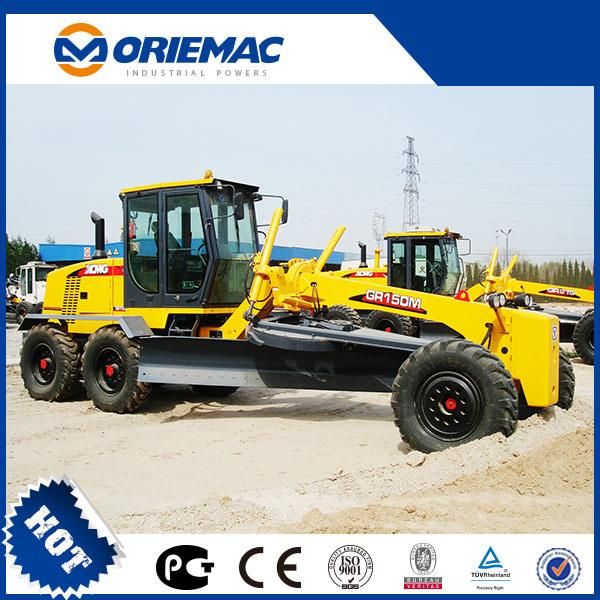

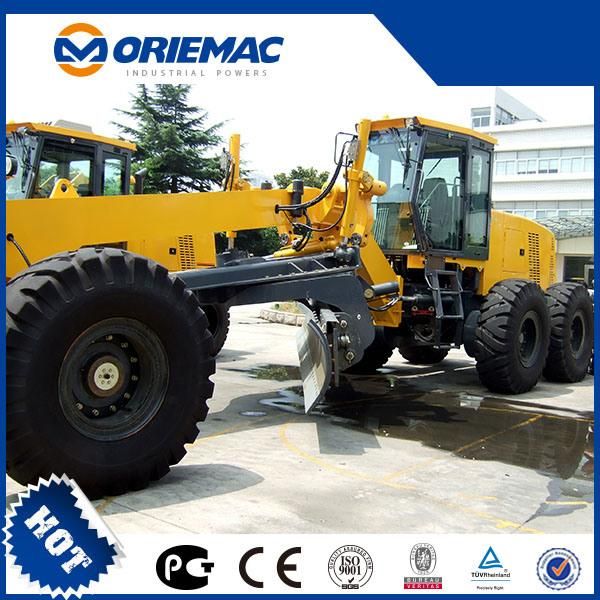

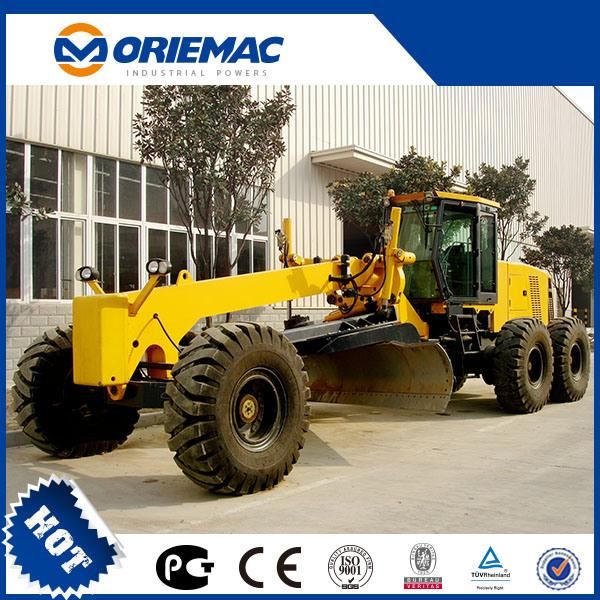

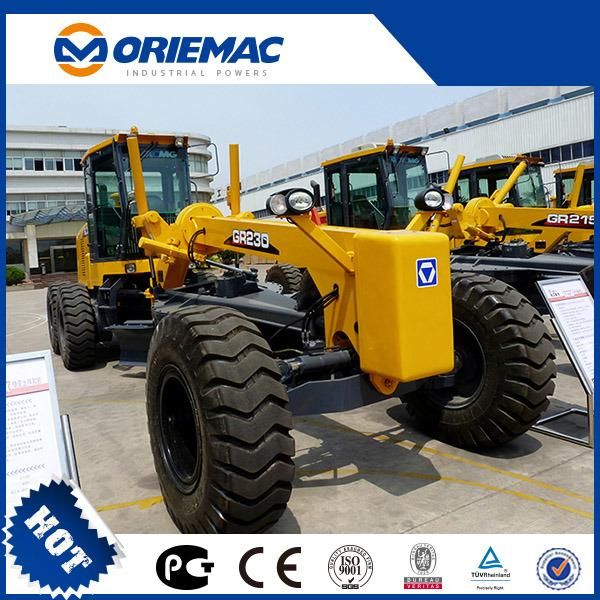

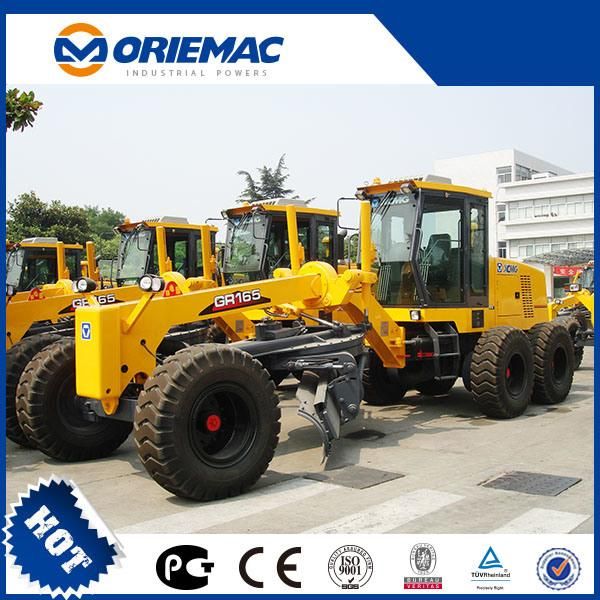

Product Show
