Lowest Price Shantui Sg21-3 215HP Road Construction Mahinery/Road Grader/Motor Grader
Qingdao Chary Machinery Co., Ltd.- Certification:ISO, CE
- Condition:New
- Transmission:Power
- Walking Mode:Wheeled
- Type:Medium-sized Grader
- Model:Sg21-3
Base Info
- Model NO.:SG21-3
- Engine:6ctaa8.3-C215
- Engine Brand:Cummins
- Rated Power(Kw/Rpm):160(215HP),2200
- Operating Weight (T):17
- Vehicle Speed (Km/H):5.4~39.7
- Minimum Turning Radius (mm):8200
- Blade Dimension (mm):4270,635
- Rated Working Pressure (MPa):16
- Equipment:Pilot Control
- Transport Package:Nude Packing
- Specification:9430*2600*400
- Trademark:Shantui
- Origin:China
- HS Code:8401200000
- Production Capacity:1000 Per Month
Description
Basic Info.
Model NO. SG21-3 Engine 6ctaa8.3-C215 Engine Brand Cummins Rated Power(Kw/Rpm) 160(215HP)/2200 Operating Weight (T) 17 Vehicle Speed (Km/H) 5.4~39.7 Minimum Turning Radius (mm) 8200 Blade Dimension (mm) 4270/635 Rated Working Pressure (MPa) 16 Equipment Pilot Control Transport Package Nude Packing Specification 9430*2600*400 Trademark Shantui Origin China HS Code 8401200000 Production Capacity 1000 Per MonthProduct Description
Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
Mobile: +86 1350 639 0903
Product discription:

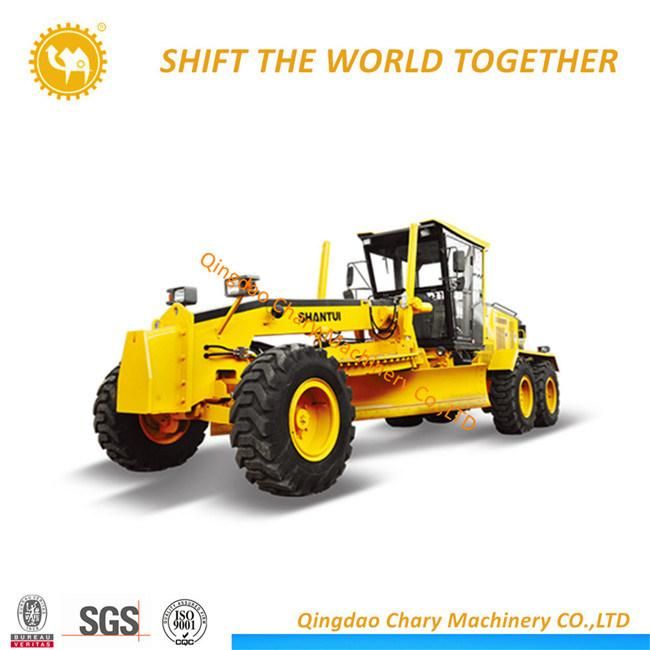

Lowest Price Shantui Sg21-3 215HP Road Construction Mahinery/Road grader/Motor Grader
Technical Features
"SG21-3 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm improvements. "Performance Parameters
Weights(kg) | 17000 |
Front axle load(kg) | 5100 |
Rear axle load (kg) | 11900 |
Minimum turning radius(mm) | 8200 |
Articulation angle(°) | 25 |
Working hydraulic pressure(Mpa) | 16 |
Engine Model | 6CTAA8.3-C215 |
Rated horsepower(Kw) | 162 |
Maximum torque/speed(N.m)/(rpm) | 927 N·m/1400 rpm |
Blade length(mm) | 3660/3965/4270 mm |
Blade height(mm) | 635 |
Blade rotational angle(°) | 360° |
Cutting angle adjustment range(°) | 44~91 |
Maximum cutting depth(mm) | 500 |
Cutting force per dozing(kN/m) | 22.25/23.96/25.96 kN/m |
Maximum lift above ground(mm) | 440 |
Forward(km/h) | 1st 0-5.4 2nd 0-9.2 3rd 0-12 4rd 0-20.3 5rd 0-25.2 6rd 0-39 |
Reverse(km/h) | 1st 0-5.3 2nd 0-12 3rd 0-25.2 |
Maximum climbing ability(°) | 20 |
Overall dimensions (mm) | 9430×2600×3400 |
MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU
WHY CHOOSE US?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
FAQ
1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.
2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.
3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.
If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
