• Model NO.：ZXL
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Red

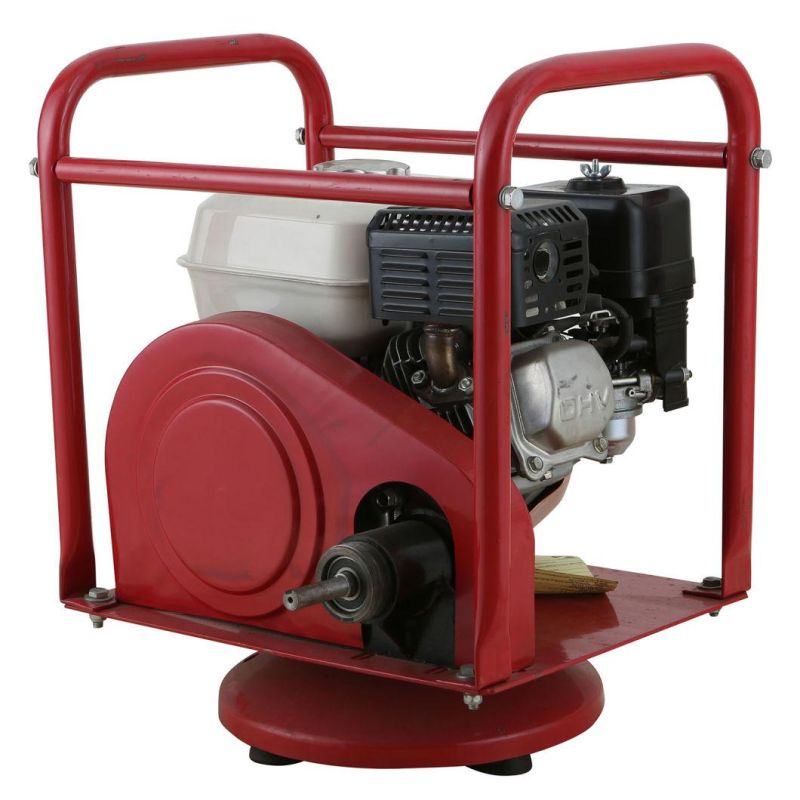

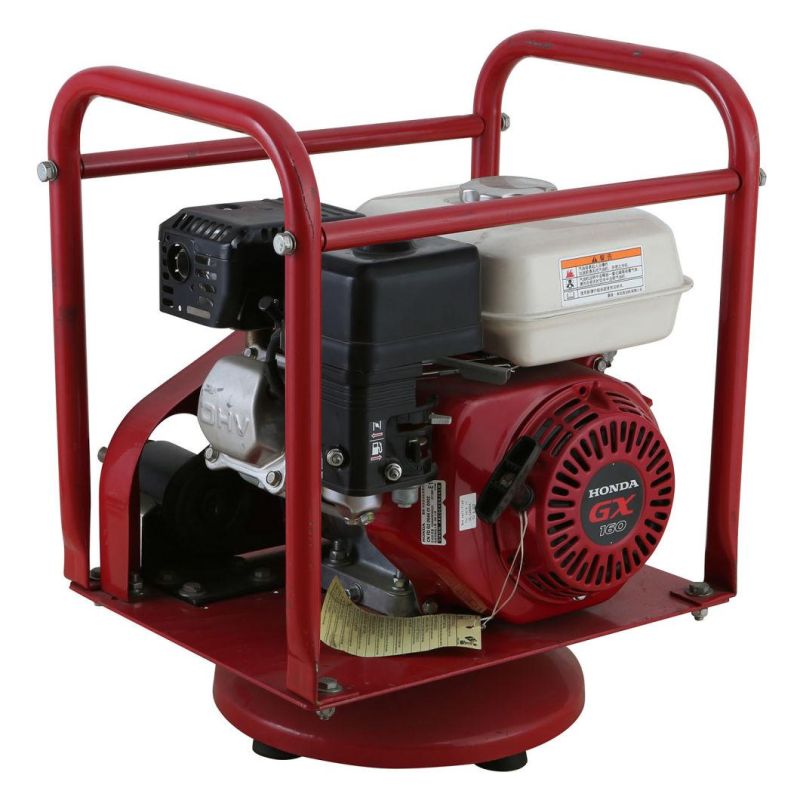

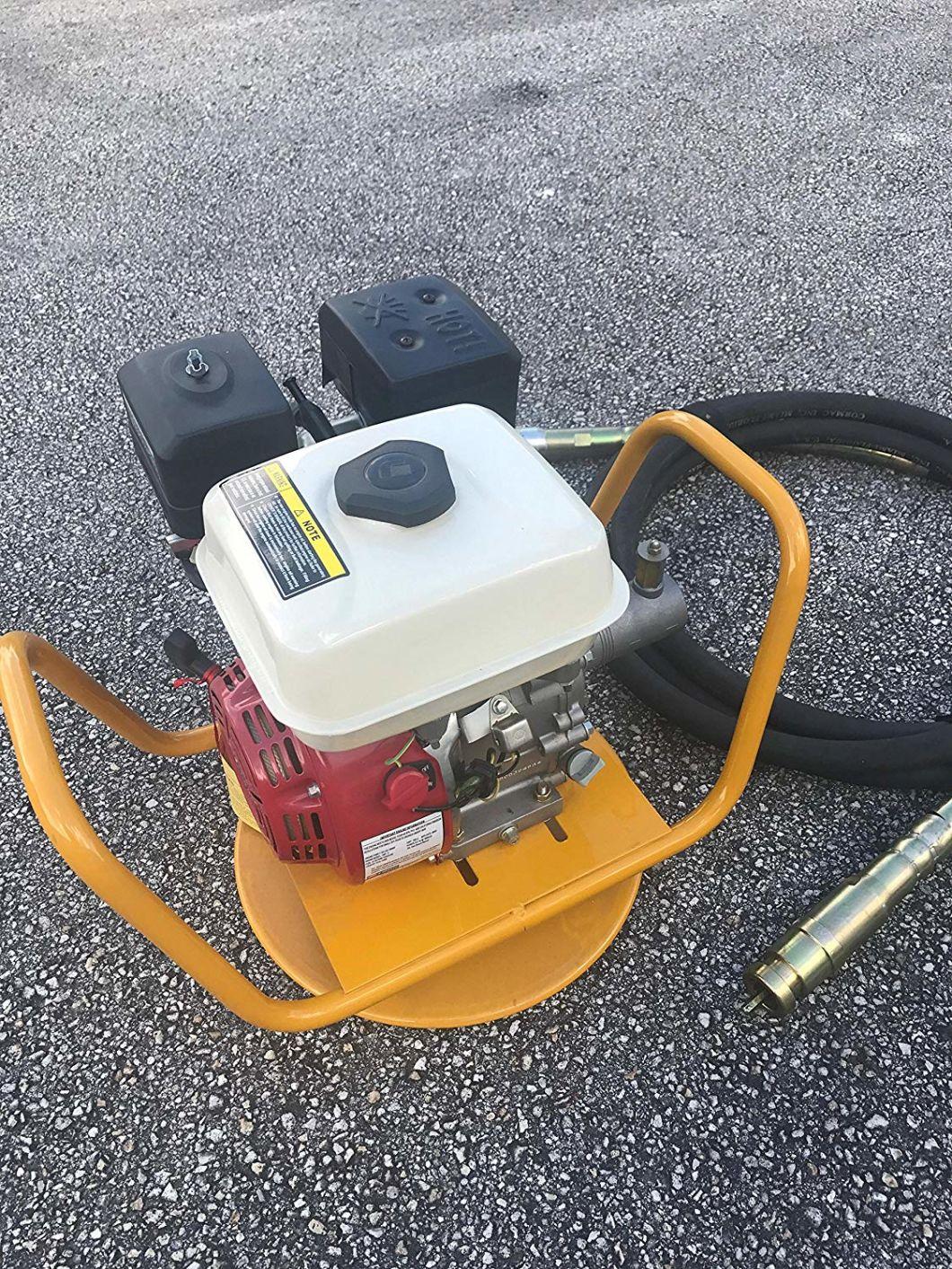

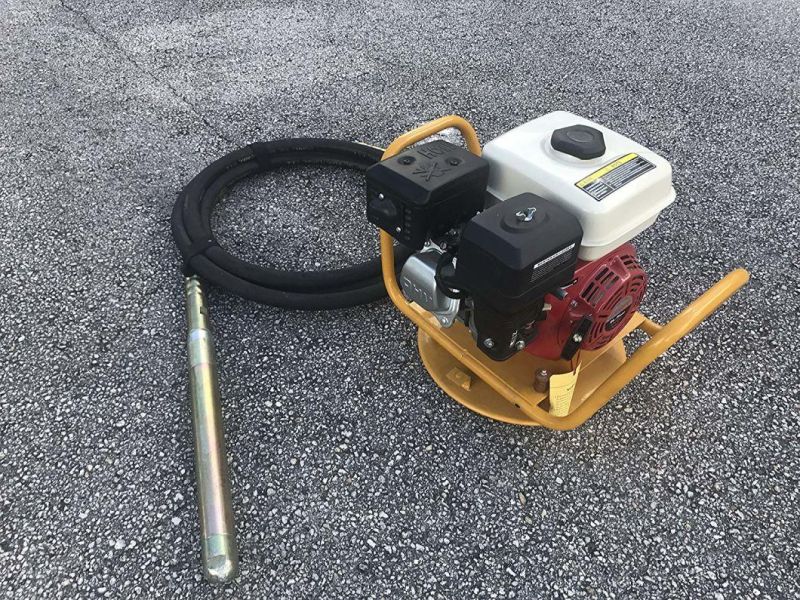

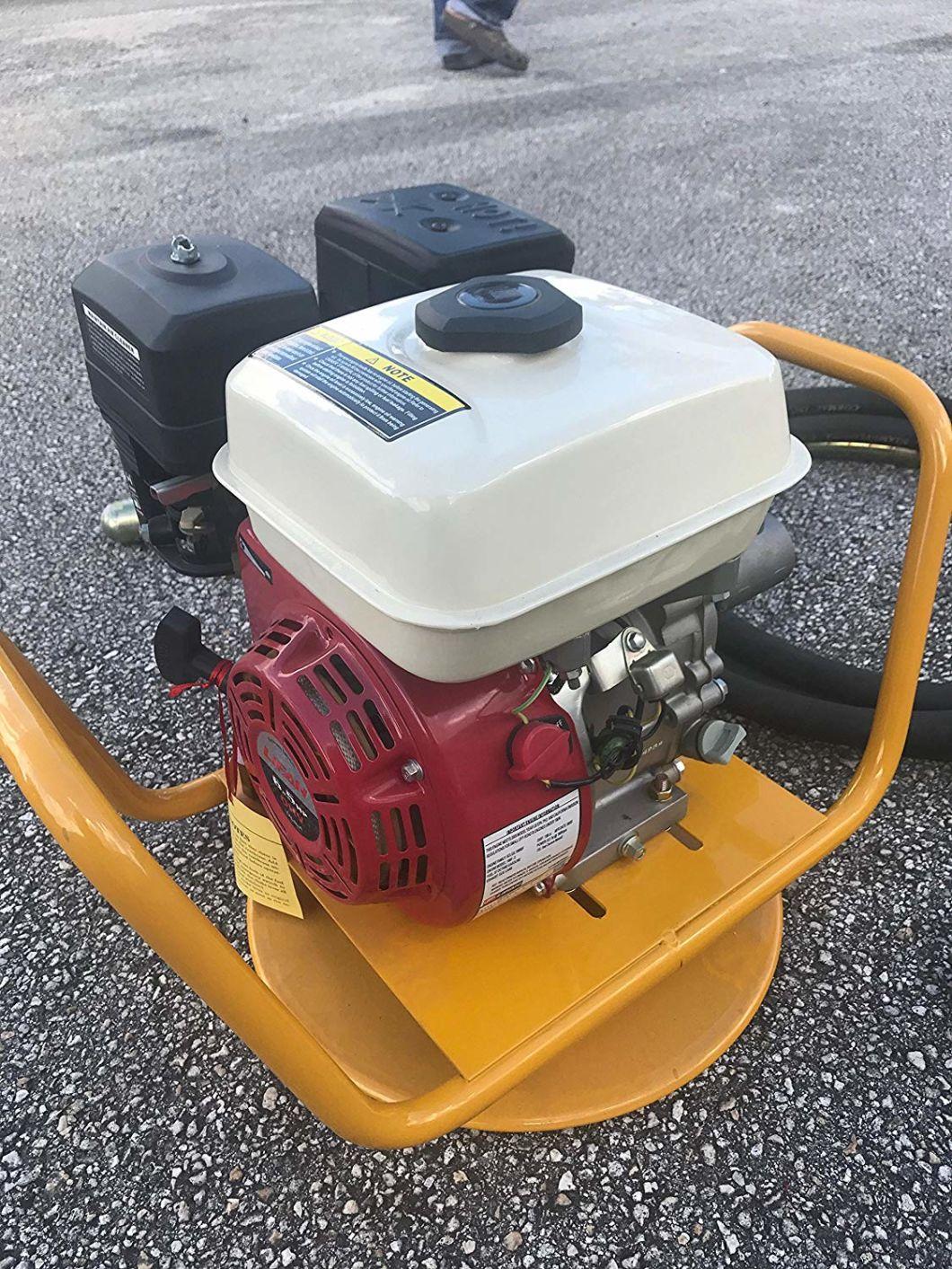

• Product Name：Gasoline Engine Vibrator
• Engine Type：Loncin
• Engine Power：6.5HP

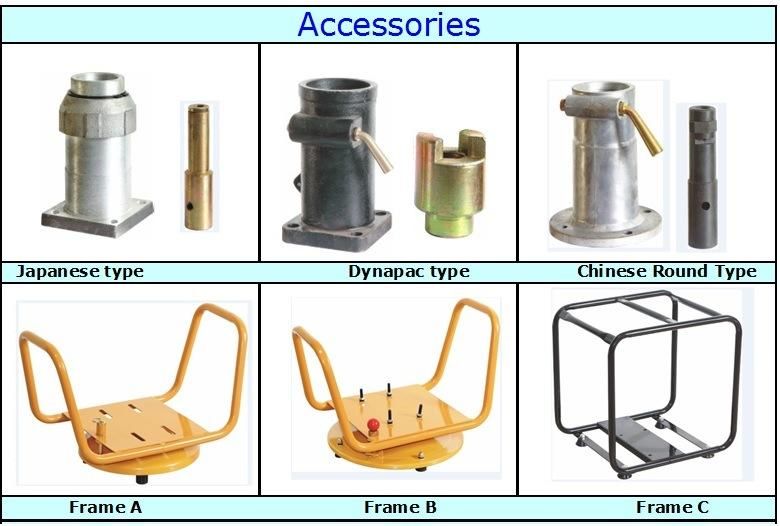

• Connector：Japanese Type
• Weight：22kgs
• Packing Size：51*39*43cn
• Transport Package：Carton
• Specification：6.5HP
• Trademark：kzw
• Origin：China
• HS Code：84306100
• Production Capacity：300000 PCS,Year

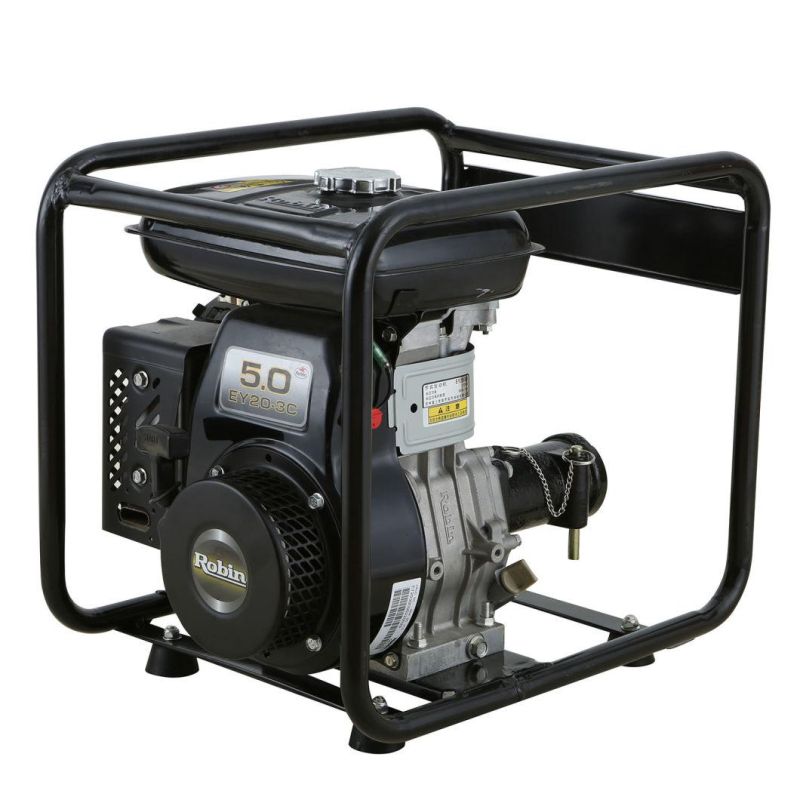

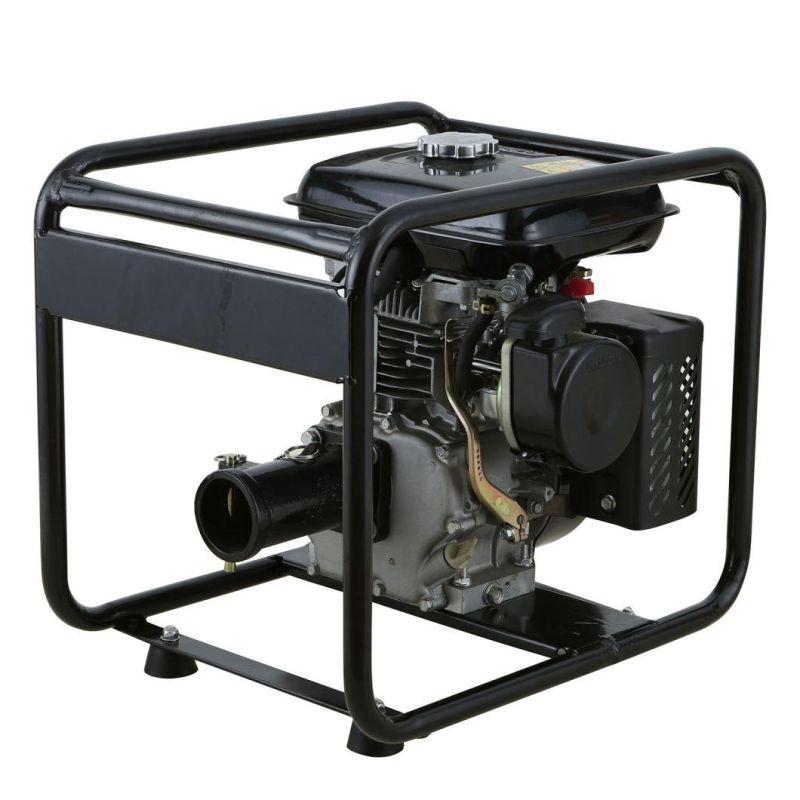

ItemGasoline engine vibratorModelZXRZXRCEngine ModelROBIN EY20Robin copy RB20Engine type4-stroke 25° Single-cylinder with Air-cooledBorex stroke1-67*52mm1-67*52mmDisplacement183cm3183cm3Compression Ratio8.5:18.5:1Max power5hp/3600rpm5hp/3600rpmRecommded power using3.5hp /3600rpm3.5hp  /3600rpmFuel Tank capacity3.8L3.8LFuel consumption230g/hp-hr (313g/kwh)230g/hp-hr (313g/kwh)packing size51*39*51cm51*39*51cmN..W/G.W.20kgs/22kgs20kgs/22kgs

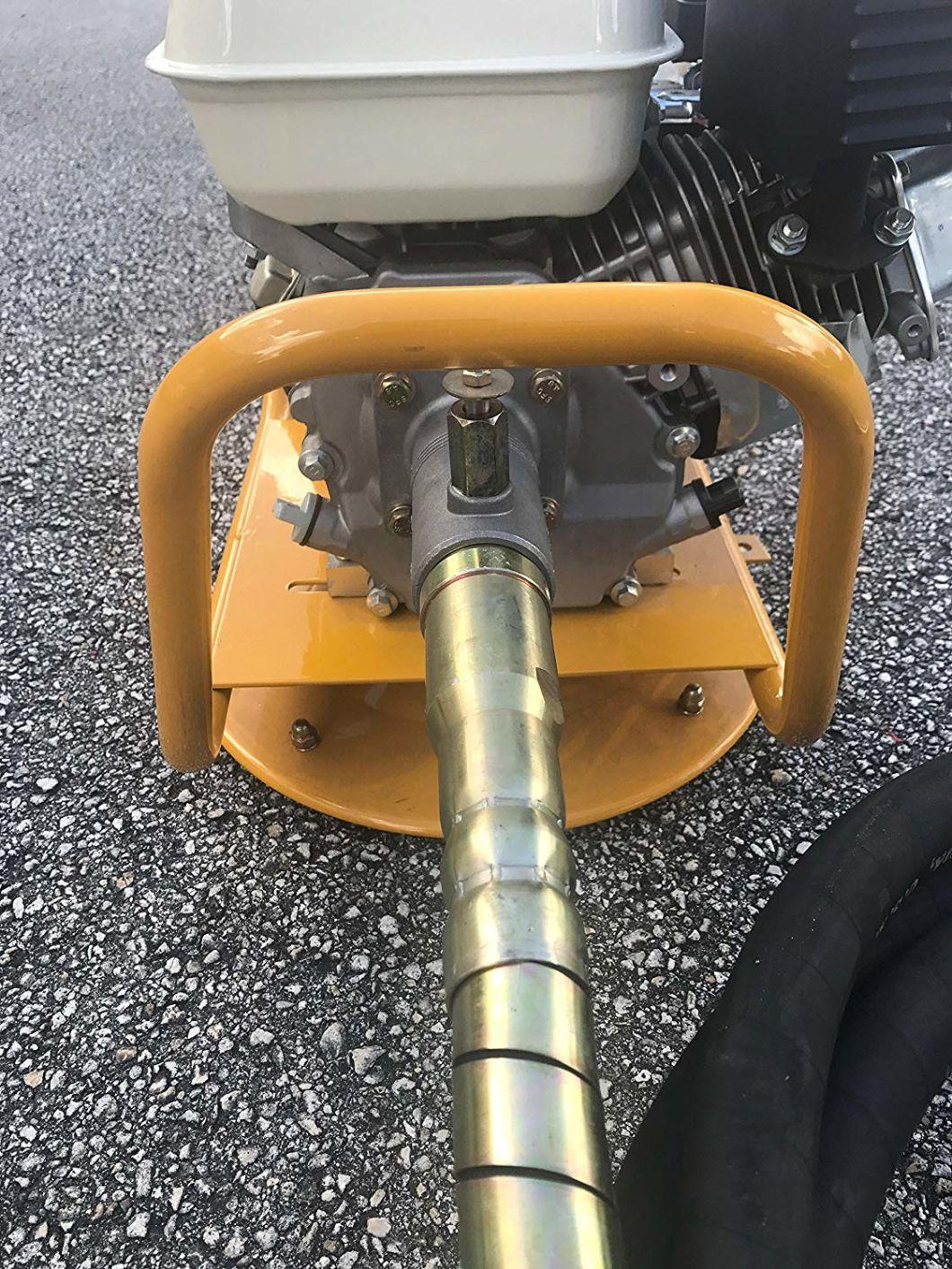

Match concrete vibrator shaft :ItemConcrete vibrator shaftModel¢(mm)ZX35ZX-38ZX-45ZX-50ZX-60ZX-70Diameter of head¢(mm)353845505070Length of headL (mm)380420420480410450Vibrating Frequency(HZ)183185185200200200Vibrating Ampitude(mm)0.9111.21.151.151.35Dia of flexiable hoseD(mm)303032363636Diaof flexiable shaftD(mm)101010131313Weight (6mtr)(kg)141516202124packing sizeCM75*75*5.5
