• Model NO.：TR-TCP200
• Automatic Grade：Non-Automatic
• Product Capacity：1000 Square Meter,Day
• Certification：ISO9001: 2000
• Condition：New
• Engine：13HP Gasoline Engine
• Paint Pump：Single 9L,Min Piston Pump
• Paint Tank：Optional, 100L with Pneumatic Stirring System
• Applicable Paint：Cold-Solvent Paint or Water-Based Paint
• Marking Width：50-500mm
• Recommended Width：150-400mm
• Moving Method：Vehicle Mounted
• Spray Gun：Two Pneumatic Spraying Gun
• Transport Package：Plywood Case
• Specification：2000*2000*1500mm
• Trademark：Touran Traffic
• Origin：China
• HS Code：8479109000
• Production Capacity：20,Month

Product NameVehicle mounted Cold Paint High-pressure Airless
Road Marking MachineModel NumberTR-TCP200 TypeMoving MethodVehicle MountedControl MethodAutomatic Control through control panel.Brief introductionVehicle mounted (Truck mounted) cold paint airless road marking machine is a practical marking equipment with high construction efficiency and low cost input, very suitable for the construction of road markings in countries or regions where the construction equipment is allowed to be carried on load carrying vehicle. It is equipped with one separate spraying system. It is oftentimes widely used for spraying cold-solvent paint, water-based paint and other single-component paint, can be applicable to various construction environments as well.
Δ GLASS BEADS SPRAYING SYSTEM AS STANDARD CONFIGURATION.

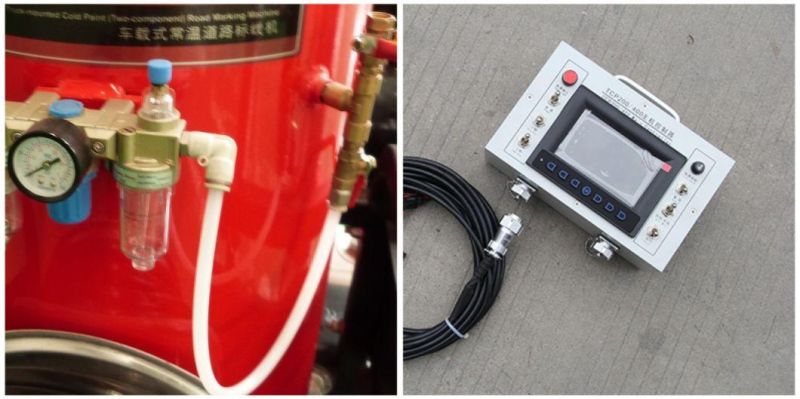

High efficient oil water separator on the 86L large capacity pressurized glass beads tank keeps the air in the tank dry to avoid the glass beads damped, spraying nozzle blocked. Adjustable glass beads spraying pressure and flow can meet the different requirement for the spraying system. Δ AUTOMATICALY CONTROL THE TYPE OF DOTTED LINE
Equipped with microcomputer control system. It can be accurately operated according to line standard and executing request. The dotted line marking job is fully automatic.



Technical DataEngine13HP Gasoline engineApplicable paintCold-solvent paint and water-based paintPaint PumpSuper-alloy piston pumpsMarking width50-500mm(adjustable)Pump flow20 L/minSpray gun configurationTwo pneumatic spraying guns as standard Dimension(Main frame)1200x1200x1300mmWeight350Kg (only for main frame)

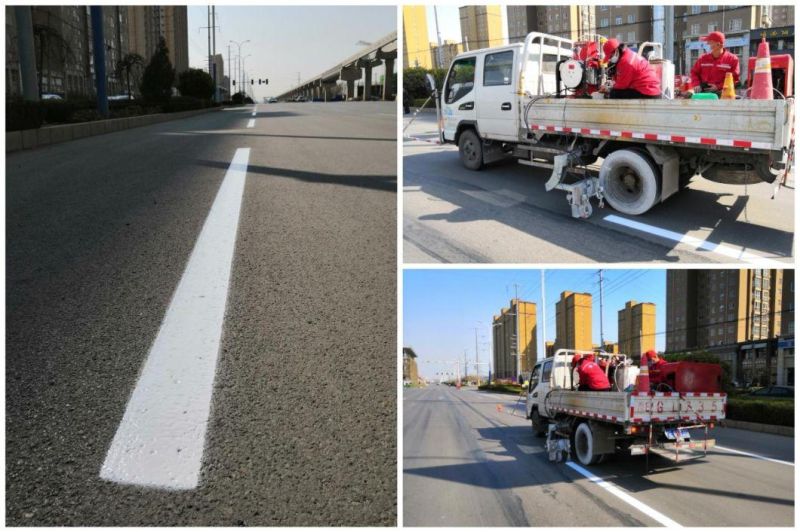

Construction Photos
This machine is widely used in cold paint marking construction on urban roads, expressway, highway and so on.

Company file

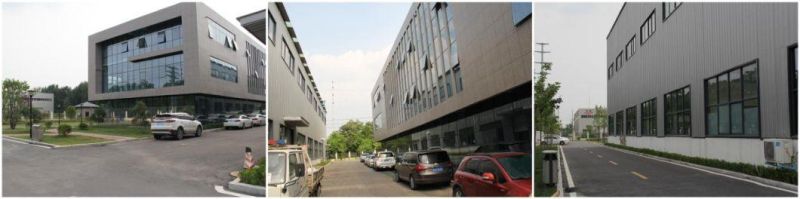

1. Enterpise Scale


Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.

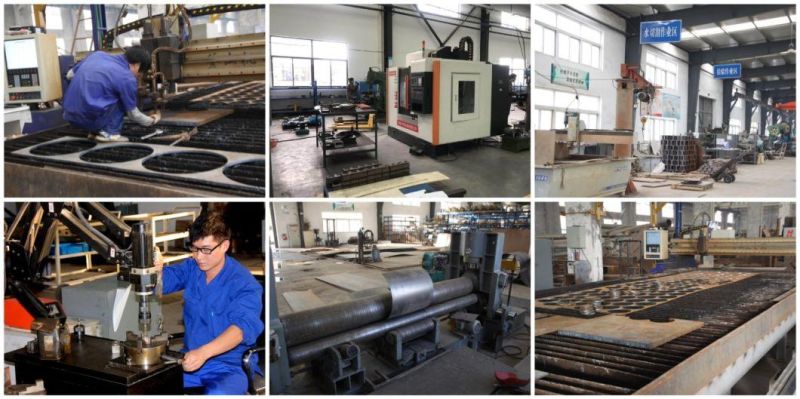

2. Production, R&D Strength

Total supporting more than 30 sets of professional mechanical processing equipment, nearly 100 professional and technical workers team.

3. Excellent Talent Team

TOURANTRAFFIC has an enterprise management team with rich industry experience and innovative spirit. It has accumulated and attracted nearly 100 professional engineering machinery design and manufacturing talents and gathered a large number of professional industrial workers to fully support the continuous investment and technology accumulation of TOURANTRAFFIC in the industry.

4. Exported to over 35 countries

Recently, our products are exported to over 35 countries in Southeast Asia, South America, The Middle East, North Africa and Europe. To be the " Reliable Partner " of clients with our quality products, customer satisfaction and solution service is our consistent service concept. TOURANTRAFFIC is getting stronger every day in this field in above countries and regions.

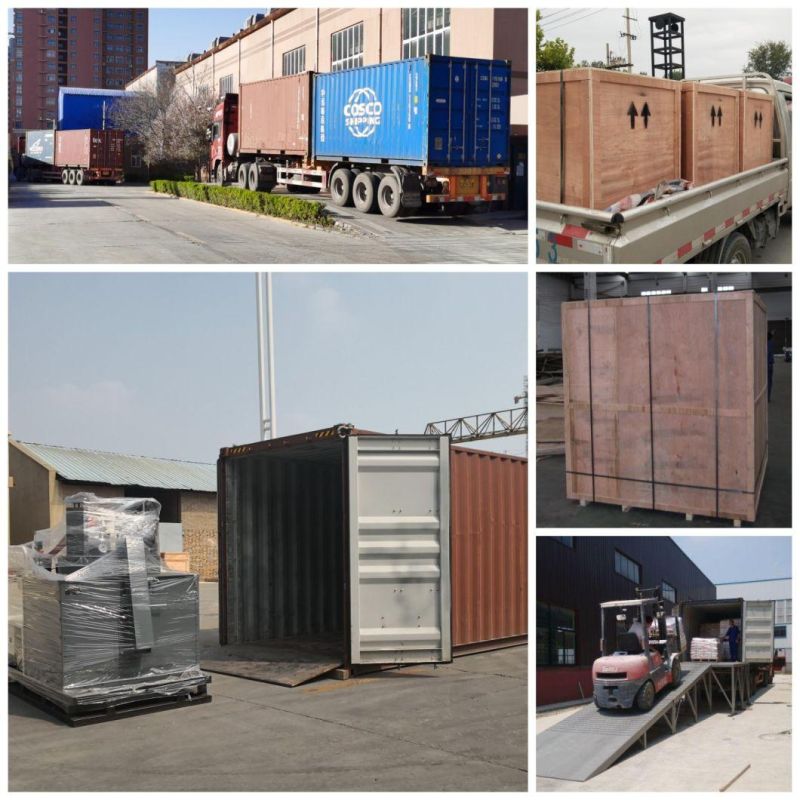

Packing & Delivery
All standardized packaging, suitable for long distance transportation by Land or Ocean. Professional logistics operation team, convenient and fast delivery to all over the world.

FAQ

1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.

2.About Sample:
Samples of traffic safety products are provided and is Free, but the air freight is collect or you pay us the cost in advance.

3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.

4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.

5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.

6.About Payment or other question:
Pls email us or chat with us online directly.
