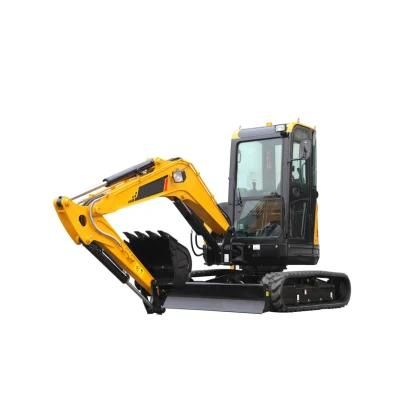

High Quality Excavator 9075e with Hydraulic Filter Spare Parts
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：9075E
- Type：Small Loader
- Transport Package：Sea
- Origin：China
Description
Product Description
Machine weight
7500kg
power
46.3kW@2200rpm
Standard bucket capacity
0.32m³
engine model
4TNV98
Emission Standards
National Three
Type
4-cylinder inline, water-cooled, direct injection, EGR
Rated power (rated speed)
46.3kW@2200rpm
Net power (rated speed)
44.5kW@2200rpm
Maximum torque (torque/speed)
245/1650N·m
cooling method
Water cooling
High/low driving speed
4.8/2.8km/h
Swing speed
11rpm
Gradeability
35°
Ground pressure
33.3kPa
Stick Rated/Pressurized Digging Force (ISO)
38kN
Bucket rated/pressurized digging force (ISO)
56kN
Long (transport state)
6100mm
Overall width (standard track configuration)
2260mm
High (transport state)
2700mm
Minimum ground clearance
360mm
Wheelbase of chassis
2230mm
Underframe gauge
1750mm
Track width (standard)
450mm
Maximum digging height
7115mm
Maximum digging radius
6270mm
Maximum digging depth
4030mm
Maximum unloading height
5080mm
