• Model NO.：KD3500
• Real Concrete Yield Per Batch：3.5cbm
• Loader Bucket Capacity：600L
• Engine：Yuchai Ycd4j22t-115
• Rated Power：85kw
• Transmission：Hydraulic
• Front Tyre Size：Double Wheels 1000-20
• Rear Tyre Size：16,70-20
• Speed Range：Low: 0-8 Km,H, High: 0-16 Km,H
• Discharge：270 Degree Discharging Concrete
• Water Tank：660L
• Weight：7500kgs
• Overall Dimensions(L*W*H)：7420*2400*2800 mm
• Transport Package：Nude Cargo
• Specification：3.5m3
• Trademark：Konodeere
• Origin：Shandong China
• Production Capacity：300,Year

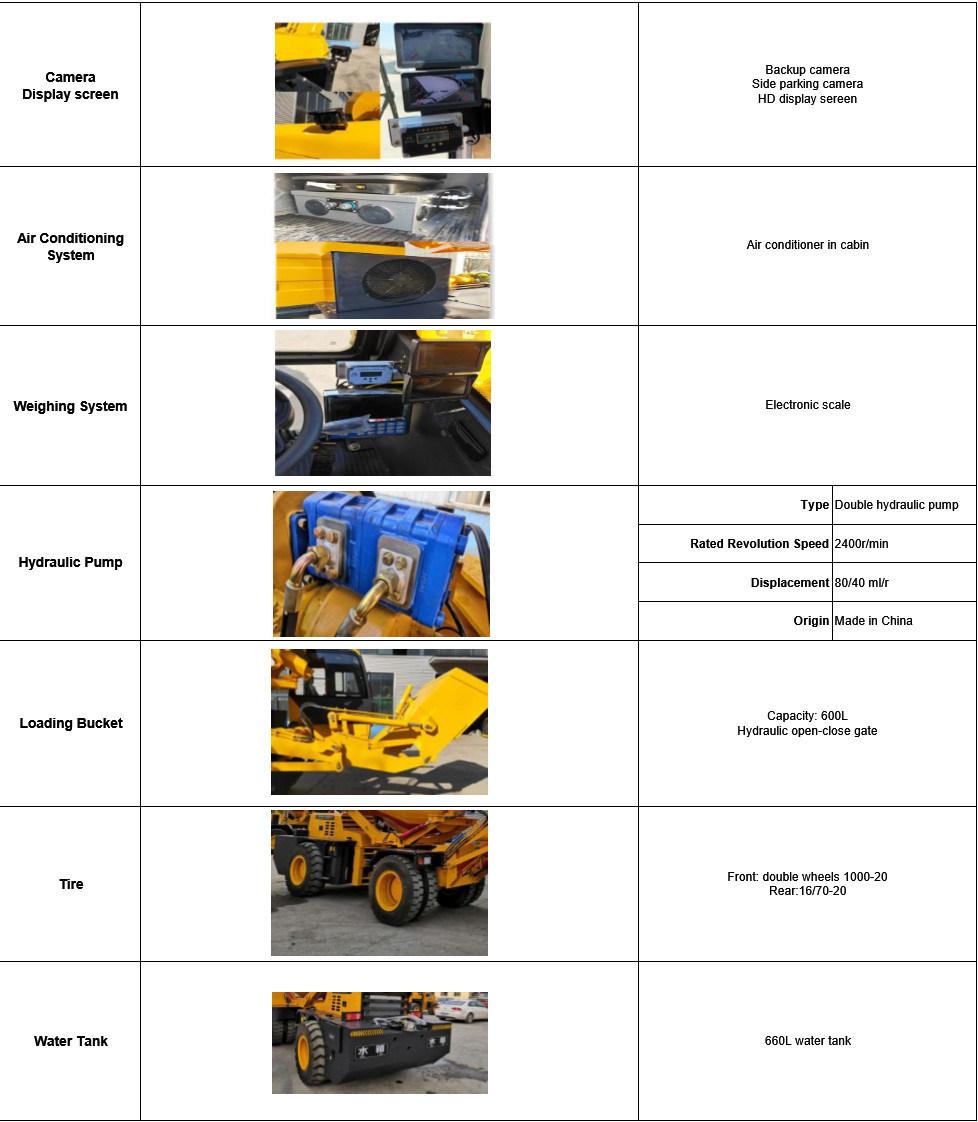

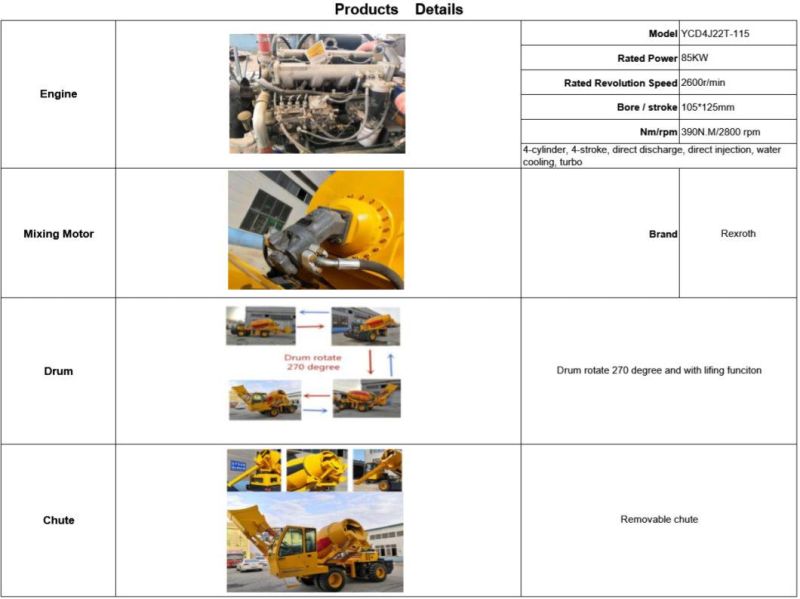

TransmissionHydraulic 4-wheel driver, 2-wheel steeringTire sizeFront: double wheels 1000-20, Rear:16/70-20Engine YUCHAI
Diesel Water-cooledRated power85kwJOYMIXOne joystick control main functionSpeed RangeHigh :0-16KM/HLow :0-8KM/H Discharge   270 ° rotationWeight 7500kgOverall dimension(L*W*H)7420*2400*2800 mmElectronic weighing systemAir conditioner in cabin



This self loading concrete mixer is used for loading,weighing, mixing, discharging and other functions, and can achieve transportation and on-site construction operations. the productivity is about 14 m3/h.
The machine adopts 4 wheels drive, can produce concrete in harsh working conditions efficient and stable.
Equip with high precision weighing system. The aggregate is weighed during the loading process to ensure that the production of concrete to meet the construction requirements.

If you would like to know more about our concrete mixer truck, please feel free to contact us :
Alex QINGDAO KONO DEERE MACHINERY CO.,LTD
