• Model NO.：ST1200
• Travel Speed：0-5km,H
• Centrifugal Force：22kn
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Product Name：Construction Machine Double Drum Vibrating Road R
• Output Power (Kw)：9.7
• Rating Speed(Rpm)：3600
• Exciting Force(Kn)：22
• Drum Size：560*800mm*2
• Weight(Kg)：1200
• Hydraulic Oil Capacity(L)：22
• Water Tank Capacity (L)：65
• Theoretical Climbing Ability(%)：30,35(Vibration on,off)
• Drive Form：Hydraulic Motors
• Vibration Frequency (Hz)：65
• Vibration Amplitude (mm)：0.5
• Water Spray Form：Intermittent Pressure Water Spray
• Working Width(mm)：930
• Overall Length(mm)：1980
• Transport Package：Wooden Box
• Trademark：Storike
• Origin：China
• HS Code：8429401900
• Production Capacity：100sets,Month

ITEM NO/DETAILSST1200ST1200CENGINE EngineBRIGGS&STRATTON  25T2/Honda GX390CHANGCHAI  192FEngine typeSingle cylinder, OHV, air-cooled, four-stroke, gasolineSingle cylinder, vertical, air-cooled, four-stroke, dieselNumber of cylinders1Output power (KW)9.78.1Rating speed(RPM)3600Fuel consupmtion(G/KWH)313320Lubricating oil volume(L)1.11.65DRIVING Electrical equipment(V)12Drive modeVariable plunge pump, stepless speed change, double-wheel series, parallel motorWalking speed (KM/H)0--5Theoretical climbing ability(%)30/35(vibration on/off)STEERING Swing angle(°)28Steering modeHydraulic cylinder, articulated steeringSteering systemSwing articulatedEXCITING SYSTEM Vibration wheelFrontDrive formHydraulic MotorsVibration frequency (HZ)65Vibration amplitude (MM)0.5Exciting force(KN)22SPRINKLING SYSTEM Water spray formIntermittent pressure water sprayCAPACITY Hydraulic oil capacity(L)22Fuel capacity(L)6.55.5Water tank capacity (L)65SIZE Working width(MM)930Overall length(MM)1980Machine height(MM)1540Turning radius(outer)(MM)3165Ground clearance(MM)245Wheel track(MM)1356Drum size560*800mm*2Drum thickness(MM)12WEIGHT Weight(KG)1200Static load(N/CM)69.5/68



Configuration:

A):Famous Brand Engine
B):USA Suaer Pistion Pump
C):Double Denmark Danfoss  Driving Motor
D):Denmark Danfoss Vibrating Motor
E):Electric Intermittent Spraying Systerm
F):Plastic Water Tank

Features:

Shandong STORIKE  has been established since 2003, specialized in road roller for 16 years. We supply road roller compactor, plate compactor, trowel machine, leveling machine, mobile light tower, road maintenance machinery, hydraulic engineering machinery , etc. We have exported more than 80 countries, mainly supply the goods to U.S.A, and we are familiar with the quality & testing of US market.

1.The machine is equipped with the brand power,brand-name quality assurance,superior performance,easy to start.

2.The machine is selected of international brand-name Hydraulic variable pump and quantitative mator,continuously variable,it can walk backward and forward.

3.It has Hydraulic steering,steering light and flexible.

4.It has completed control function,to fully control the machine running at any time.

5.It uses the Japanese-made Nsk(seiko)bearings ,to ensure the machine's performance.

6.It is installed of luxury seats,easy adjustment,comfortable work.

7.It has streamlined body design,more beautiful and generous.

8.The machine's surface is treated by spray.

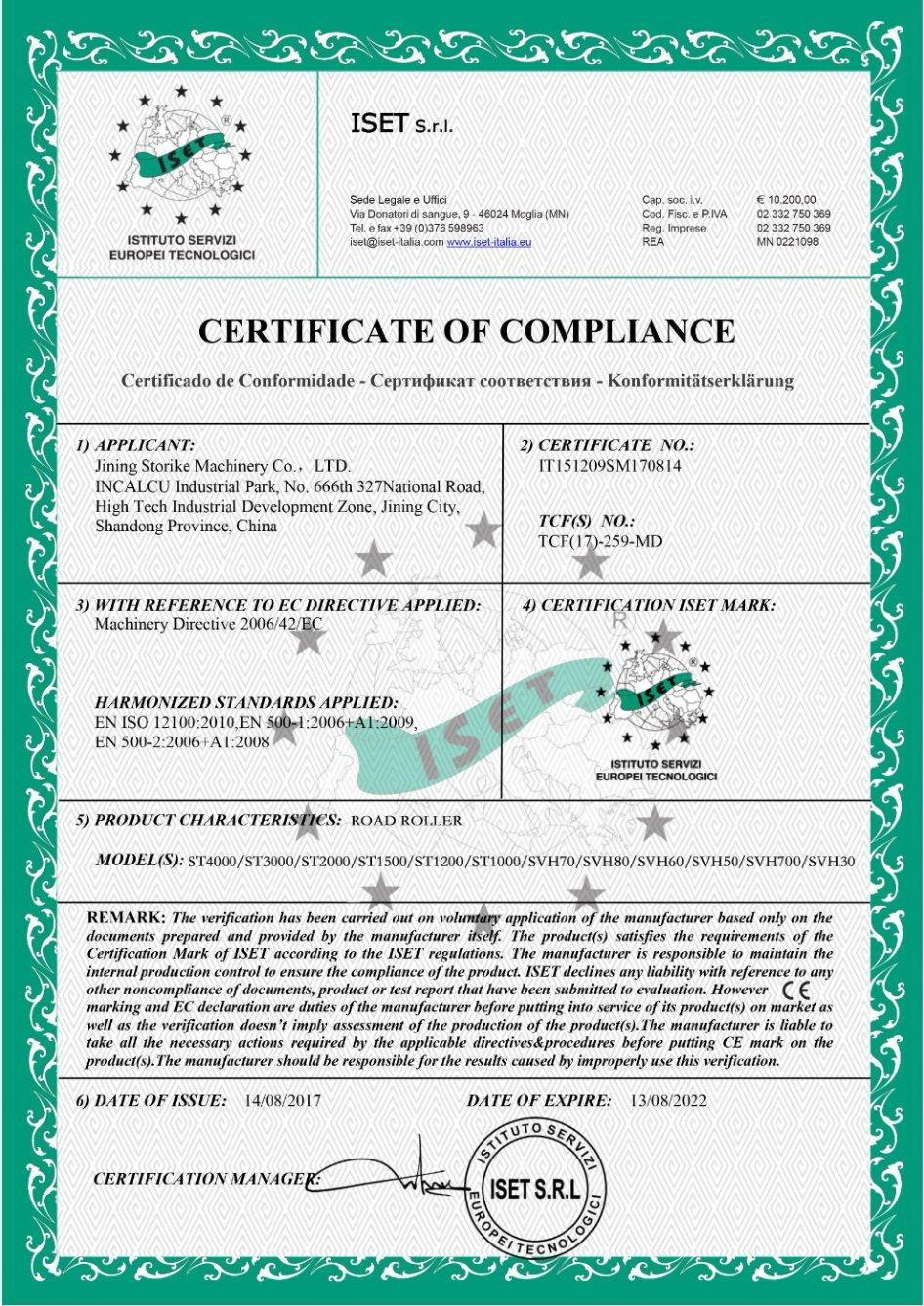

9. The product has passed CE certification.

Standard configurtion:

Variable displacement pump and fixed displacement motor

Tandem walking drive

Hydraulic articulated steering

Vibration switch on the instrument panel

Each wheel is equipped with the two blades

Gravity sprinkle system

Adjustable driver's seats

Plastic water tank

Control and warning indicators

CE certification


Company introduction


Shandong Storike Engineering Machinery Co.,Ltd. is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough and so on. Our equipment is favored by many construction companies and have a large market in China. More and more trading companies purchase equipment from our plants, so we decide to enter world market with more favorable price to shape our product brand and provide the best after-sale service. If you are interested in our machine, contact us!
