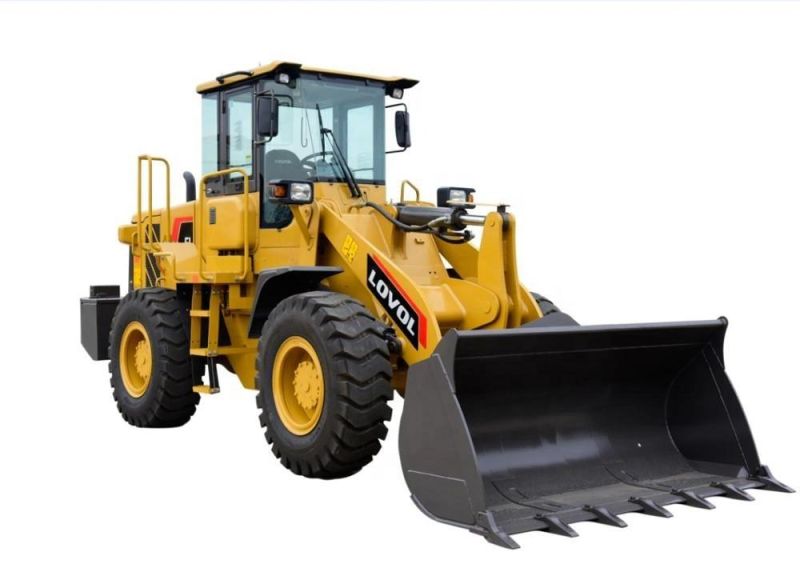

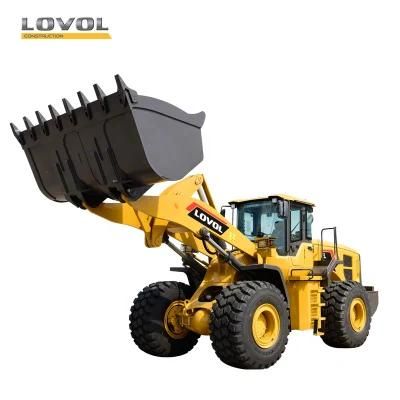

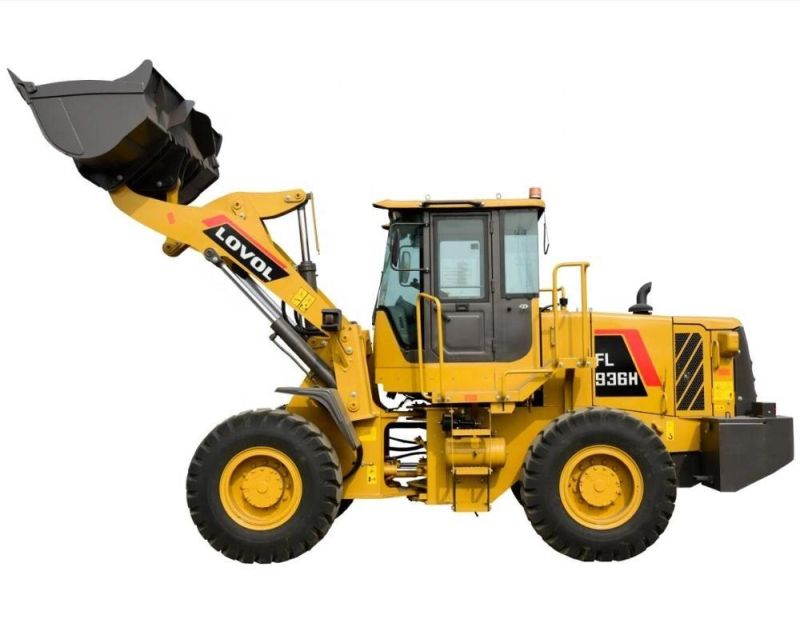

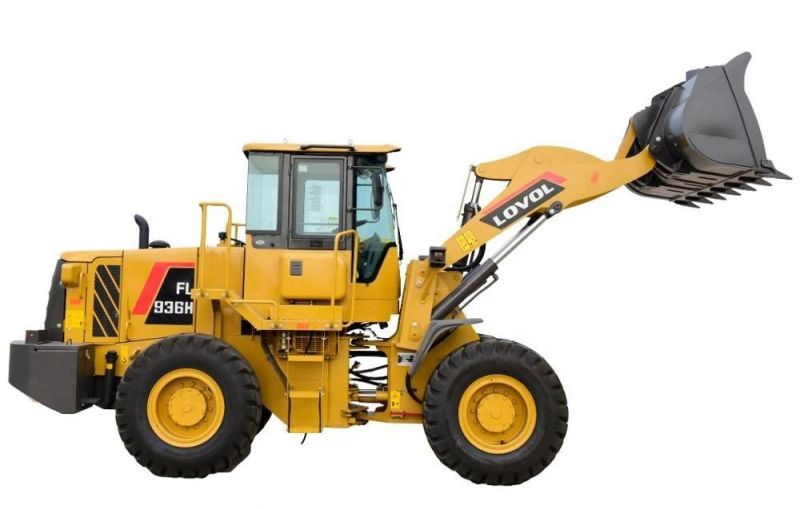

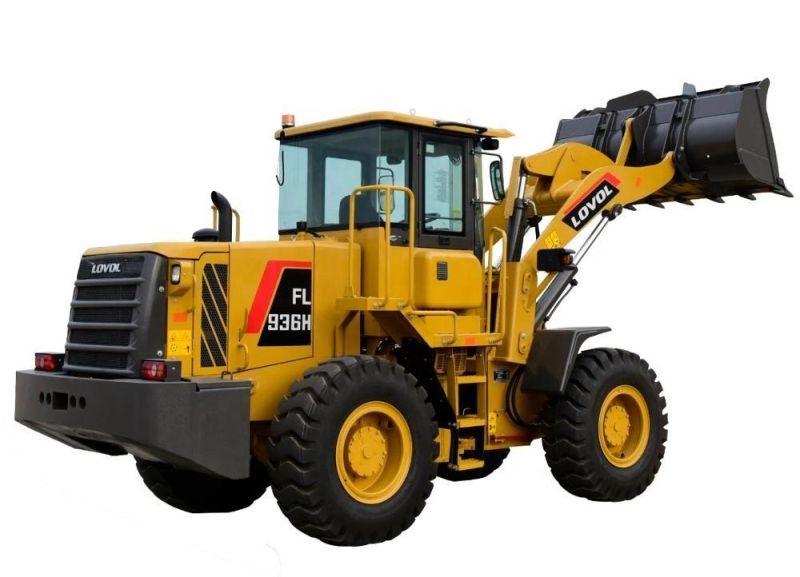

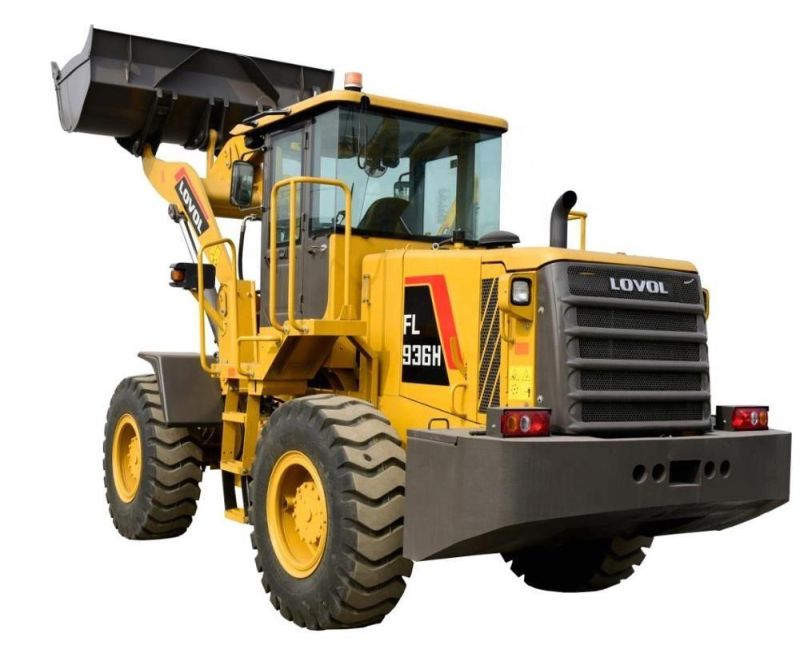

Foton Lovol 3 Ton Wheel Loader FL936h with Cummins Engine

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Field Installation, Commissioning and Training
  • Warranty：One Year
  • Certification：ISO, RoHS, CE
  • Condition：New
  • Rated Load：>9t
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：FL936H
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Rated Power：92kw
  • Transport Package：by Sea,Train,Air
  • Specification：10000kg
  • Trademark：Lovol
  • Origin：China
  • HS Code：84295100
  • Production Capacity：600,Month

Description

ParameterFL936HOperating Weight(kg)10250Bucket Capacity(m3)2Rated Load(kg)3000Max. Traction Force(kN)101Max. Breakout Force(kN)98Max. Gradeability(°)30Dumping Angel(°)45Lifting Height(mm)5000Max. Dumping Height(mm)2935Dumping Reach(mm)1100Mini. Ground Clearance(mm)340Wheel Tread(mm)1850Wheel Base(mm)2880Mini. Turning Radius of Outside Tire(mm)5990Dimension(L×W×H mm)7170X2420X3200Engine ModelWeichai
WP6G125E333Cylinder No.-Cylinder Dia.×Stroke(mm)6-105*130Max. Torque (N·m)500Rated Power(kW)92Rated Speed (rpm)2200Transmission TypeMechanical shifting planetaryNo. of GearsFront 4 back 2Max. Speed km/h 39 Front1(km/h)8.0  Front 2(km/h)13.5  Front 3(km/h)25.0  Front 4(km/h)39.0 Back1(km/h)9.5 Back 2(km/h)32.0 Back 3(km/h)/Back 4(km/h)/Tire Size17.5-25Ply rating of Tiry12Turning Angle38ºBoom Lifting Time(s)5.6Total Cycle Time(s)9.2Brake Air Pressure(Mpa)0.784Oil Tank Capacity(L)150Hydraulic Oil Tank Capacity(L)110Voltage (V)24
