Js750 Mixer for Cement Hollow Block Making Machine
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type：Concrete Mixer
- Shotcrete Type：Semi-Dry
- Machining Process：Hydraulic
- Structure：Rotor Type
- Productivity：35m²,h
- Feeding Height：1380mm
Base Info
- Model NO.：JS750
- Vibrating Amplitude：1.3mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：According to Customer Required
- Charging Capacity：1200L
- Weight：6150kg
- Mixing Blade Speed：30.5r,Min
- Water Pump Motor：0.75kw
- Reclaiming Capacity：750L
- Working Cycle Period：60s
- Aggregate Sizes：≤60,80mm
- Mixing Motor Model：Y200L-4
- Mixing Power：30kw
- Discharge Way：Pheumatic
- Transport Package：Standard Export Packing
- Specification：4550x2250x2450
- Trademark：taytone machinery
- Origin：Shandong, China
- HS Code：84743100
- Production Capacity：1000 Unit,Units Per Month
Description
*Mixer drum
Focus concrete mixers adopt European style, good-looking and wear-resistant.
*Synchronizer
Original imported from Italy to ensure the synchronous running of mixing arms.
*Mixing blades and scale boards
Adopt high-rigidity and high-tenacity wearable cast alloy steel to prolong the service time, which also is optimized torsional and bending strength of our concrete mixer.
*Axle-end seal
Adopt original-imported parts installation to avoid cement and slurry enter in shaft-head so that extending the service life of concrete mixer.
*Observation windows
Full width access hatch allows easy access; Includes high security positive disconnect lock.
*Reducer
Reducer and oil sealing system is made by Italian BONFILIOLI, they are designed for FOCUS concrete mixer, features for long service life, lower noise and oil tightness.
*Discharging system
Hydraulic discharging system; Strong driving force, discharging smoothly; Discharging gate of the concrete mixers adopt disassemble structure, easy for reparation, the gate could be opened at each standpoint; A manual lever allows the gate to be opened in case power lost.
*Electric lubricating pump
Supplying oil to four axle-end respectively with four pump cores, without by-pass valve.
*Four-layers sealing technology
The concrete mixer applies reliable axial seal and all sealing parts are easy to be replaced, also suitable for bad work conditions for daily maintenance.

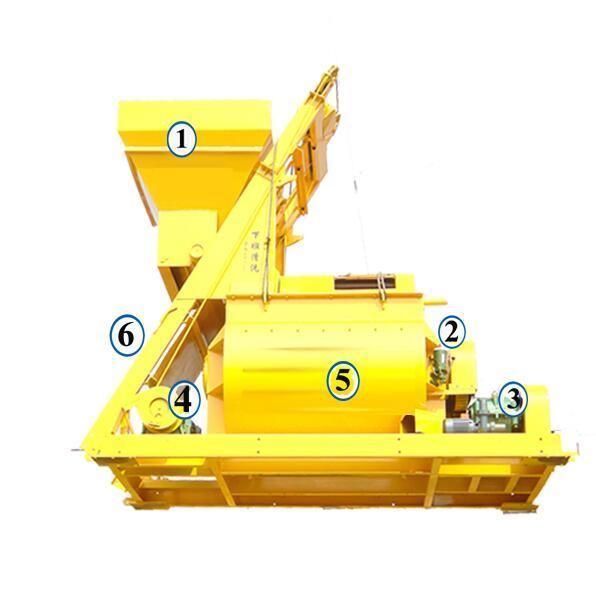

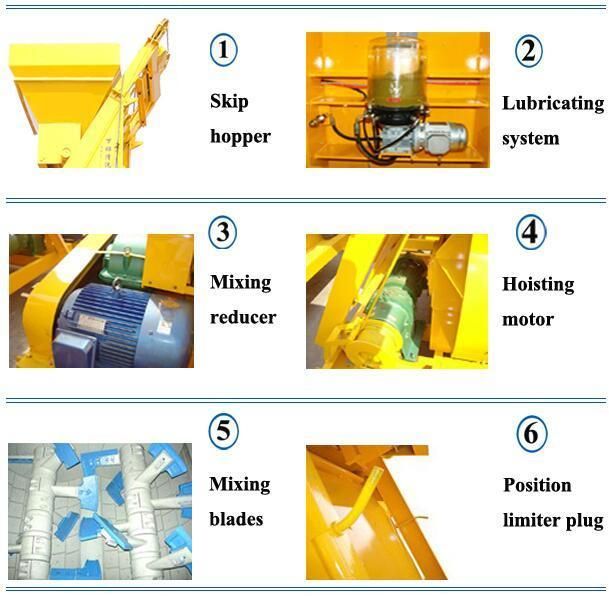

Product Breakdown Structure
