Chinese 4m3 Bucket Capacity Sy700h 72ton Excavator
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SY700H
- Drive Type：Electric Drive
- Bucket Capacity：>1.5m³
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Rated Power：310,1800 Kw,Rpm
- Operating Weight：72000 Kg
- Max. Digging Height：11653mm
- Max. Digging Depth：7152mm
- Transport Package：Nude
- Specification：CE
- Trademark：SINOMADA
- Origin：China
- HS Code：84295212
- Production Capacity：1000 Units, Month
Description
Model
SY700H-8
A transport length
12000mm
B transport width
3440mm
C transport height
4770mm
D Upperstructure width
3360mm
E Cab Height
3700mm
F Std. Track shoe width
750mm
G track gauge
2690mm
H Min. Ground clearance
875mm
I Tail swing radius
3980mm
J Length to centers of rollers
4660mm
K track length
5870mm
a Max. Digging height
11655mm
b Max. Dumping height
11375mm
c Max. Digging depth
7150mm
d Max. Vertical wall digging depth
5130mm
e Max. Digging reach
11350mm
f Min. Swing radius
5060mm
g Max. Height at min. Swing radius
7335mm
Operating weight
72000kg
Std. Bucket capacity
3.5-4.5m3
Rated power
310kw1800rpm
Travel speed
4.5/3.1km/h
Swing speed
6.7rpm
Gradeability
35 70%
Ground press
89.5kPa
Bucket digging ability
356kN
Arm Digging Force
273kN

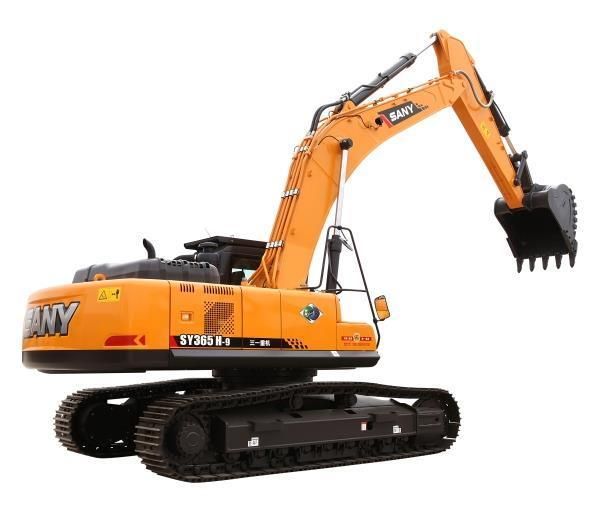

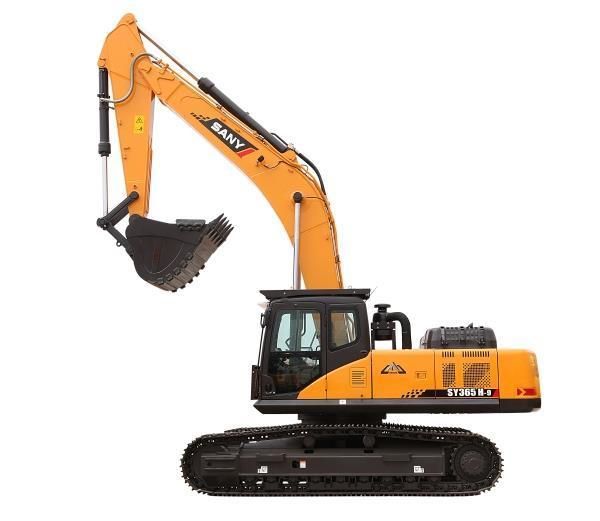

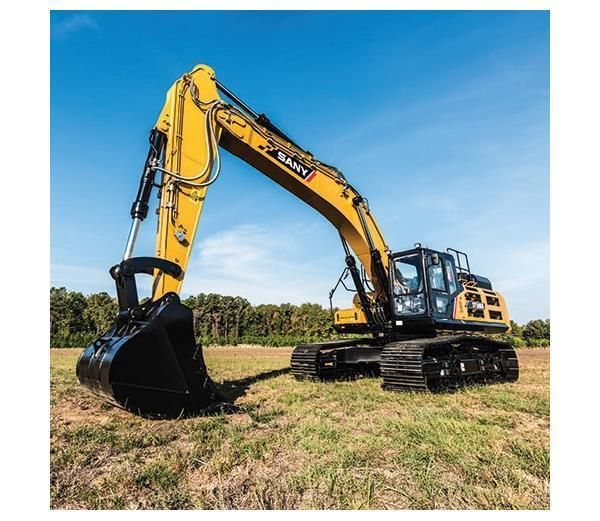

Picture:
