• Model NO.：SWR208H
• Working Method：Vibration
• Axle：Single Drum
• Grinding Wheel Type：Smooth Drum
• Compaction Depth：40cm
• Engine Type：Diesel Engine
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Weight：8 Ton
• Drum Width：1600 mm
• Drum Dia.：1200 mm
• Tire Size：12.00-24
• Transmission：Hydraulic
• Gradeability：30%
• Ground Clearance：275mm
• Transport Package：Naked
• Specification：ISO2008
• Trademark：Sinoway
• Origin：China
• HS Code：84314990
• Production Capacity：300 PCS,Month
• Package size per unit product：480.00cm * 176.00cm * 265.00cm
• Gross weight per unit product：7800.000kg

Basic Info.

Model NO. SWR208H Working Method Vibration Axle Single Drum Grinding Wheel Type Smooth Drum Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 40cm/s Centrifugal Force 40KN Certification ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight 8 Ton Drum Width 1600 mm Drum Dia. 1200 mm Tire Size 12.00-24 Transmission Hydraulic Gradeability 30% Ground Clearance 275mm Transport Package Naked Specification ISO2008 Trademark Sinoway Origin China HS Code 84314990 Production Capacity 300 PCS/Month

Packaging & Delivery

Package size per unit product 480.00cm * 176.00cm * 265.00cm Gross weight per unit product 7800.000kg

Product Description

SWR208H is a 8 ton HYDRAULIC drive and hydraulic vibration roller with single steel wheel, Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.

Advantage
1.Hydraulic transmission, front wheel hydraulic vibration, hydraulic steering
2. Using small round edge bridge, stable quality, reliable performance, the main clutch and brakes using oil oil power manipulation, lightweight flexible, safe and reliable
3. Handle adopt mechanical composite manipulation, concise and comfortable
4. To adopt BAUMACH engine, satisfies the requirement of China standard emission, low fuel consumption, performance is good; Engine and transmission directly connected, compact structure
5. Has reliable performance and optimum function/price ratio

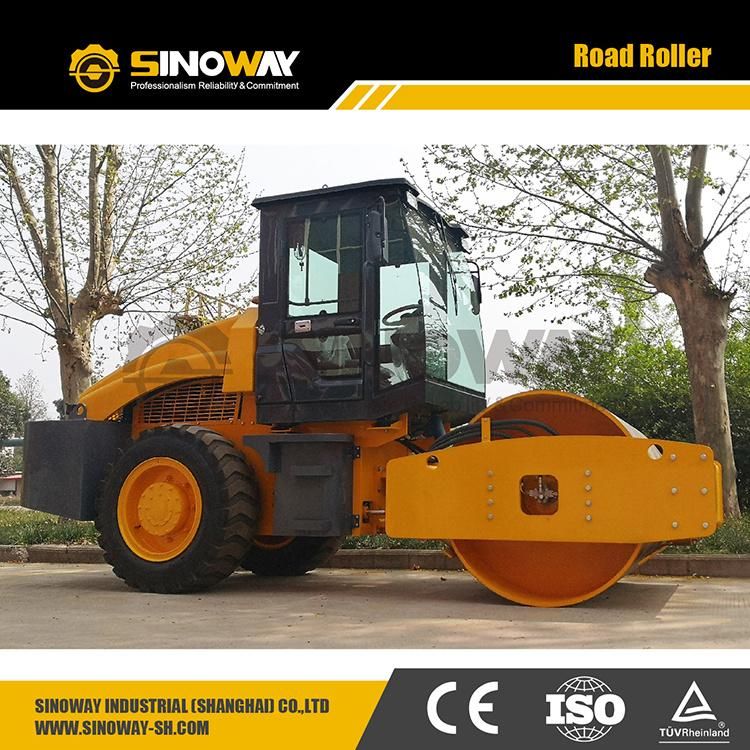

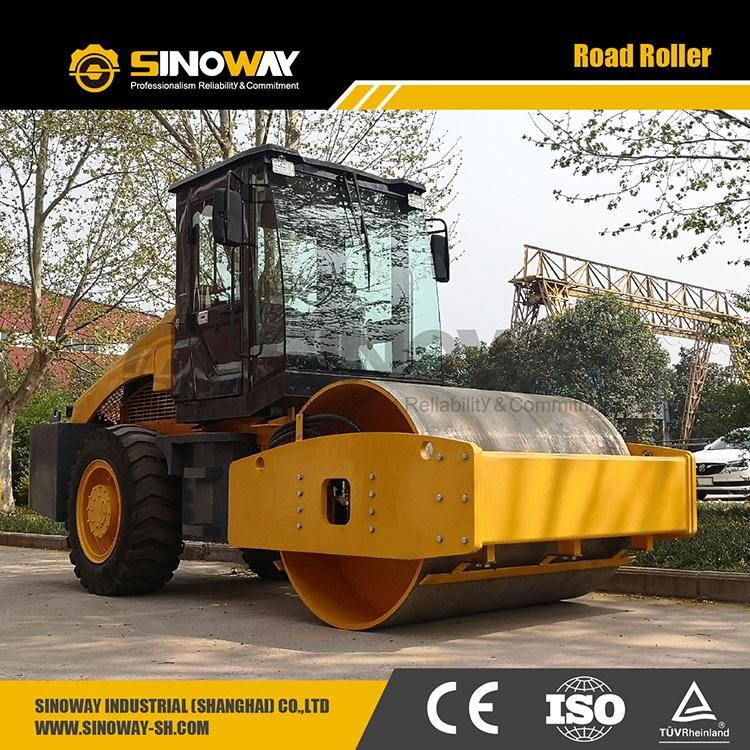

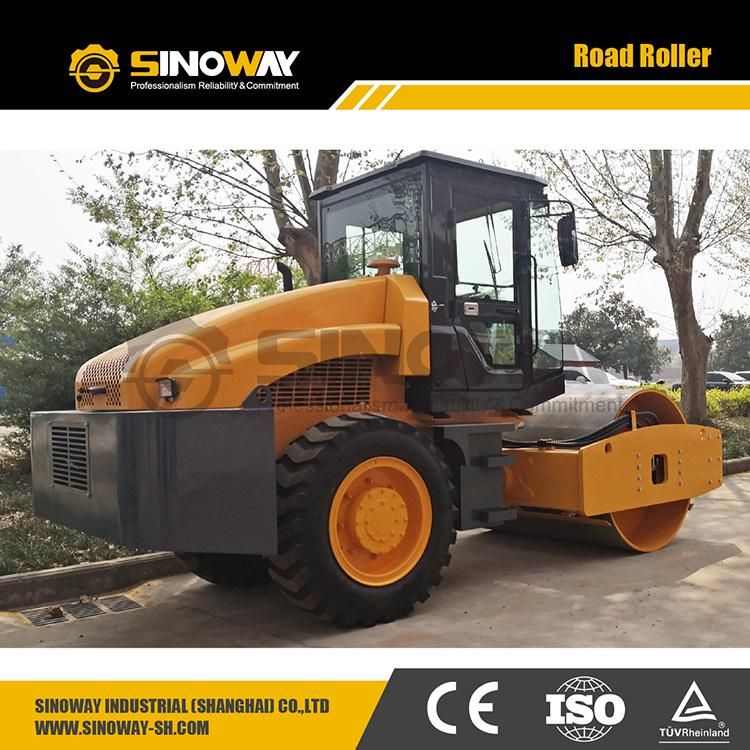

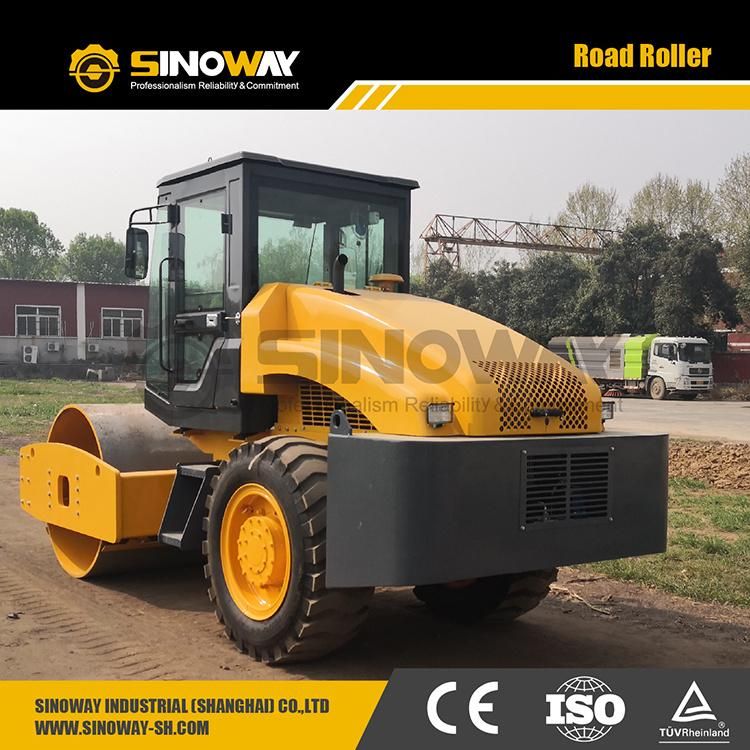

Product Show

Specifications

Operating weight	7.8 ton
Engine power	58.8kw
Static linear load	225N/cm
Frequency	50Hz
Centrifugal force	120kN
Travelling speed (F&R)	0-9.2km
Grade ability	30%
Min. turning radius	5510mm
Drum width	1600mm
Drum Dia.	1200mm
Wheel base	2580mm
Overall dimension	4800x1765x2645 mm
