• Model NO.：G04K
• Condition：New
• Color：White
• Power：140 Kw
• Weight：6905kg
• Geometric Volume：7.7cbm
• Drum Length：3595mm
• Volume of Water Tank：450L
• Rotary Speed：0~14r,Min
• Max. Diameter of Drum：1980mm
• Specification：7270*2280*3345mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000

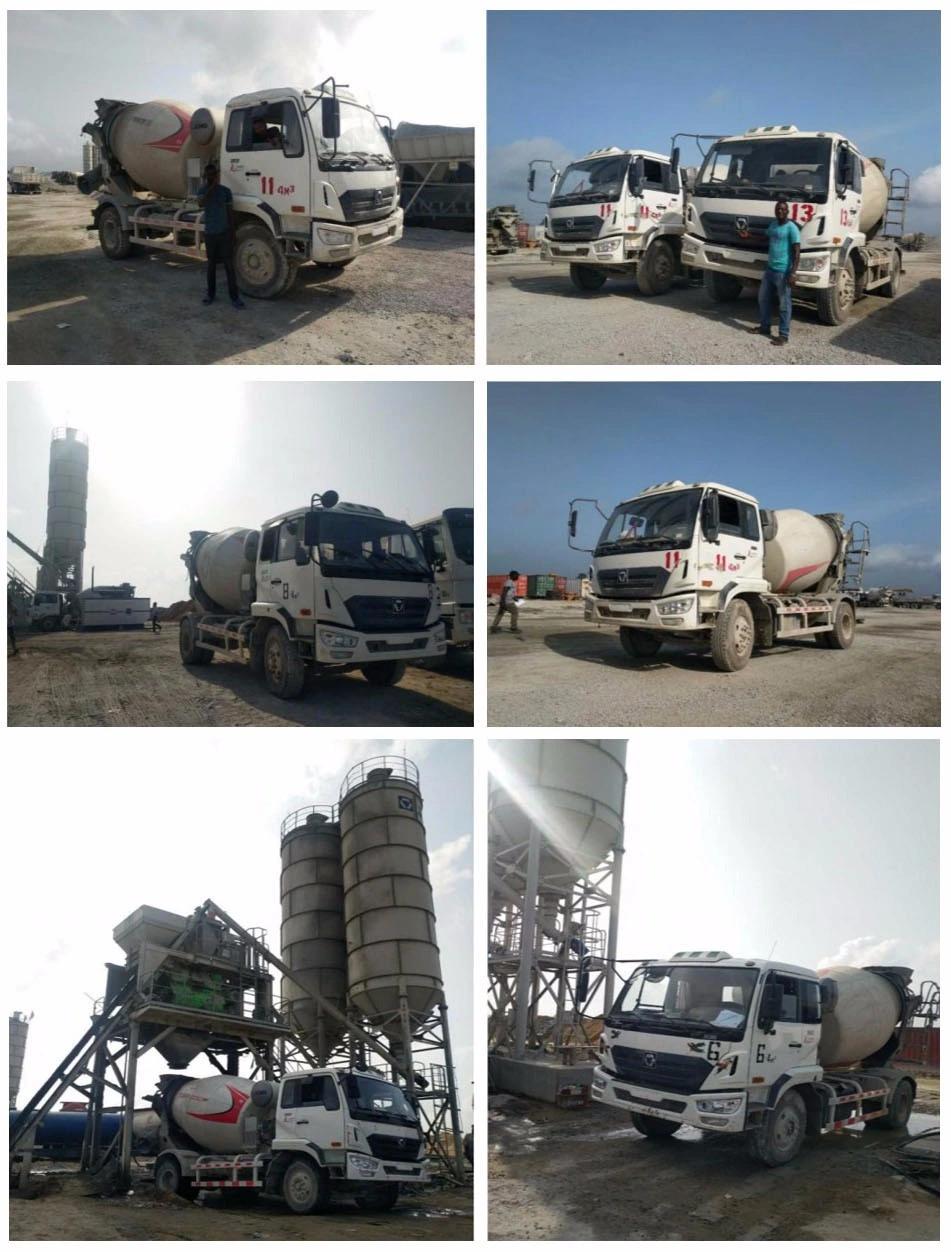

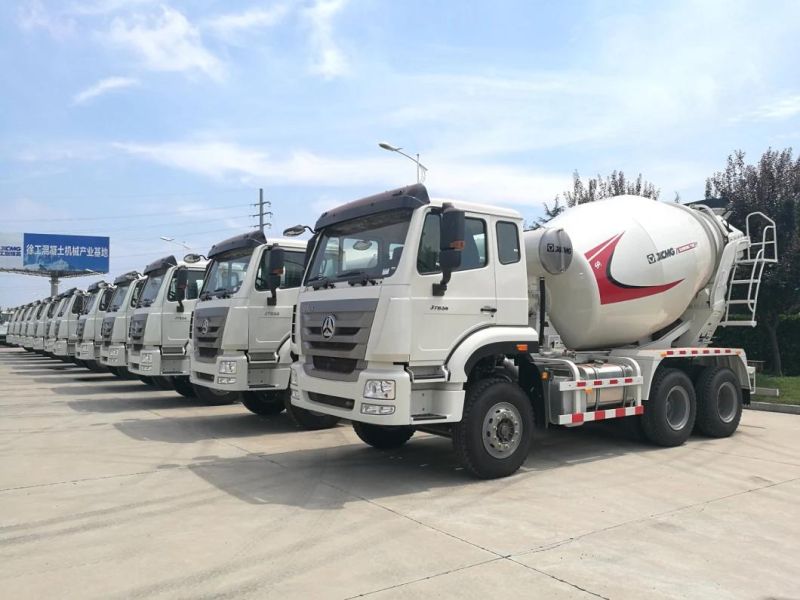

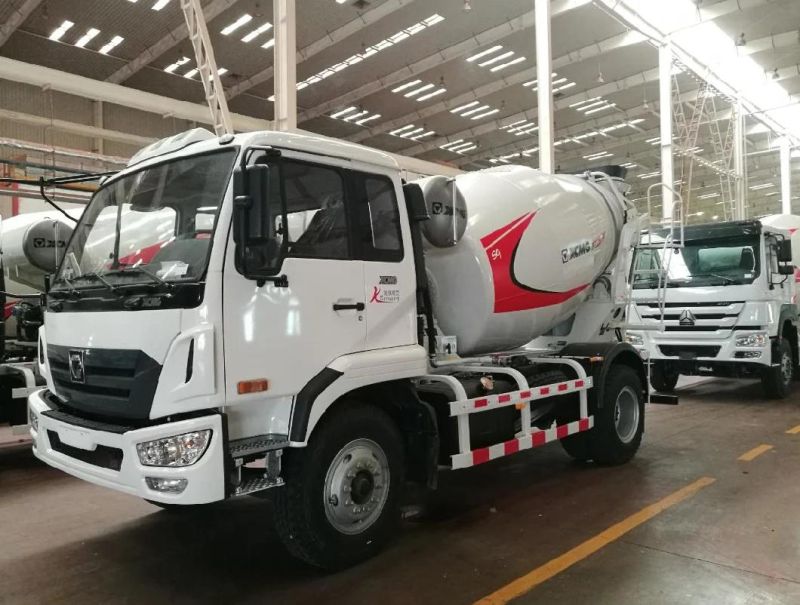

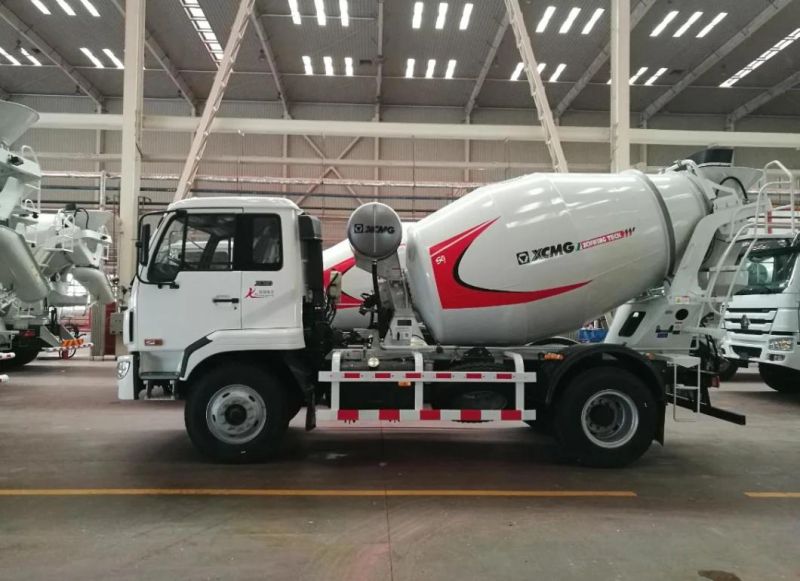

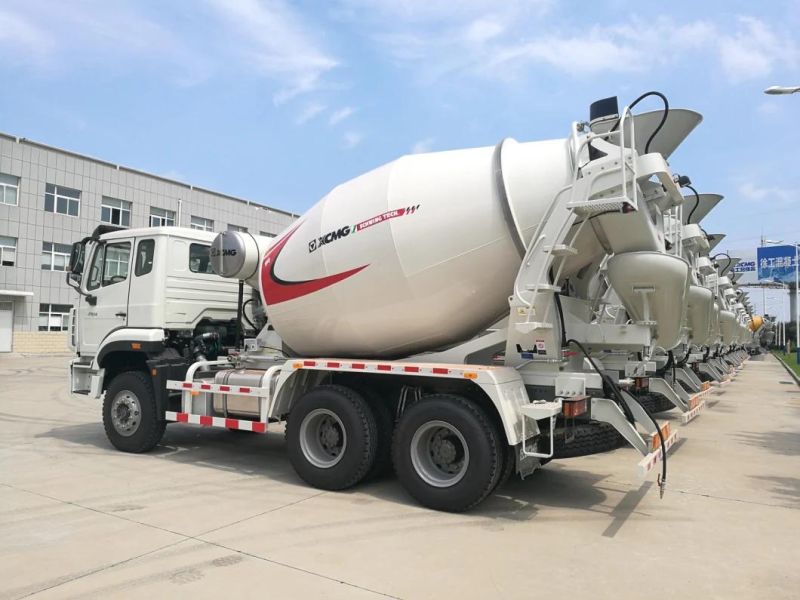

Overview Product ParametersCatagoryItemUnitParameterOverall ParameterModel G04K Curb weightkg6905Max.total weightkg16000Outline dimension(L×W×H) mm7270×2280×3345ChassisChassis brand XCMGChassis model NXG3160D3AZAXSteering position LHD Driving type 4×2Wheel base mm3800Tire 10.00R20Power take-off FlywheelEngineModel YC6J190-33Max.powerkW140DisplacementL6.494Emission standard Euro EuroDrum systemGeometric volumem3 7.7Agitating volumem3 4 Max.diameter of drum mm1980Mixing drum length mm3595Slanting angle°15Rotating speedr/min0~14Feeding speedm3/min≥ 3Discharge speedm3/min≥ 2Discharge residual rate %< 0.4Slump scopemm50~210Detailed Photos
