Construction Concrete Demolition Hammer
Yantai Chengtai Construction Machinery Co., Ltd.- Type:Hydraulic Breaker
- Application:Excavator
- Certification:CE, SGS BV
- Condition:New
- Color:Any
- MOQ:1
Base Info
- Model NO.:CTHB50
- Delivery:15 Days
- Warranty:12 Month
- Payment:Tt
- Material:20 Crmo
- OEM:Yes
- Transport Package:Plywood
- Trademark:Chengtai
- Origin:Yantai China
- Production Capacity:3000
Description
Basic Info.
Model NO. CTHB50 Delivery 15 Days Warranty 12 Month Payment Tt Material 20 Crmo OEM Yes Transport Package Plywood Trademark Chengtai Origin Yantai China Production Capacity 3000Product Description

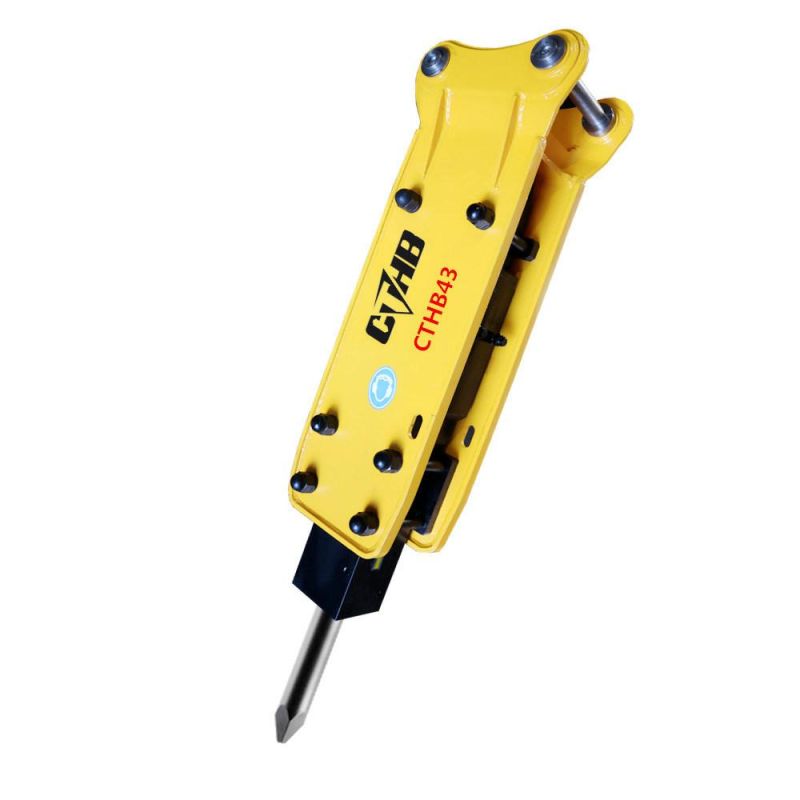

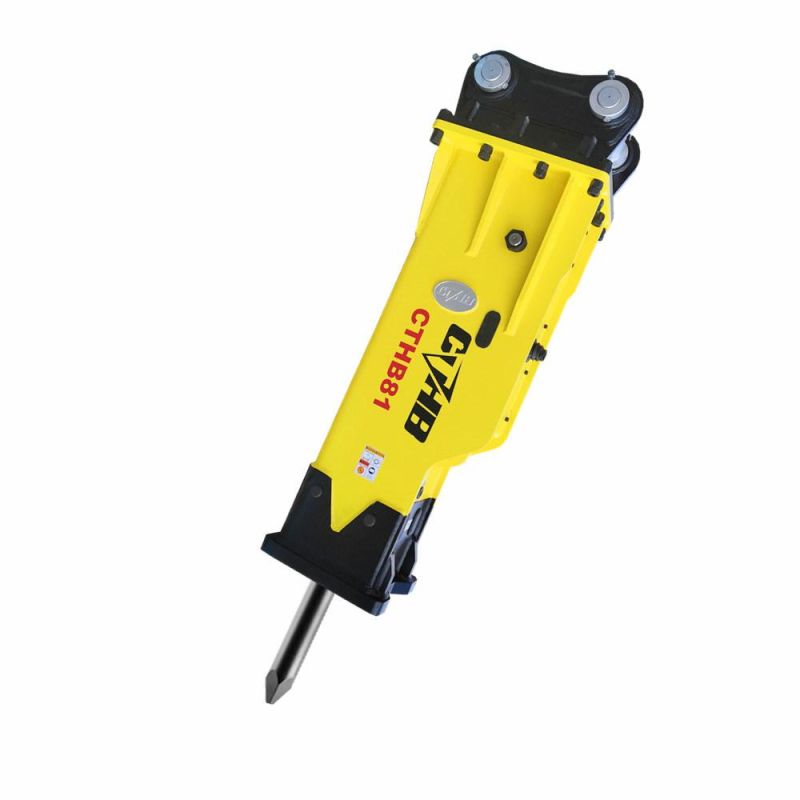

1.Products photo2.How to choose breaker according your excavator
Excavator (loader)weight | Excavator (loader)Brand | Suit breaker model | Chisel diameter |
0.8-2.5Ton | Any Brand | CTHB10 | 40mm |
1.2-3Ton | Any Brand | CTHB20 | 45mm |
2.5-4.5Ton | Any Brand | CTHB30 | 53mm |
4-7Ton | Any Brand | CTHB40 | 68mm |
6-9Ton | Any Brand | CTHB43 | 75mm |
7-14Ton | Any Brand | CTHB45 | 85mm |
10-15Ton | Any Brand | CTHB50 | 100mm |
18-26Ton | Any Brand | CTHB81 | 140mm |
28-35Ton | Any Brand | CTHB121 | 155mm |
30-45Ton | Any Brand | CTHB131 | 165mm |
30-50Ton | Any Brand | CTHB140 | 165mm |
35-45Ton | Any Brand | CTHB151 | 175mm |
40-55Ton | Any Brand | CTHB151F | 175mm |
45-55Ton | Any Brand | CTHB190 | 190mm |

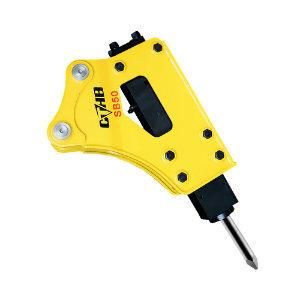

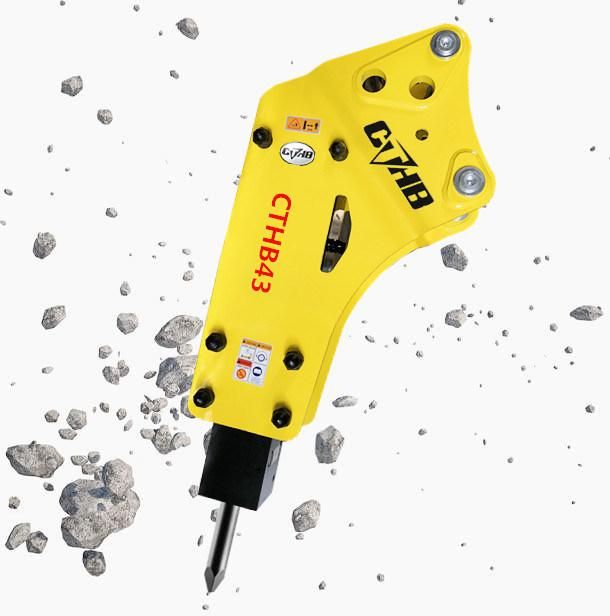

3.Different type of hydraulic breaker
Type | Picture | Advantage |
Side type | Reducing total-length more convenience to handle the breaking object easy maintenance | |
Top type/Open type | Easy control and easy-position make it more convenience to excavator . Without side-weight ,reducing the rute of chisel breakage Longer total-length and heavier total-weight | |
Silenced/Box type | Low noise level Full-closed bracket protects the main-body from damage | |
Backhoe loader type | Suit for backhoe loader carrier | |

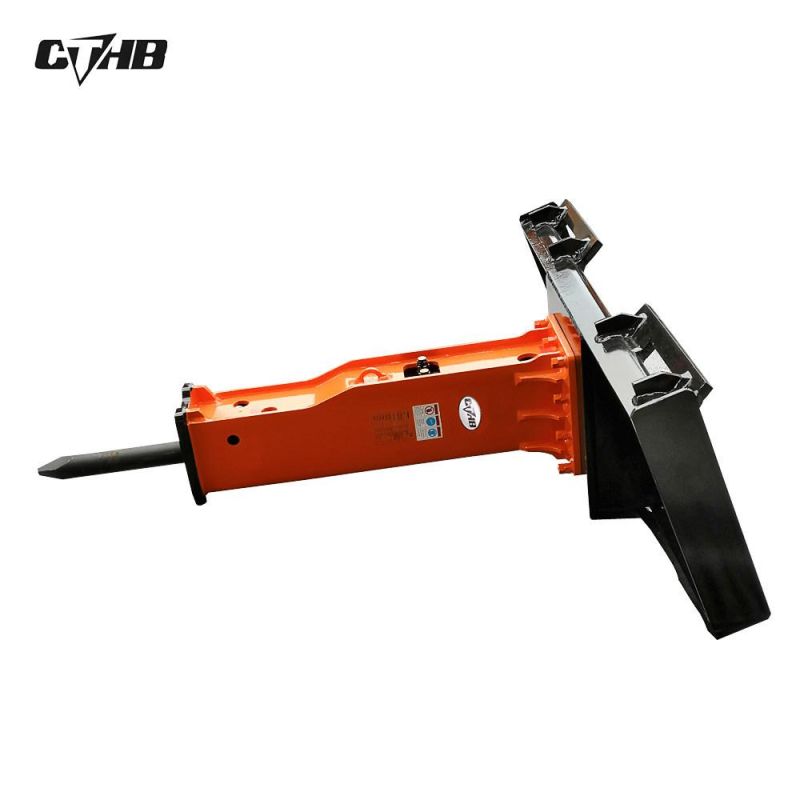

Skid steer loader type | Suit for skid steer loader |
4.Products parameters
Items | Unit | CTHB20 | CTHB30 | CTHB40 | CTHB43 | CTHB50 | CTHB70 | CTHB81 | CTHB121 |
Body weight (incl. chisel) | kg | 71 | 89 | 156 | 214 | 479 | 850 | 920 | 1313 |
Total weight | kg | 95 | 158 | 263 | 334 | 761 | 1658 | 2004 | 2968 |
Size (L*W*H) | mm | 1090*215*435 | 1178*230*500 | 1373*295*772 | 1515*295*735 | 1900*390*910 | 2423*500*1202 | 2480*590*1335 | 2776*590*1382 |
Hydraulic oil flow | l/min | 20~30 | 25~50 | 40~70 | 50~90 | 80~110 | 130~150 | 120~180 | 180~240 |
Hydraulic pressure | kg/cm2 | 90~120 | 90~120 | 110~140 | 120~150 | 150~170 | 160~180 | 160~180 | 160~180 |
Blow frequency | bmp | 700~1200 | 600~1100 | 500~900 | 400~800 | 350-700 | 350~600 | 350~500 | 300~450 |
Chisel diameter | mm | 45 | 53 | 68 | 75 | 100 | 135 | 140 | 155 |
Carrier weight | ton | 1.2~3.0 | 2.5~4.5 | 4~7 | 6~9 | 10~15 | CTHB70 | CTHB81 | 28-35 |

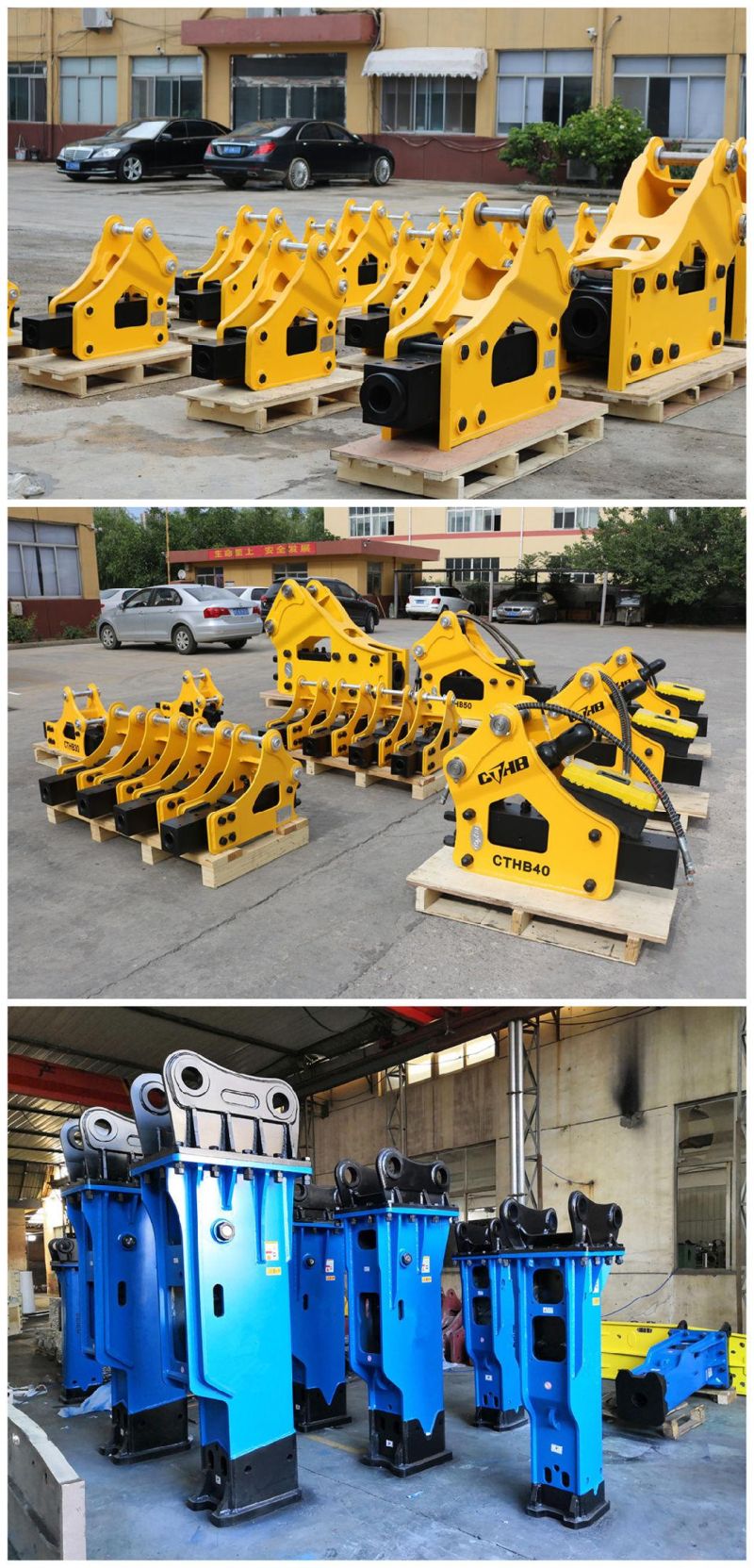

5.Our factory
6.Our exhibition
7.Our certificate
8.Packing &Spare parts &delivery
Hydraulic Breaker Standard Accessories as follows:
1) Chisel × 2 pcs
2) Hydraulic oil Hose × 2 pcs
3) General Tool with Tool Box × 1 set
4) Manual Book in English × 1 pc
5) Nitrogen Gas Charging Kit with Hose & Gas Cylinder × 1 set
Packing
1. Standard export package by poly-wood case
2. Loading port from Qingdao or any port of China
After-service
1. 14 months warranty after delivery
2. Enough stock for wear parts
3. Competitive maintenance cost
4. High efficiency after-service respone
