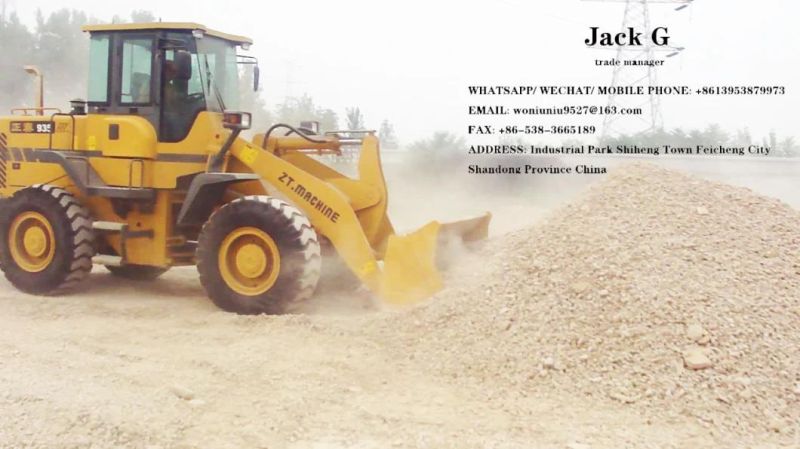

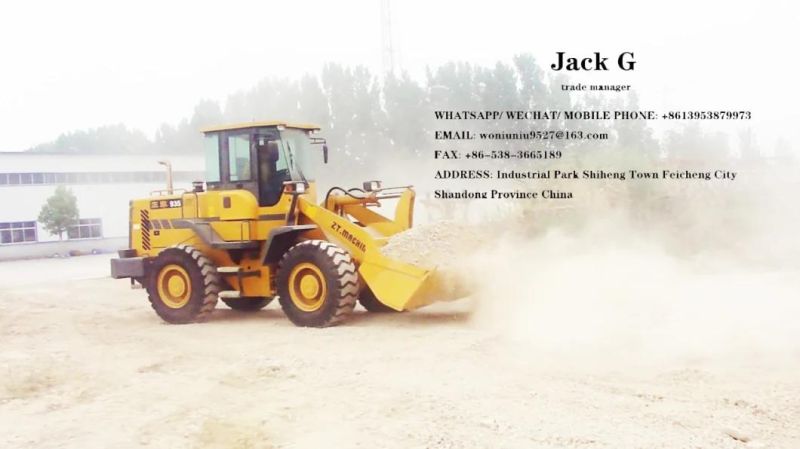

China High Function and High Efficiency 3 Ton Wheel Loader Long Power Engine Loader Pump Technical Diesel Loade Rpower (W) 92 Kw
Taian Zhengtai Construction Machinery Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Type：Small Loader
- Standard Bucket：1.7cbm
- Max.Dump Height(mm)：3150mm
- Operating Weight：9600kg
- Max.Dump Reach(mm)：1150mm
- Tyre Specification：17.5-25
- Min Turning Radius (mm)：4800mm
- Wheel Base(mm)：2580mm
- Tread(mm)：1870mm
- Transport Package：Nude
- Specification：7000× 2430 × 3060mm
- Trademark：ZTMACHINE
- Origin：China
- HS Code：842951000
- Production Capacity：30
Description
Basic Info.
Type Small Loader Standard Bucket 1.7cbm Max.Dump Height(mm) 3150mm Operating Weight 9600kg Max.Dump Reach(mm) 1150mm Tyre Specification 17.5-25 Min Turning Radius (mm) 4800mm Wheel Base(mm) 2580mm Tread(mm) 1870mm Transport Package Nude Specification 7000× 2430 × 3060mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30Product Description
| Description | Specification |
| Rated load(kg) | 3000 |
| standard bucket capacity(m³) | 1.7 |
| operating weight(kg) | 9600 |
| Max.breakout force(kN) | 110 |
| Max.dump height(MM) | 3150 |
| Max.dump reach(MM) | 1150 |
| Discharging Angle(°) | 45 |
| Max.grade ability(°) | 30 |
| Automatic leveling ability | Yes |
| Lifting time(s) | ≤5.6 |
| Total cycle time(lifting, dumping, lowering)(s) | ≤10 |
| steering angle(°) | 35 |
| Min turning radius(MM) | 4800 |
| Wheel base(MM) | 2580 |
| Tread(MM) | 1870 |
| Min.ground clearance(MM) | 417 |
| Overall dimensions (l×w×h)mm(MM) | 7000×2430×3060 |
| travel speed(km/h) | |
| Forward gear I | 0~6.8 |
| II | 0~12 |
| III | 0~23 |
| IV | 0~35 |
| reverse gear I | 0~8.5 |
| II | 0~27 |
| Engine Model | Cummins 6BT5.9-C125-II |
| Type | In line, water cooled, four stroke, dir.inject |
| Rated power(kW) | 92 |
| Rated speed(rpm) | 2200 |
| acrot orque(N·m) | 480 |
| Brake system | |
| Service brake | Gas-liquid caliper disc brake |
| Parking brake | Control with brake manual gas |

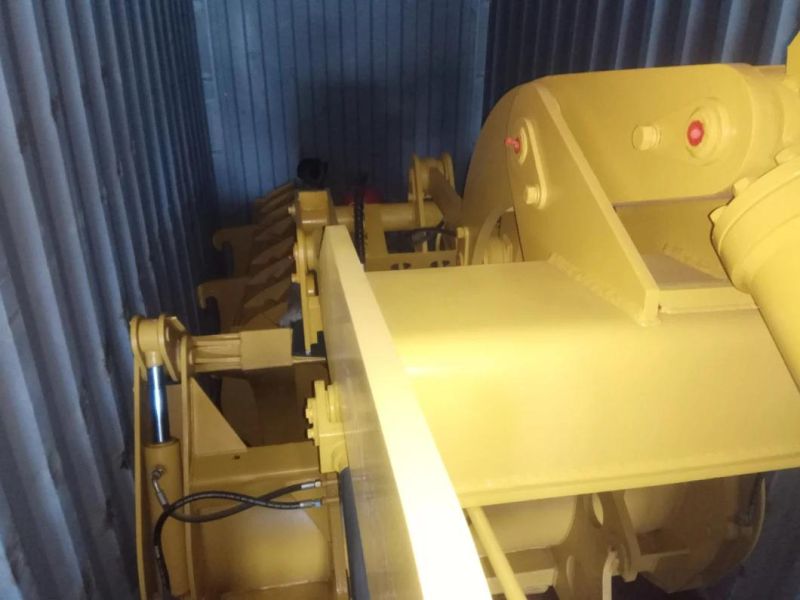

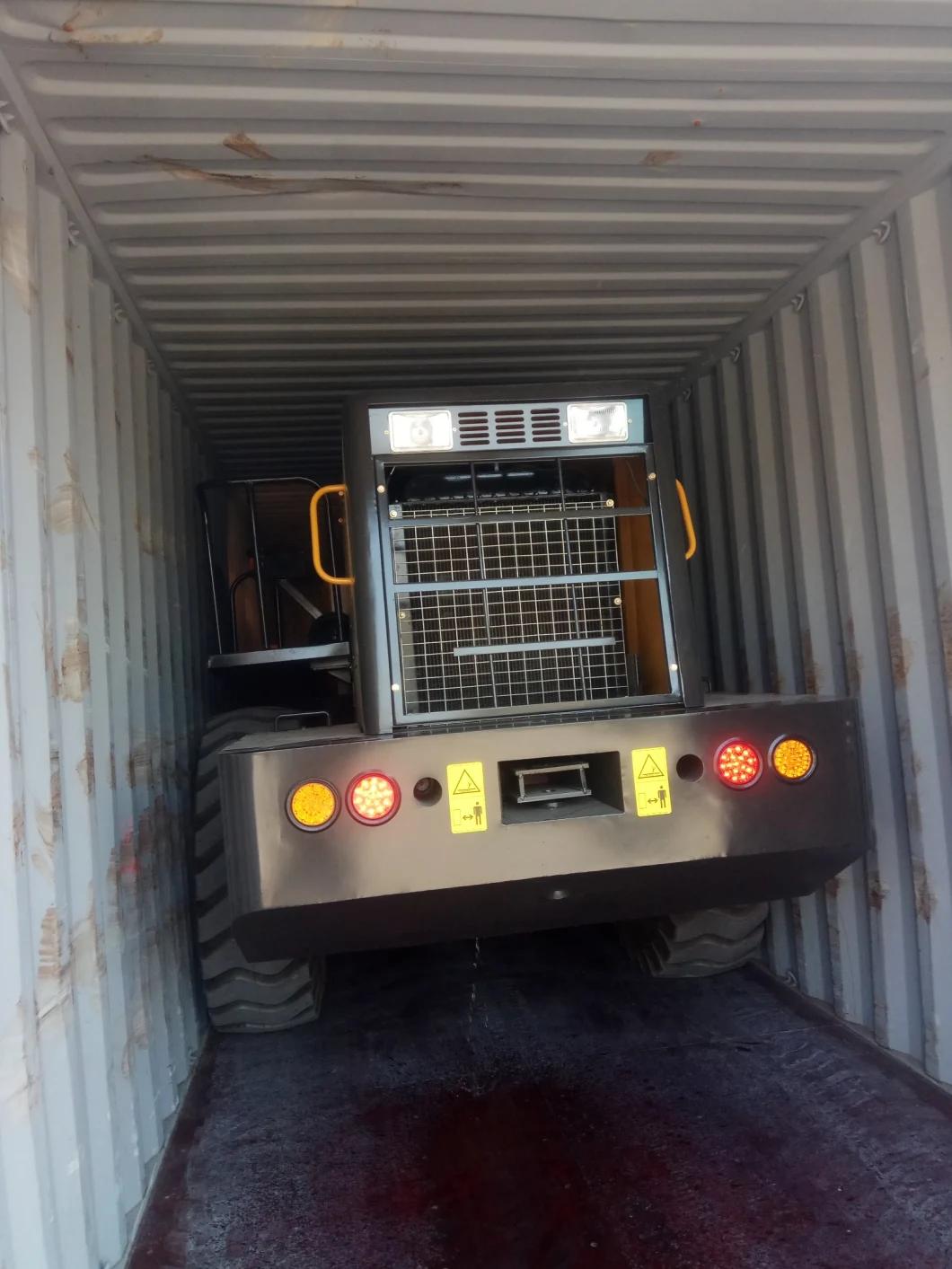

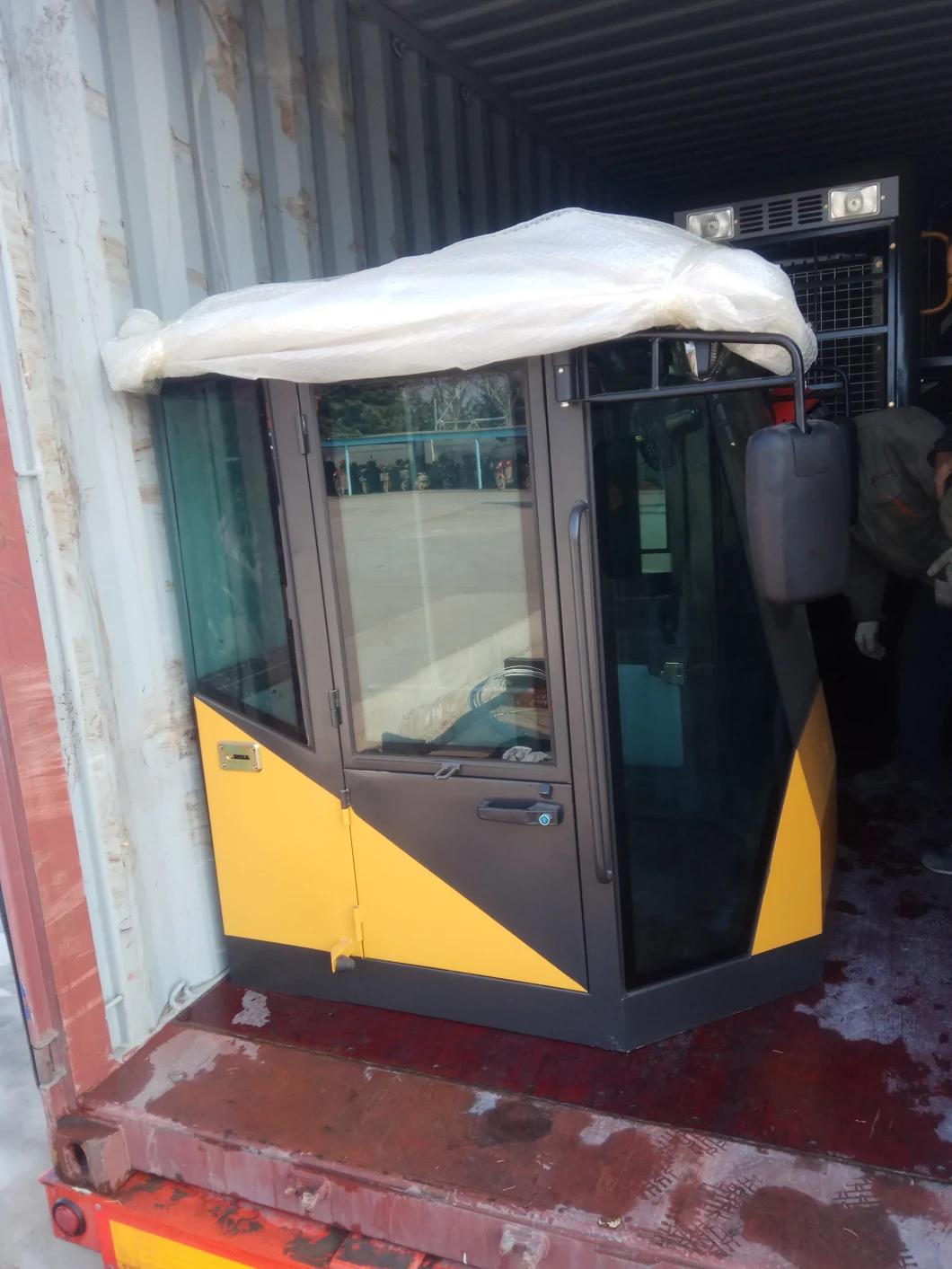

Packing & Delivery
Container 40GP 1 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
Client visit

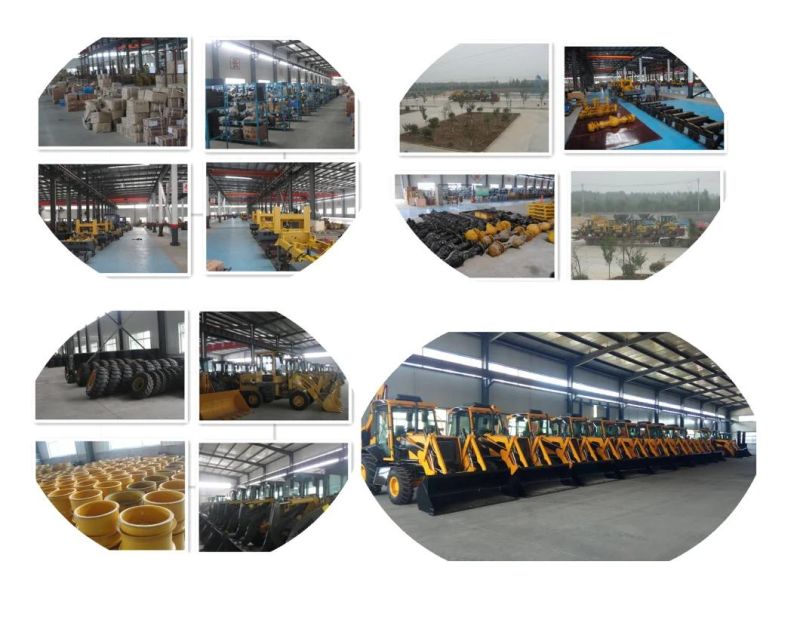

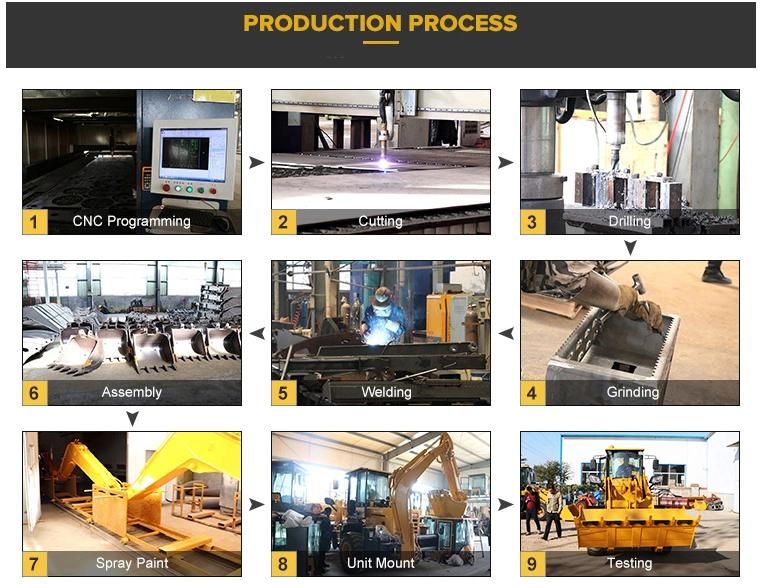

production line
