• Model NO.：450x86x56
• Material：Rubber and Steel
• Width：450mm
• Pitch：86mm
• Links：56
• Weight：4816,
• Delivery Time：15 to 25 Days
• Transport Package：Bare Packing or Wooden Pallet
• Specification：450x86x56
• Trademark：POOYERT
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 450x86x56 Material Rubber and Steel Width 450mm Pitch 86mm Links 56 Weight 4816, Delivery Time 15 to 25 Days Transport Package Bare Packing or Wooden Pallet Specification 450x86x56 Trademark POOYERT Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/Month

Product Description

Product Description

450x86x56 rubber track for JCB 320T/  MC110
1.Product Information


1.Name of commodity	Rubber Track 450*86*56
2.Width	450mm
3.Pitch	86mm
4.Links	56
5.Total Length	4816mm
6.Weight	230.00kg
7.Material	Rubber & Steel
8.Steel cord type	Continuous inner steel cord with joint free
9.Warranty	Guarantee one year under normal use

2.Application
Rubber track with size 450mm wide, 86mm pitch and 56 links, can be applied on the construction machinery as follow:


Model	Original Size	POOYERT Size1	Roller
1020	450x86x56	450x86x56B	A2
CK1122	450x86x56	450x86x56B	A2
CK1122-5	450x86x56	450x86x56B	A2
CK30	450x86x56	450x86x56B	A2
CK30.1	450x86x56	450x86x56B	A2
CK35	450x86x56	450x86x56B	A2
CK35.1	450x86x56	450x86x56B	A2
279D	450X86X56	450x86x56B	A2
289D	450X86X56	450x86x56B	A2
5640E	450x86x56	450x86x56B	A2
RT210	450X86X56	450x86x56	A2
CL45	450X86X56	450x86x56B	A2
CL45	450x86x56	n.a.
225T ECO	450x86x56	450x86x56B	A2
260T ECO	450x86x56	450x86x56B	A2
300T ECO	450x86x56	450x86x56B	A2
320T	450x86x56	450x86x56B	A2
2100RT	450x86x56	450x86x56B	A2
1101CP	450x86x56	450x86x56B	A2
MC110	450x86x56	450x86x56B	A2
MC90	450x86x56	450x86x56	A2
MCT110C	450x86x56	450x86x56B	A2
MCT125C	450x86x56	450x86x56B	A2
MCT135C	450x86x56	450x86x56B	A2
MCT145C	450x86x56	450x86x56B	A2
T210.1	450x86x56

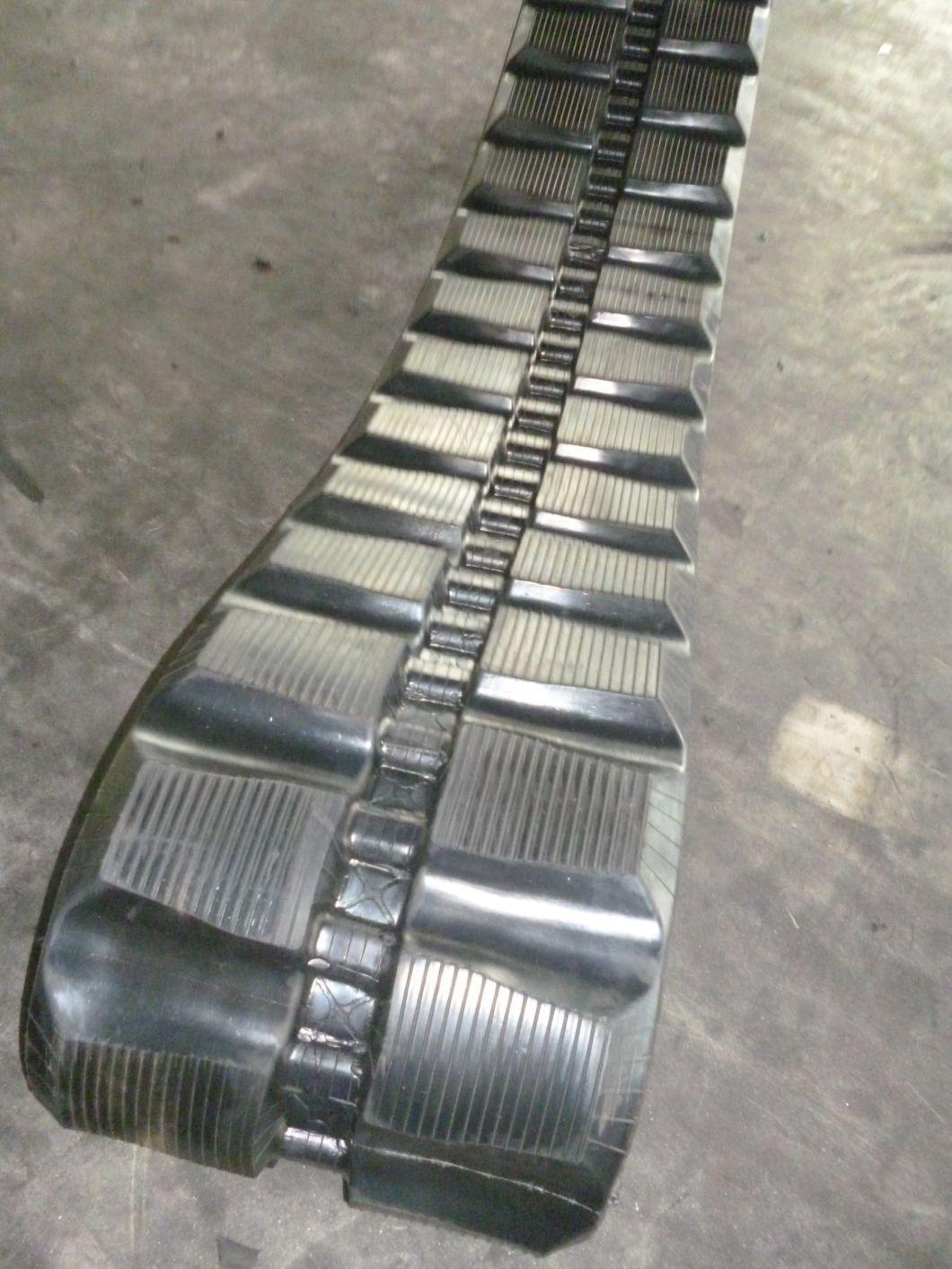

3.Special Features of the POOYERT Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type



4.Rubber track size list

Please noted that, the parameter just show the part of our size range, if you cannot find your size, please kindly inform us by email or other ways, we will customize for you.


Size	Weight for Each Link	Size	Weight for Each Link	Size	Weight for Each Link
130*72	0.36	WD300*72	1.459	400*144	7.75
150*60	0.52	B300*84	2.88	400*144Y	7.41
150*72	0.55	T300*86	3.13	420*100	5.3
170*60	0.48	300*109KW	3.38	450*71	4.45
180*60	0.56	K300*109	3.56	DW450*71	4.82
180*72	0.64	300*109N	3.32	450*73.5	4.57
180*72K	0.87	300*109W	3.21	450*76	5.27
H180*72	0.77	320*52.5	1.69	450*81.5	5.24
190*60	0.59	320*54	1.81	450*81N	5.19
190*60	0.59	B320*84	2.95	450*81W	5.02
190*72	0.72	B320*86	2.99	450*83.5	5.47
200*72	0.84	B320*86SB	2.99	450*83.5Y	5.67
200*72K	1.07	B320*86C	3.01	450*84	4.22
230*48	0.87	B320*86Z	3.12	B450*86	4.33
230*48K	1.06	B320*86CM	3.01	B450*86SB	4.3
230*72	1.09	B320*86R	2.99	B450*86C	4.31
230*72K	1.34	T320*86	3.22	B450*86Z	4.51
230*96	1.77	T320*86MB	3.3	B450*86CM	4.37
230*101	1.92	T320*86SB	3.27	B450*86R	4.3
250*47	1.11	T320*86C	3.25	450*90	4.07
250*48.5	1.13	T320*86Z	3.53	KU450*90	3.9
250*52.5	1.04	320*90	2.85	450*110	6.9
250*52.5K	1.31	320*100	2.67	T450*100MB	5.3
250*72	1.17	320*100W	3.01	T450*100	5.09
B250*72	1.03	320*106	3.63	T450*100SB	5.16
250*96	2.21	350*52.5	1.85	T450*100C	5.2
250*109	2.39	350*54.5	2.31	T450*100Z	5.55
260*55.5	1.48	350*56	2.05	450*163	10.47
260*96	1.91	350*75.5	3.58	485*92W	7.62
260*109	2.16	350*90	1.85	500*71	7.5
280*72	1.43	350*100	3.69	500*90	5.38
280*106	3.05	350*108	3.92	500*92	7.81
300*52.5KB	1.67	350*109	4.12	500*92W	8.6
300*52.5KW	1.71	370*107	4.68	500*100	6.34
300*52.5N	1.44	400*72.5KB	3.44	500*146	9.97
300*52.5W	1.56	400*72.5KW	3.72	600*100	8.3
JD300*52.5N	1.54	400*72.5N	3.48	600*125	10.39
K300*52.5	1.72	400*72.5W	3.85	650*110	13.34
KB300*52.5N	1.55	400*72.5Y	3.62	650*120	13.75
300*53	1.81	400*74	3.4	650*125	15.8
300*55	1.88	400*75.5	4.09	700*100	10.9
300*55.5	1.95	400*86	4.14	700*125	14.29
300*71	3.31	400*90	2.22	750*150	21.34
300*72	1.77	400*107	4.95	800*125	19.14
		400*142	7.12	K800*150	21.55
ASV TRACK				M800*150	20.05
280*102*37	1.36	PAVER TRACK		900*150	31.23
380*102*42	1.9	356*152.4*46	4.81	1000*150	33.3
460*102*51	2.41	483*152.4*52	6.07
460*102*56	2.49	460*225*36	7.79	SPECIAL TRACK
460*102C*51	2.44			6"*3.5"*28	0.41
510*102*51	2.6			10"*3.5"*28	0.51

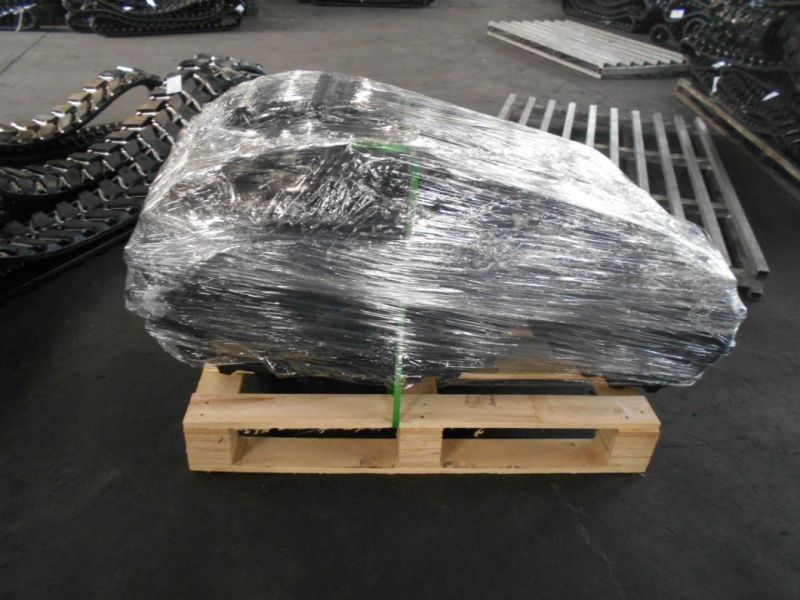

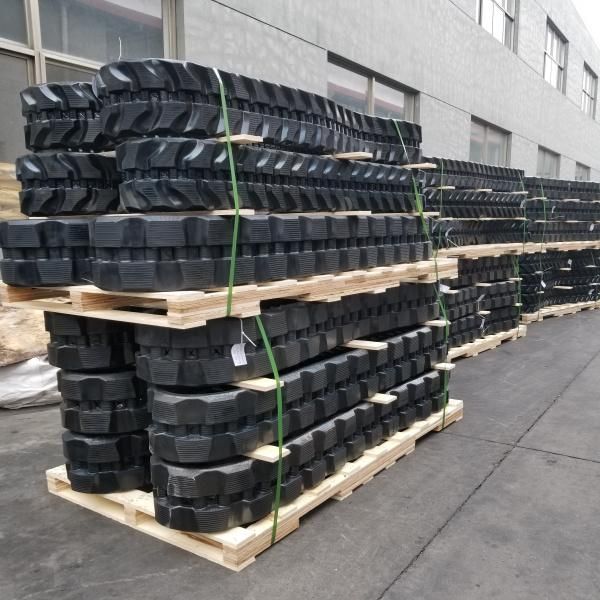

5. Packing details




Wooden pallet with film.
