China Popular Cheap Prices Skid Steer Loader Hysoon Hy700

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Free Spare Parts
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：<1t
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：HY700
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Oversize Loader
  • Dimension：2621mm* 1665mm* 1979mm
  • Max Working Height：3490mm
  • Max Dumping Height：2266mm
  • Wheel Base：1044mm
  • Rated Power：45kw
  • Speed：0-10 Km,H
  • Transport Package：Nude
  • Specification：2860kg
  • Trademark：HYSOON
  • Origin：Hunan, China
  • HS Code：8456454131
  • Production Capacity：100units,Month

Description

HY700 main performance parameters  ItemData   Item Data 1Max working height(A)3490mm 1Loading capacity700KG2Max pin height(B)3028mm 2Weight 2860kg3Max height on bucket level state(C)2814mm 3Engine Diesel engine 4Max dumping height (D)2266mm 4Rated speed2500r/min5Max Dumping distance(F)437mm 5Type of engineFour cylinder, water-cooling, four-stroke6Wheel base(G)1044mm 6Rated power45KW7Total height(H)1979mm 7Fuel consumption rate on standard<=240g/KW·h8Ground clearance(J)196mm 8Fuel consumption rate on max torque<=238g/KW·h9Overall length without bucket(K)2621mm 9Noise <=117dB(A)10Total length(L)3400mm 10Generator power500W11Skip width(M)1720mm 11Voltage 12V12Total width(W)1665mm 12Storage battery105AH13Tread width to center line (P)1425mm 13Speed 0-10 Km/h14Tire's thickness N)240mm 14Drive mode Hydrostatic four-wheel drive15Departure angle(α)19° 15Tire 10-16.516Bucket dump angle(β)41° 16Hydraulic pump flow for running110L/min17Retracting angle(θ)18° 17Hydraulic pump flow for working50L/min18Turn radius(R)2056mm 18System pressure15MP    19Fuel tank capacity 103L    20Hydraulic oil tank capacity63L    21Motor Big torque motor    22Piston double pump  America brandProduct Photos:

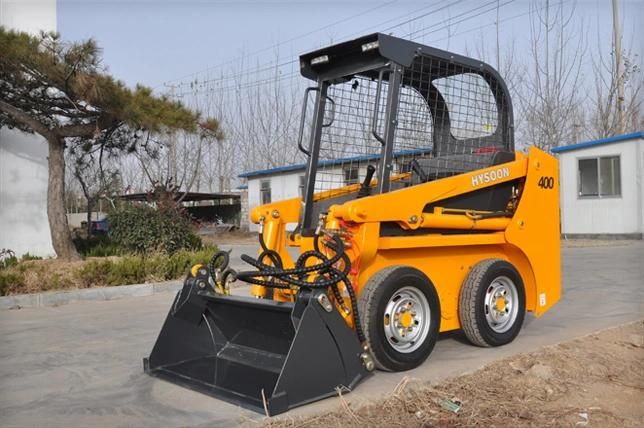

China Popular Cheap Prices Skid Steer Loader Hysoon Hy700
