• Model NO.：SVH50
• Travel Speed：35cm,s
• Centrifugal Force：27KN
• Certification：EPA, CE, ISO 9001:2000
• Condition：New
• Engine：Diesel Changchai CF178,Honda Gx270
• Drum Width：600mm
• Drum Diameter：426mm
• Start up：Electric Start
• Fuel Tank Capacity：5.9L
• Water Tank Capacity：20L
• Hydraulic Oil Tank：18L
• Walking Speed：0-4 Km,H
• Transport Package：Wooden Package
• Specification：1350*900*1200mm
• Origin：China
• HS Code：8429401900
• Production Capacity：5000 Set,Year

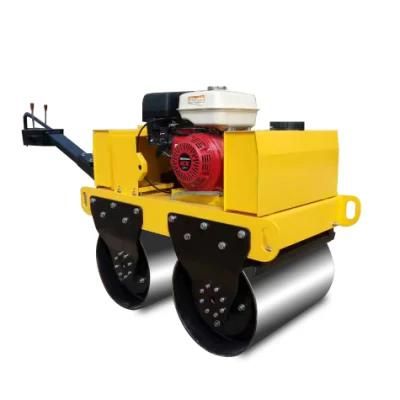

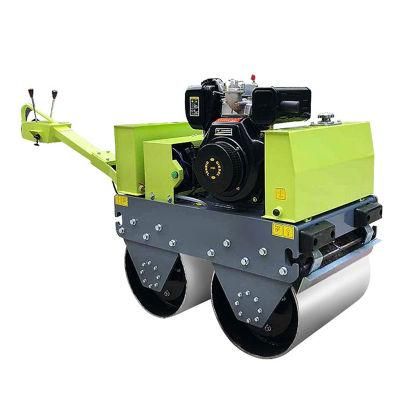

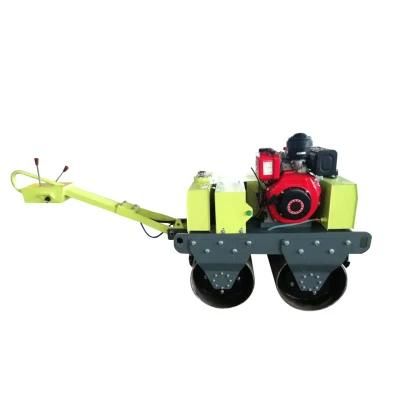

SVH50 ROAD ROLLER is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. This is the latest model of light duty rollers in the domestic.

Product characteristics

Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.

2. Double Poclain plunger motors drive the machine walking.

3. Imported brand motor drives the steel drum vibrating.

4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.

5. Double control levers with vibration button, makes the compaction of edge easy.

6. Electrically controlled water-spray, high efficient and water-saving.

7. Wear-resistant scraper can be lift and fixed during transportation.

8. LED lamp at front and rear for the convenience of night construction.

 EngineHonda GX270CHANGCHAI  178CHANGCHAI R180Engine typeSingle cylinder, OHV, air-cooled, four-stroke, gasolineSingle cylinder, vertical, air-cooled, four-stroke, dieselSingle cylinder, vertical, water-cooled, four-stroke, dieselOutput power (KW)6.74.45.7Rating speed(RPM)36002600Lubricating oil volume(L)1.12Electrical equipment(V)12Walking speed (KM/H)0--3.8Theoretical climbing ability(%)30Vibration wheelFront+rearDrive formTwo way hydraulic, chain drive Vibration frequency (HZ)70Vibration amplitude (MM)0.6Exciting force(KN)20Water spray formGravity sprayHydraulic oil capacity(L)18Fuel capacity(L)5.92.76.5Water tank capacity (L)20-----Working width(MM)788Overall length(MM)2480Machine height(MM)1300Drum size600*426mm*2Drum thickness(MM)12Weight(KG)540570Static load(N/CM)45

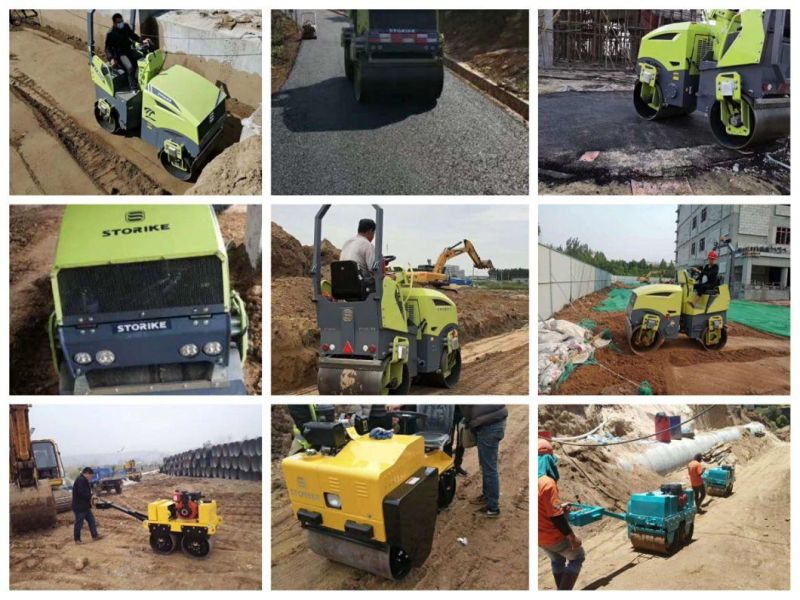

Feedback from clients:

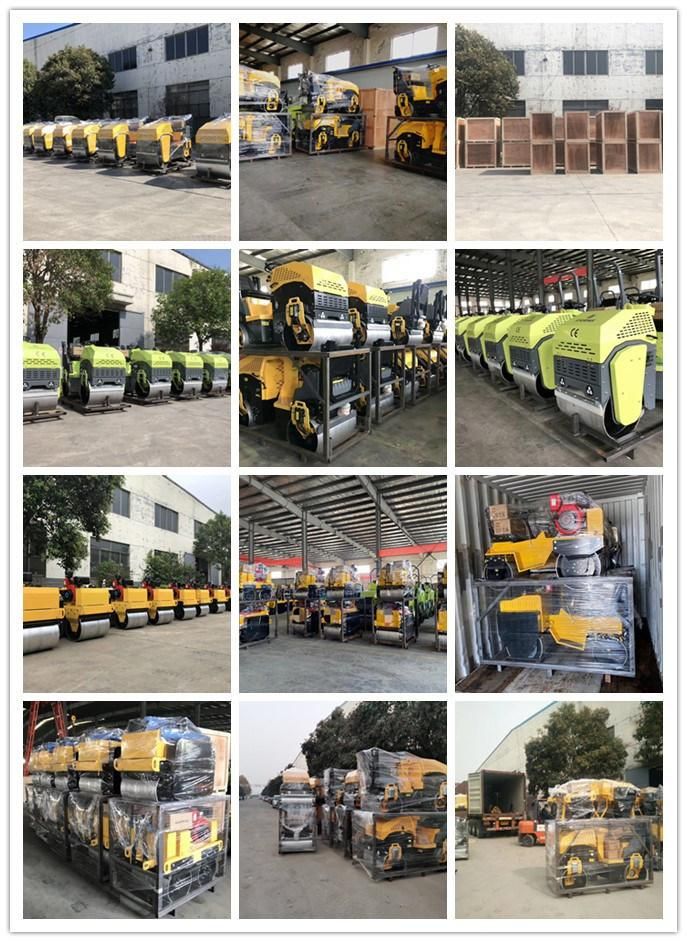

Packaging & Shipping

Company Information:

Shandong Storike Engineering  Machinery Co., Ltd is specialized in the sales and production of small road roller, compact ram, mobile lighting car, hydraulic power station, troweling machine and other construction machine. Our products are widely used in municipal and highway pavement road roller maintenance, small area compacting and depressed trough and so on. Our equipment is favored by many construction companies and have a large market in China. More and more trading companies purchase equipment from our plants, so we decide to enter world market with more favorable price to shape our product brand and provide the best after-sale service. If you are interested in our machine, contact us!
