• Model NO.：LDS1500G
• Brand：Lec
• Pressure：1.5 Mpa
• Output：1.5 - 3 M3
• Max. Aggregate：8 Mm
• Squeeze Hose：ID 50 Mm
• Conveying Hose：ID 38 Mm
• Squeeze Pump：Lh50-455
• Power：Honda Gx390 Gasoline Engine
• Requested Air Compressor：3 M3,Min, 0.5 Mpa
• Transport Package：in Wooden Case or in Standard Container
• Specification：CE, ISO 9001
• Trademark：Leadcrete
• Origin：Henan, China
• HS Code：84743100
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. LDS1500G Brand Lec Pressure 1.5 Mpa Output 1.5 - 3 M3 Max. Aggregate 8 Mm Squeeze Hose ID 50 Mm Conveying Hose ID 38 Mm Squeeze Pump Lh50-455 Power Honda Gx390 Gasoline Engine Requested Air Compressor 3 M3/Min, 0.5 Mpa Transport Package in Wooden Case or in Standard Container Specification CE, ISO 9001 Trademark Leadcrete Origin Henan, China HS Code 84743100 Production Capacity 1000 Set/Year

Product Description

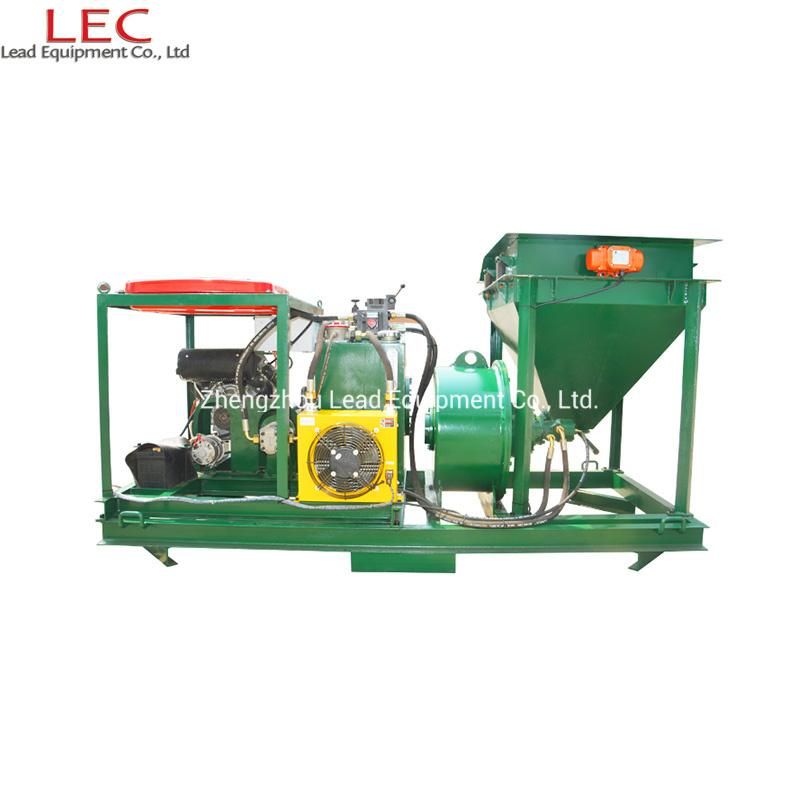

1.5 Mpa Lightweight Gasoline-Powered Shotcrete Pump




Introduction

The LDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

Feature description
1) Highly reliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply


Item	Description
Pressure	1.5 Mpa
Output	1.5-3 m3/h
Max Aggregate	8 mm
Squeeze Hose	ID 50 mm
Conveying Hose	ID 38 mm
Squeeze Pump	LH50-455
Power	Honda GX390 gasoline
Overall Dimension	1900*850*1250 mm
Hopper vol.	200 L
Oil Tank	120 L
Weight	610 kg
Requested Air Compressor	3 m3/min, 0.5 Mpa Pressure
