• Model NO.：SWZ30-25
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Backhoe Loader
• Engine Power：74 Kw
• Drive Mode：4X4
• Bucket Capacity：0.2m3
• Shovel Capacity：1.0m3
• Travelling Speed：40km,H
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. SWZ30-25 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Backhoe Loader Engine Power 74 Kw Drive Mode 4X4 Bucket Capacity 0.2m3 Shovel Capacity 1.0m3 Travelling Speed 40km/H Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 100 PCS/Month

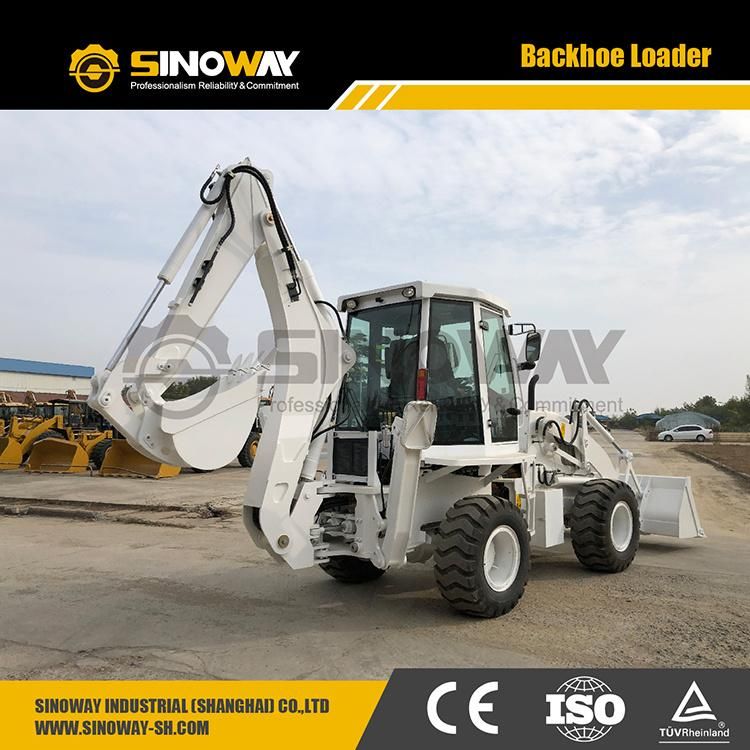

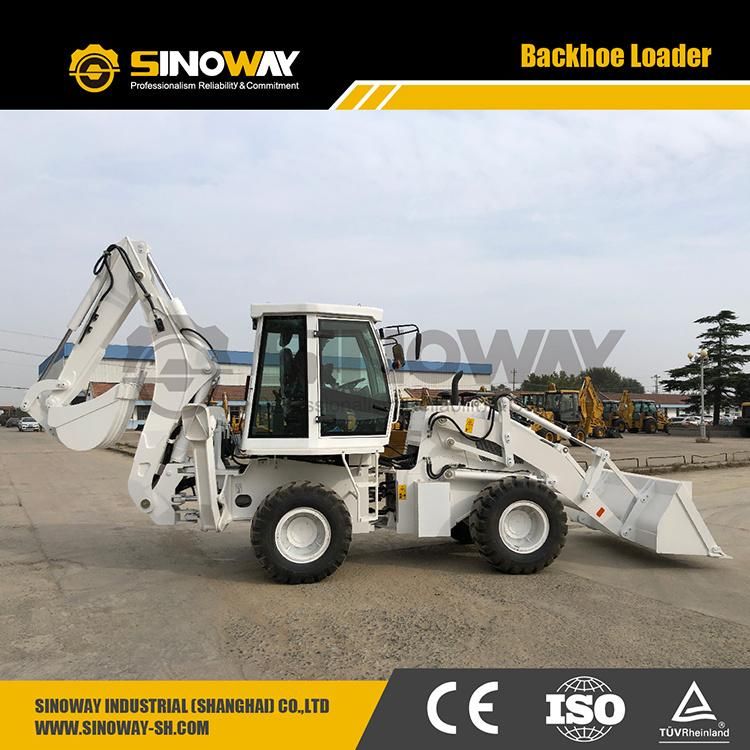

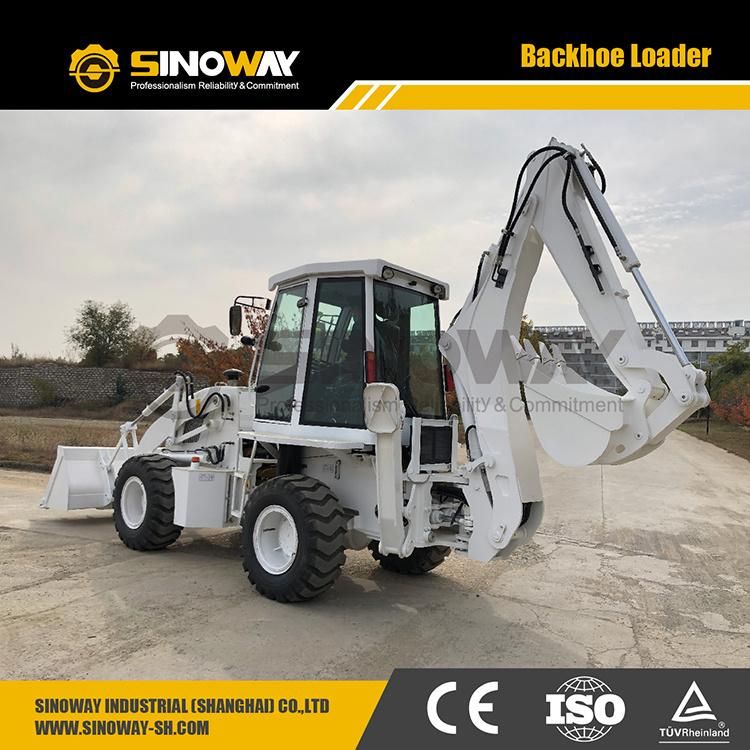

Product Description

Main Advantages

Powered by a world class engine delivering unmatched and dependable power in its class yet it produce low noise and low emission.
Ergonomic designed cab with improved overall visibility and well placed controls. They are easy to see, easy to reach and easy to handle.
Perfectly matched power train system, the differential lock on rear axle aids to deliver high tractive force. Oil-bath brake allows unilateral braking function to be executed, requiring minimum turning radius.Easy engine access, convenient placement of key parts and fluid refill points.
The pilot valve controlled loader, as well as the backhoe valve, makes for easy and flexible operation of the backhoe loader.
Smartly designed, the extendible dipper for the excavator greatly reduces the travelling distance and improves the working efficiency.
The arm of the wheel loader can be extended to increase the working range.

Engine
Make	Yuchai
Type	Four-cylinder,water-cooled turbocharged,mechanical injection
Rated power	74KW
Rated speed	2200rpm
Main Technical Specification
Loading
Rated load	2500Kg
Operating weight	8100Kg
Rated bucket capacity	1.0m3
Max. breakout force	66KN
Max. dump clearance	2770mm
Dump reach	705mm
Min. turning radius	3350mm
Lifting time of bucket	≤5s
Fastest Total Cycle Time	≤10s
Pressure	24Mpa
Digging
Rated bucket capacity	0.2m3
Max. digging depth	4250mm
Max. digging force	51KN
Max. digging radius	5500mm
Pressure	24Mpa
Steering System
Type	Front wheel Steering
Make of steering pump
Transmission System
Torque Converter
Torque ratio	2.55
Cooling type	Pressure oil circulating
Gear box
Type	Synchromesh mechanical shift
Travelling speed	40km/h
Implement Hydraulic System
Make of oil pump
Make of loading/digging valve
Service Capacities
Fuel tank	150L
Hydraulic tank	150L
Dimensions
Overall length	7400mm
Overall width	2350mm
Overall height	3450mm
