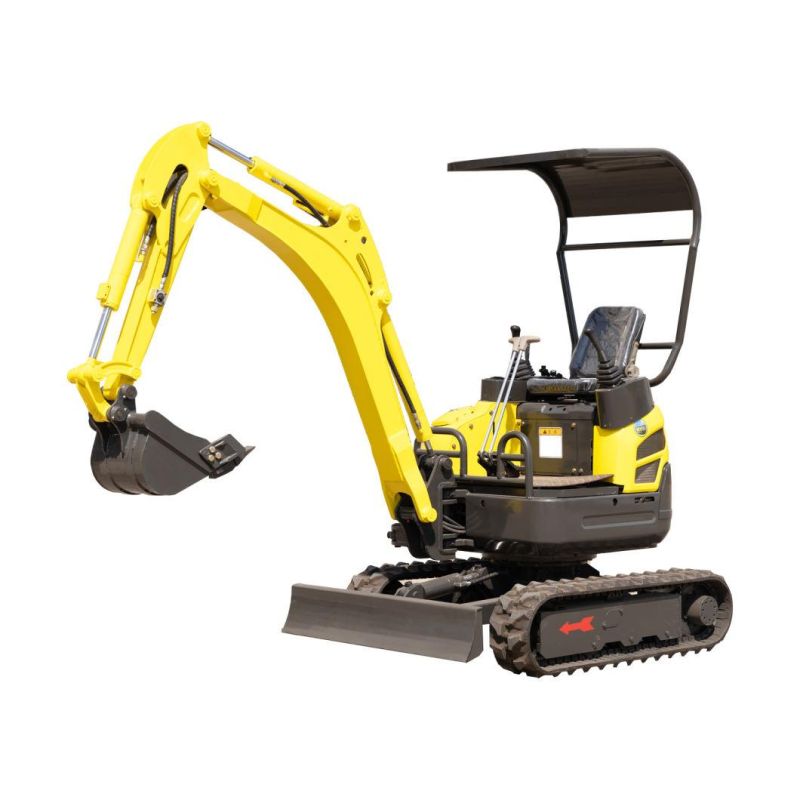

Mini Excavators CE Certificate 1.0-2.0 Ton Rubber Track Crawler Zero Tail Swing Small Hydraulic Compact Digger Excavators for Sale with Yanmar Engine
Shandong Hixen Machinery Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Garden,Farmland,Road Construction
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.025m³
Base Info
- Model NO.：zero tail swing
- Size：Small-Scale
- Certification：ISO9001: 2000
- Condition：New
- Engine Power：8.6kw
- Engine Model：Yanmar
- Climbing Gradient：30°
- Overall Dimensions：2770X890X1490mm
- Product：Digging Machine
- Cab：Open Type
- Spare Parts：Auger Drilling Machine
- Package Quantity：2 Sets,20FT Container
- Attachments：Post Hole Digger

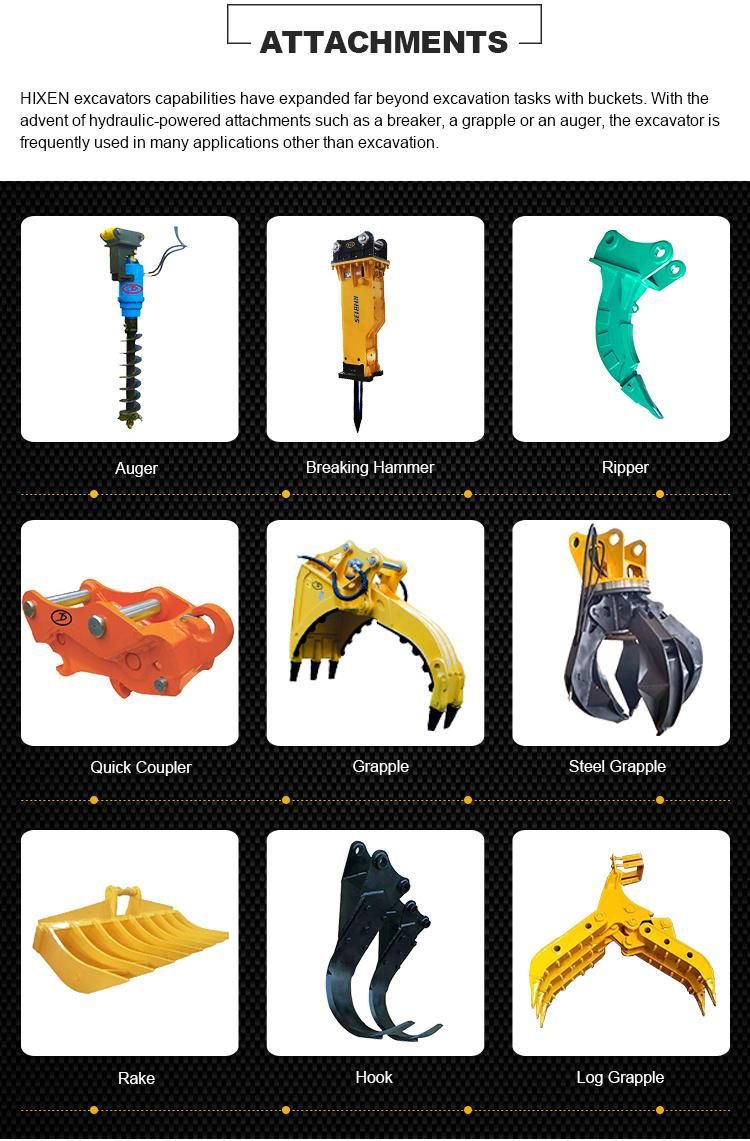

- Multifunction：Auger,Hammer,Rake,Ripper,Gripper
- Other Products：Wheel Excavator
- Warranty：1 Year
- Transport Package：Container
- Specification：1000kg,set
- Trademark：Hixen
- Origin：China
- HS Code：84295212
- Production Capacity：120units,Month
Description
1) Small working dimensions, situable for limited space.
2) Convenient operation, compact design, flexible movement.
3) Adapting to various of working conditions.
4) Solid cast iron counterweight improves working stability.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing.
Applications:
1) Ditching and digging such as: Cable trench, water pipeline, oil and gas pipeline etc.
2) Exploitation of new land.
3) Municipal works such as landscaping.
4) Construction works such as road engineering.
5) Farming and greenhouse for trenching and digging.
6) Mine for loading and unloading.
| Machine weight | 1800 Kg |
| Bucket width | 410mm |
| Bucket capacity | 0.05m³ |
| Engine power | 10.3KW |
| Engine | Yanmar |
| Hydraulic system pressure | 16MPa |
| Climbing gradient | 30° |
| Pressure touching the ground | 23×10³N/m² |
| Walking speed | 2Km/h |
| Maximum pulling force | 11.5KN |
| Rotation speed | 7r/min |
| Total length | 3000 mm |
| Total width | 1200 mm |
| Total height | 2300 mm |
| Platform turning radius | 680mm |
| Crawler length | 1450mm |
| Platform width | 980 mm |
| Crawler width | 230 mm |
| Maximum digging height | 3556 mm |
| Maximum dumping height | 2452 mm |
| Maximum digging depth | 2247 mm |
| Maximum digging radius | 4045 mm |
| Maximum ground level digging reach | 3784mm |
| Minimum turning radius | 680mm |
| Working device rotation radius | 1780 mm |
| Bulldozer maximum bucket depth | 150 mm |
| Bulldozer maximum raising height | 270 mm |
FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.
Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3.How long is the product guarantee?
We provide one year quality guarantee.
Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.
Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please free to contact us. We sincerely welcome all friends paying visits to us and reach a mutural succe
