Crawler Excavator Solar Se245LC Hydraulic Oil Cooler
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Any
- Warranty：1 Year Warranty
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SE245LC
- Drive Type：Electric Drive
- Bucket Capacity：0.5~1.0m³
- Size：Medium-Sized
- Certification：CE
- Condition：New
- Power：150kw
- Operating Weight：24800kg
- Maximum Digging Height：10180mm
- Maximum Digging Depth：6064mm
- Transport Package：Nude Package
- Trademark：shantui
- Origin：China
- HS Code：8429510000
- Production Capacity：20untis,Month
Description
Basic Info.
Model NO. SE245LC Drive Type Electric Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE Condition New Power 150kw Operating Weight 24800kg Maximum Digging Height 10180mm Maximum Digging Depth 6064mm Transport Package Nude Package Trademark shantui Origin China HS Code 8429510000 Production Capacity 20untis/MonthProduct Description
Crawler Excavator Solar SE245LC Hydraulic Oil Cooler
SpecificationOptional attachments
Breaking hammer, ripper, timber grab, stone grab, hydraulic tamper, quick change coupling, and breaking hammer pipeline.
| Comparative item | SE245LC (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 9985 |
| Ground length (During transport) (mm) | 5350 |
| Overall height (To the top of boom) (mm) | 3235 |
| Overall width (mm) | 3180 |
| Overall height (To top of cab) (mm) | 3075 |
| Ground clearance of counterweight (mm) | 1083 |
| Minimum ground clearance (mm) | 465 |
| Tail turning radius (mm) | 3000 |
| Track length (mm) | 4660 |
| Track gauge (mm) | 2580 |
| Track width (mm) | 3180 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 3000 |
| Working range | |
| Maximum digging height (mm) | 10180 |
| Maximum dumping height (mm) | 7200 |
| Maximum digging depth (mm) | 6864 |
| Maximum vertical digging depth (mm) | 5978 |
| Maximum digging distance (mm) | 10198 |
| Maximum digging distance at ground level (mm) | 10015 |
| Working device minimum turning radius (mm) | 3276 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | QSB7(China III) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 6.7 |
| Rated power (kW/rpm) | 150/2050 |
| Hydraulic system | |
| Type of hydraulic pump | Duplex axial variable displacement plunger pump |
| Rated working flow (L/min) | 2x238 |
| Bucket | |
| Bucket capacity (m³) | 1.05 |
| Swing system | |
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 99/107 |
| Bucket digging force (KN) | 137/148 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 24800 |
| Ground pressure (kPa) | 47.9 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.1 |
| Traction force (KN) | 274 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 330 |
| Cooling system (L) | 28 |
| Engine oil capacity (L) | 22 |
| Hydraulic oil tank/system capacity (L) | 270/400 |

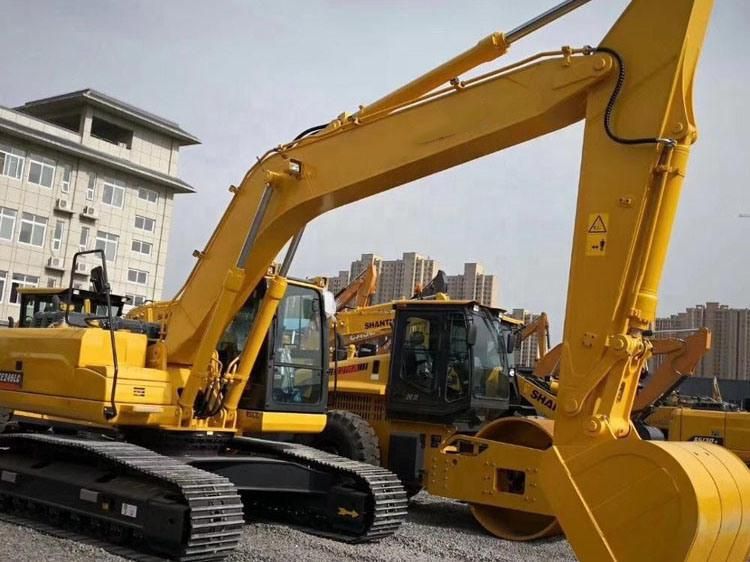

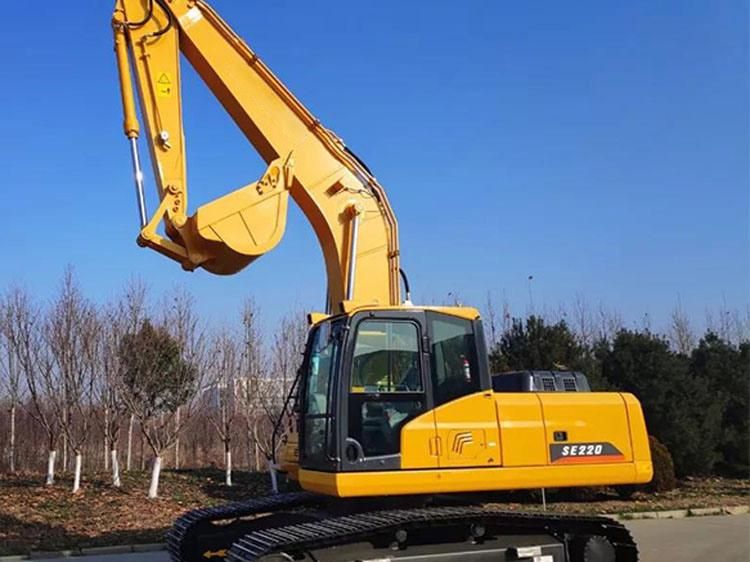

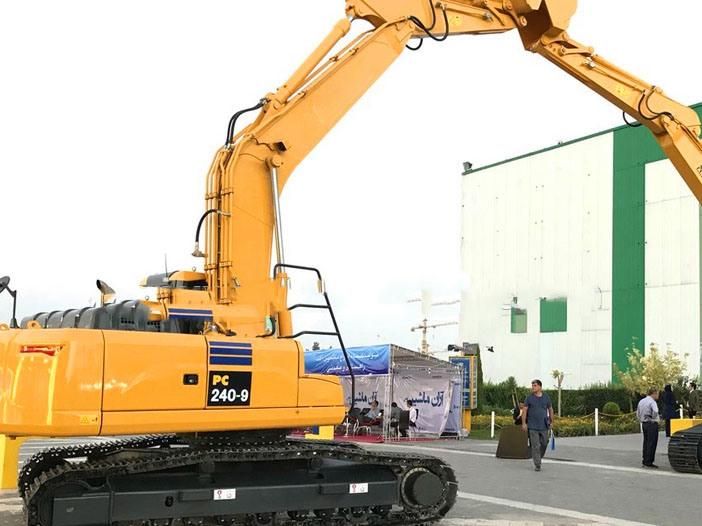

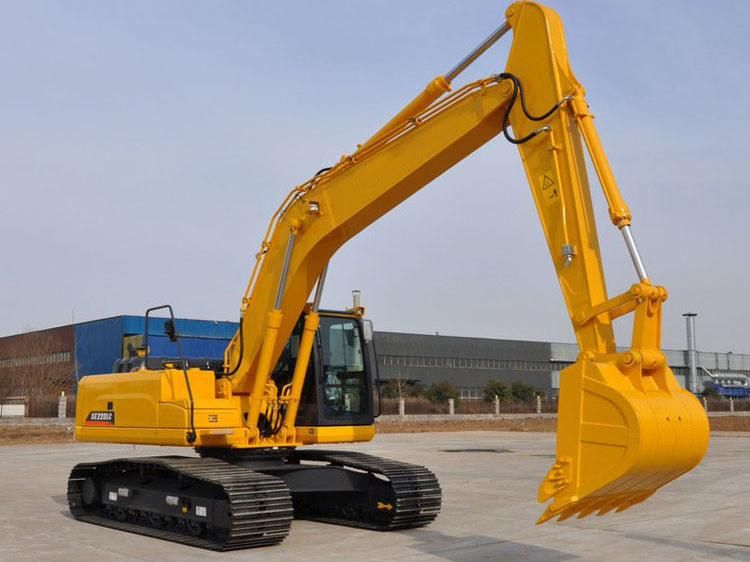

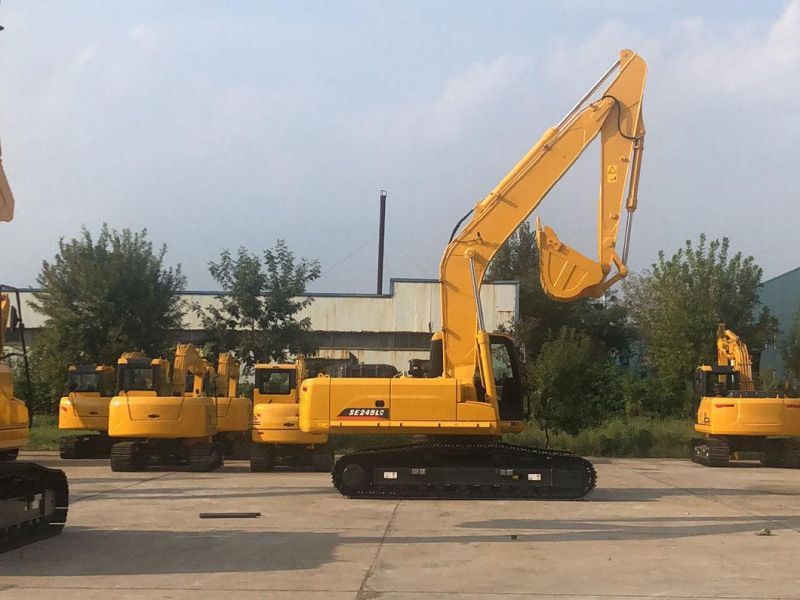

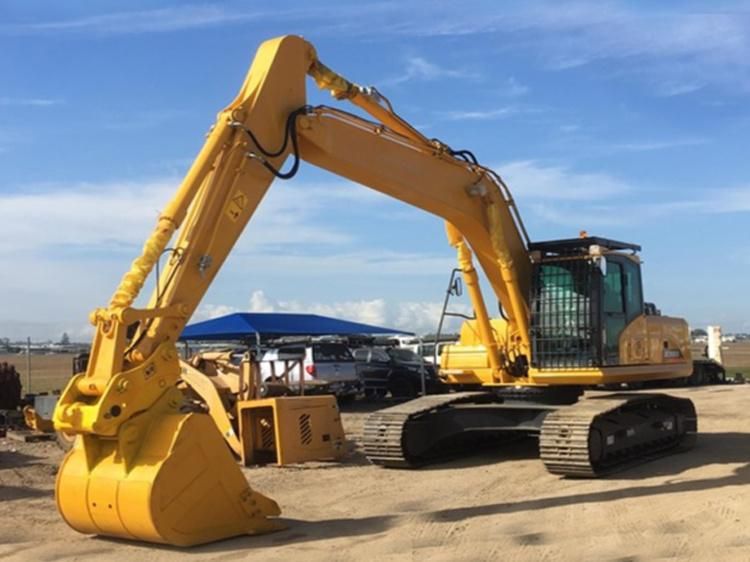

Product pictures
