50m Depth Rotary Drill Rig with Good Price

Generator Power (Shanghai) Co., Ltd.
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer

Base Info

  • Model NO.:Rotary Drilling Rig
  • Power Source:Diesel
  • Motor Power:447kw
  • Noise:Without Noise
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Max Drilling Diameter:3000mm
  • Max Drilling Depth:120m
  • Application:Construction Work
  • Advantage:Long Life Time
  • After Sales Service:Engineers Serve Machinery Oversea, Free Spare Part
  • Engine:Cummins 447kw
  • Work Pressure:35MPa
  • Max Torque:460kn.M
  • Rotational Speed:7-22 R,Min
  • Slewing Angle:360
  • Dimension:10750X5500X31060mm
  • Certificate:CE ISO TUV
  • Transport Package:Nude Packing
  • Specification:158T
  • Trademark:Super-above
  • Origin:Jiangsu, China
  • HS Code:8430509000
  • Production Capacity:10000PC,Year

Description

Main Technical SpecificationXR460DEngineModel CumminsQXS15-C600Rated PowerKW447Rotary
DriveMax. Output Torque  KN.M460Rotary SpeedStandard ModeR/Min6~20High Speed
ModeWorking SpeedSpin Off SpeedMax. Drilling DiametermmΦ3000/Φ2800(winch corwd)*Max. Drilling DepthM120Pull-Down
CylinderMax. Pull-down Piston PushKN300Max. Pull-down Piston PullKN400Max. Pull-down Piston StrokeM6Crowd
WinchMax. Pull-down Piston PushKN300Max. Pull-down Piston PullKN400Max. Pull-down Piston StrokeM 10Main
WinchMax. Pulling ForceKN520Max. Line SpeedM/Min60Auxiliary
WinchMax. Pulling ForceKN 100Max. Line SpeedM/Min65Mast RakeSide/Forwards/Backwards±5°/90°/15°UndercarrigeMax. Traveling SpeedKM/H1Max. Grade Ability%35Min. Clearancemm500Track Shoe Widthmm1000Distance between Tracksmm4050~5500Hydraulic System        Working PressureMPA35Overall Drilling WeightT158DimesionWorking Conditionmm10750x5500x31060Transportation Conditionmm18040x4050x3615

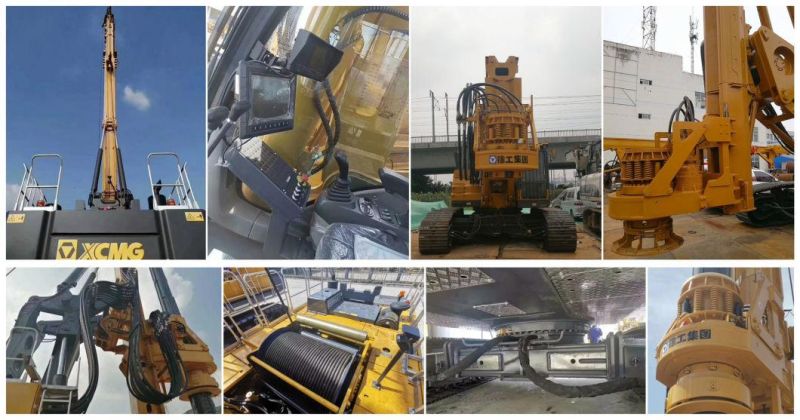

Details Photo:

50m Depth Rotary Drill Rig with Good Price

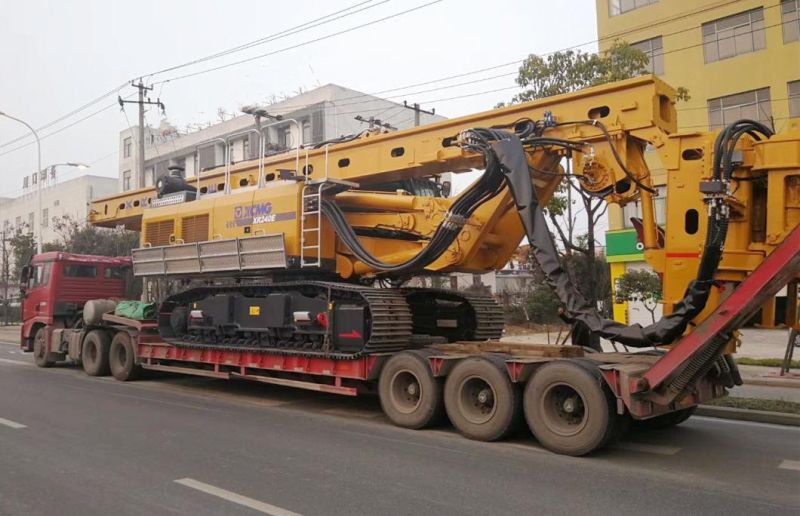

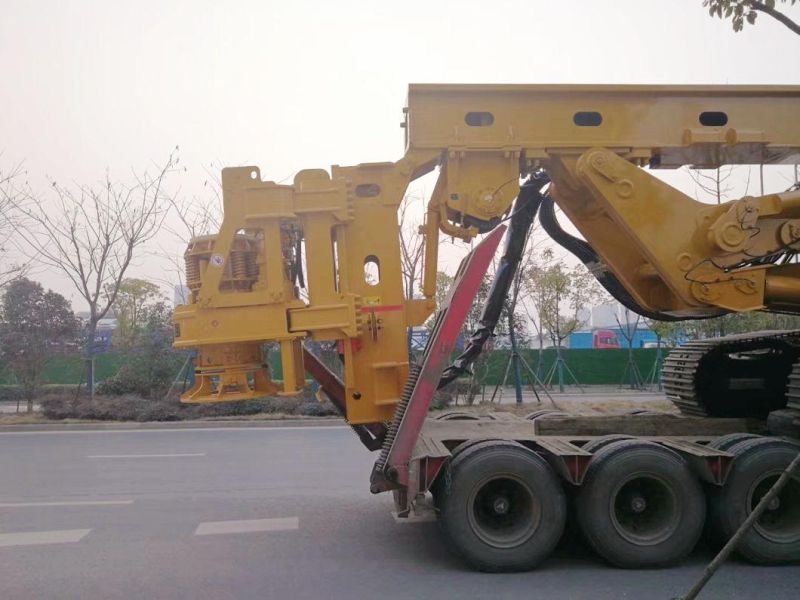

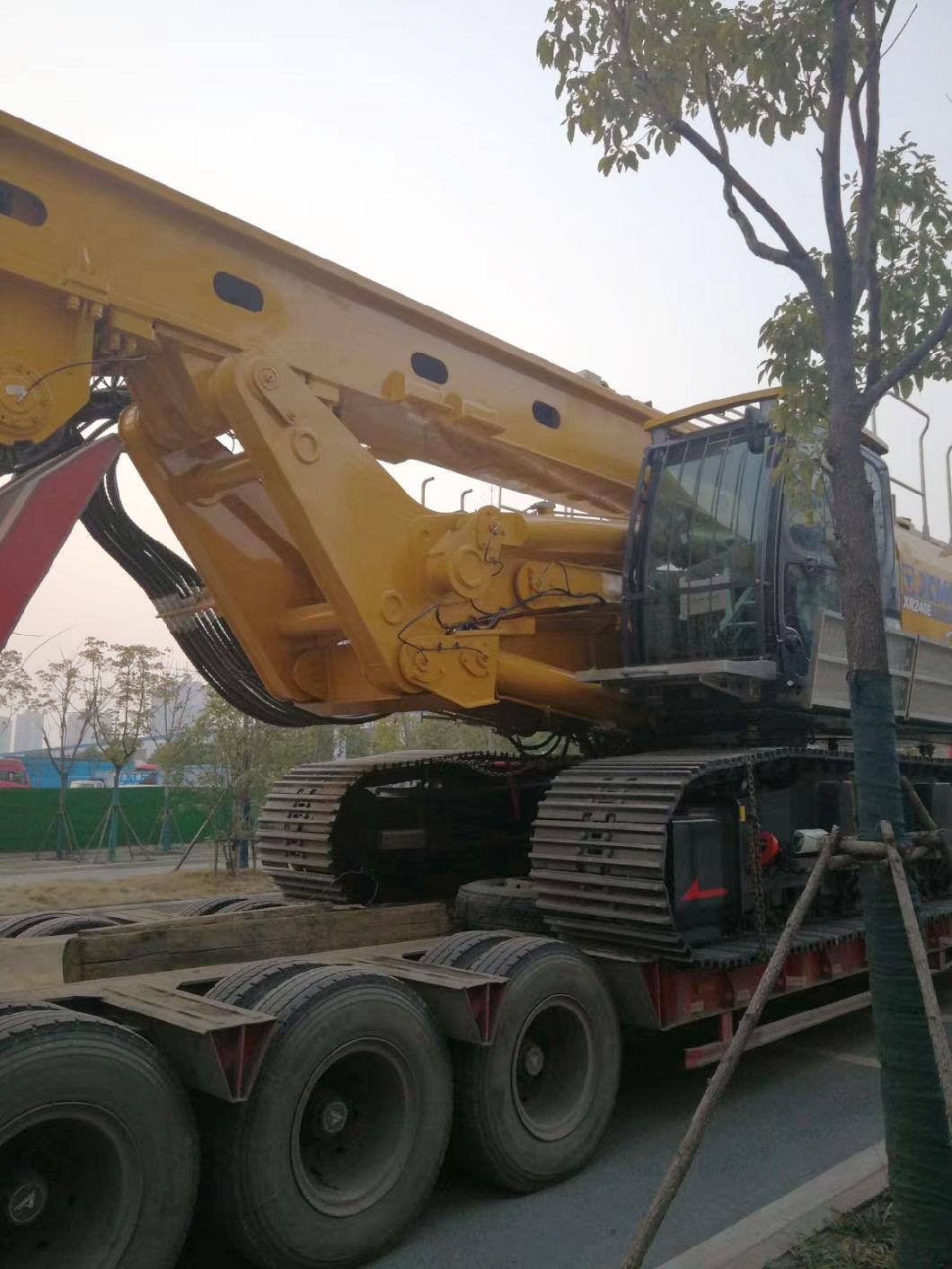

Transportation:

50m Depth Rotary Drill Rig with Good Price50m Depth Rotary Drill Rig with Good Price
50m Depth Rotary Drill Rig with Good Price

50m Depth Rotary Drill Rig with Good Price
50m Depth Rotary Drill Rig with Good Price
