• Model NO.：M910
• Type：Small Loader
• Name：Small Wheel Loader
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：30~40 HP
• Rated Loading Capacity：1ton,
• Weight：1850kg
• Max. Lifting Height：3000mm
• Hydraulic Output：67L,Min
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Warranty：1 Year
• After Sale Service：Life Long Online Support
• Delivery Time：Within 15 Days Less Than 5 Sets
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. M910 Type Small Loader Name Small Wheel Loader Engine Diesel Perkins/Yanmar/Chinese Rated Power 30~40 HP Rated Loading Capacity 1ton, Weight 1850kg Max. Lifting Height 3000mm Hydraulic Output 67L/Min Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Loader Usage Farming, Construction, Gardening, Landscaping Warranty 1 Year After Sale Service Life Long Online Support Delivery Time Within 15 Days Less Than 5 Sets Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 800 Sets/Year

Product Description

1000kg capacity small Telescopic Boom Hoflader for sale
GENERAL INTRODUCTION:

STEEL CAMEL M910 small front end wheel loader can be found working in various fields, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc. There are many reasons for its popular:

1.Compact design enable it can work in some limited working site which other normal loaders can not come through

2.Fully hydrostatic driving system, simple driving like auto cars.

3.Telescopic boom increase the liting height into the level which many other loaders can not achieve

4.Independent working and driving system offers great convenient to some hydraulic attachments

5.Front and rear hydraulic output, quick coupling and 3 point hitch, together with hundreds of different attachments can finish almost all the work needs.

6.The flexible articulation offers fantastic motility in rough terrain.

TECHNICAL DATA:


Model	M910 mini avant loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1200kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed  0~8~16km/h two speed optional
Weight	1700 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	190bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

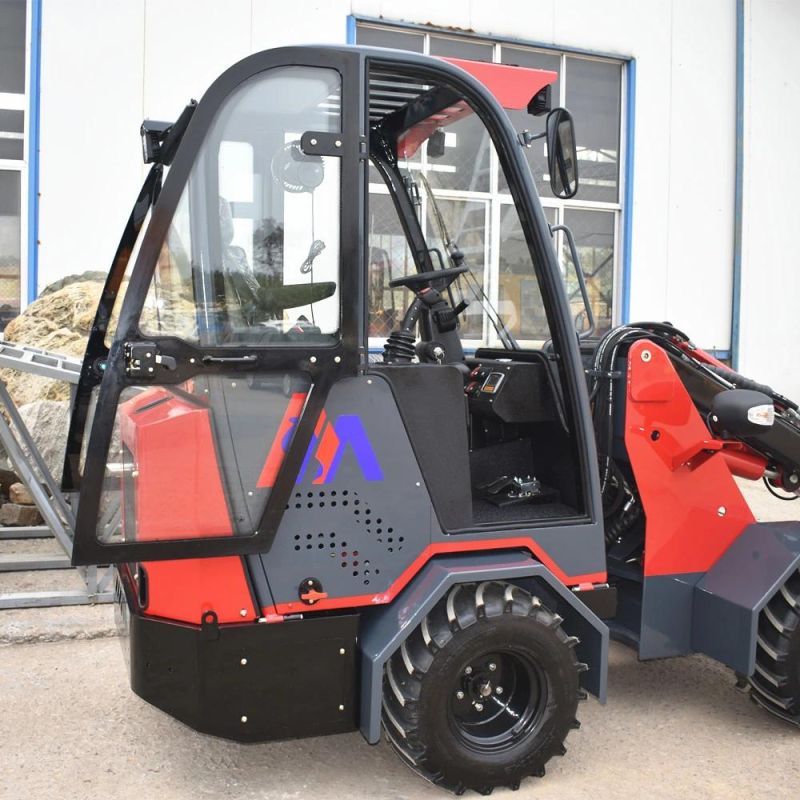

DETAILED IMAGES:


APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

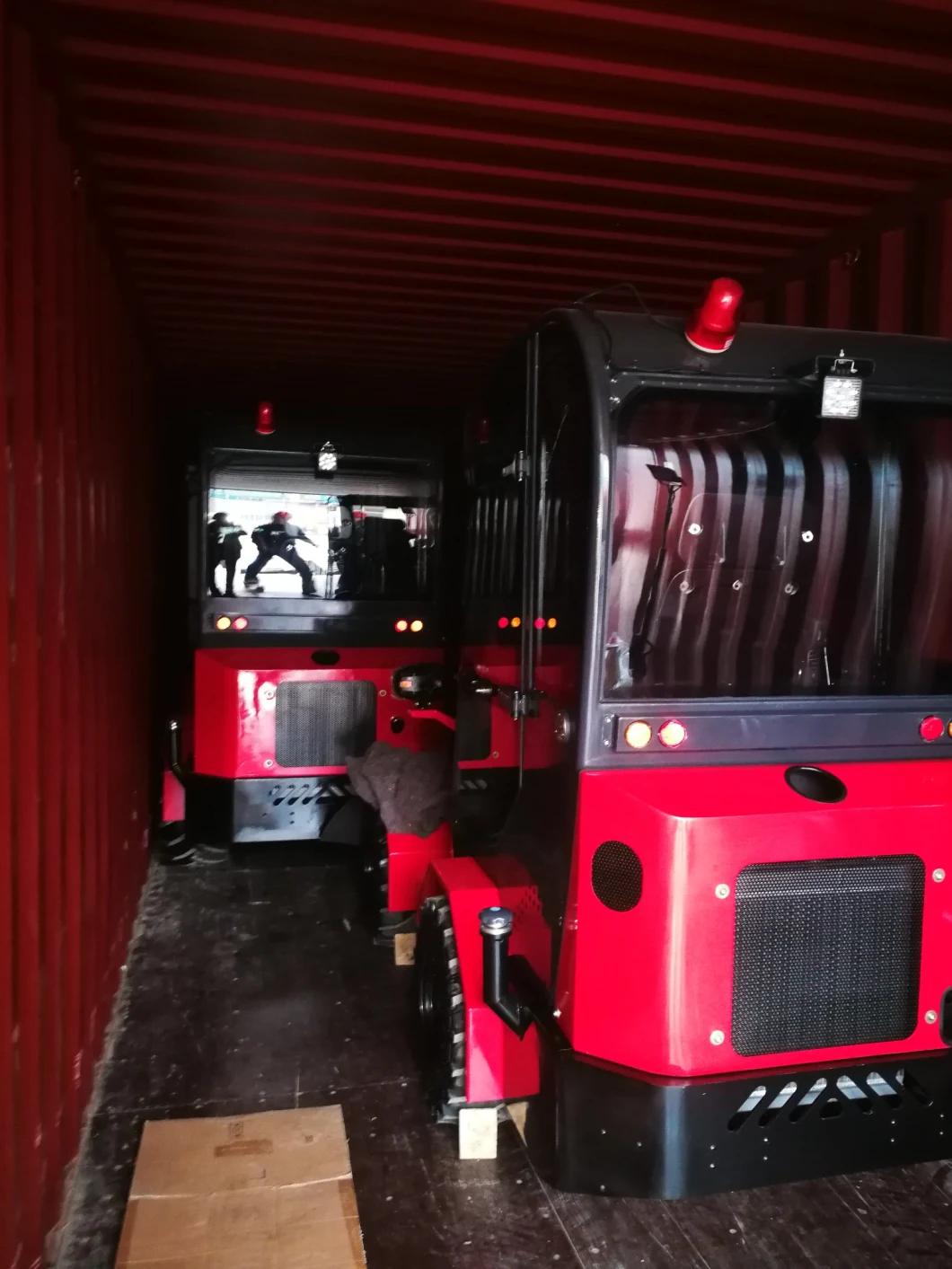

LOADING CONDITION:

STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.

Loading condition of M910 mini tractor loader as below:

3 sets/20' GP, 6 sets/40'GP

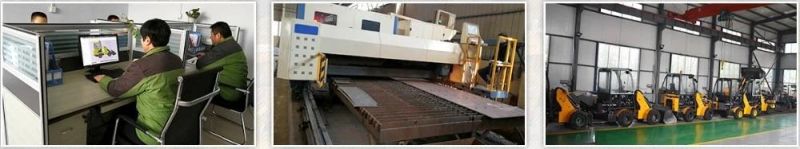

OUR COMPANY:

As a young company established in year 2016, Shandong Honest Machinery Co., Ltd has developed 3 series more than 40 different products till now, our products covering telescopic loader, telehandler and attachments. Action speaks lounder than words, our rapid development is the best prove of us.   "Honest" is our business way. We appreciate customers' trust, and we are always honest as return. We choose "STEEL CAMEL" as our brandname, as all our products were designed for heavy duty work, trouble less and more service, like the what the camel do for people.

Excellent R&D capacity              High quality heavy duty materials   Standard assembling line Customized service                       Advanced production lines             Ready for fast delivery

One team, One dream                                            Global sales, Lifelong service

CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
