• Model NO.：BP100T
• Feeding Mode：Belt Conveyor
• Transport Package：Nude
• Specification：costomization
• Trademark：ucarry
• Origin：China -Shandong
• HS Code：8474310000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. BP100T Feeding Mode Belt Conveyor Transport Package Nude Specification costomization Trademark ucarry Origin China -Shandong HS Code 8474310000 Production Capacity 100 PCS Per Month

Product Description

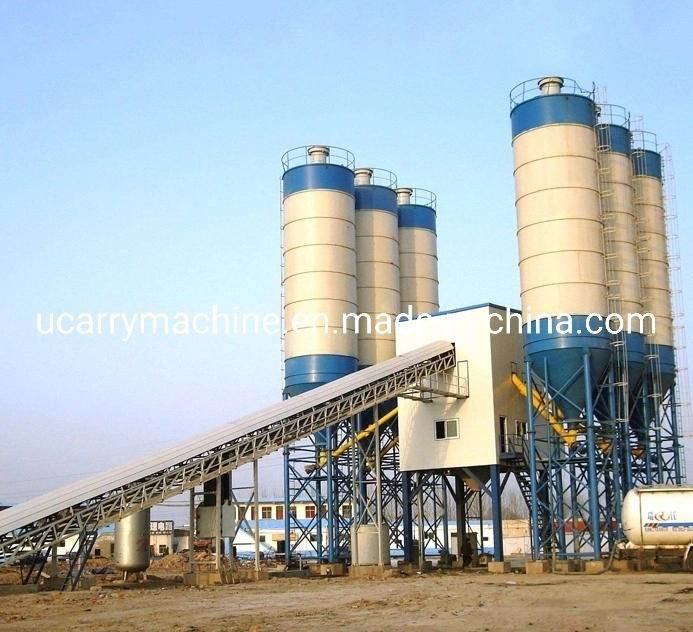

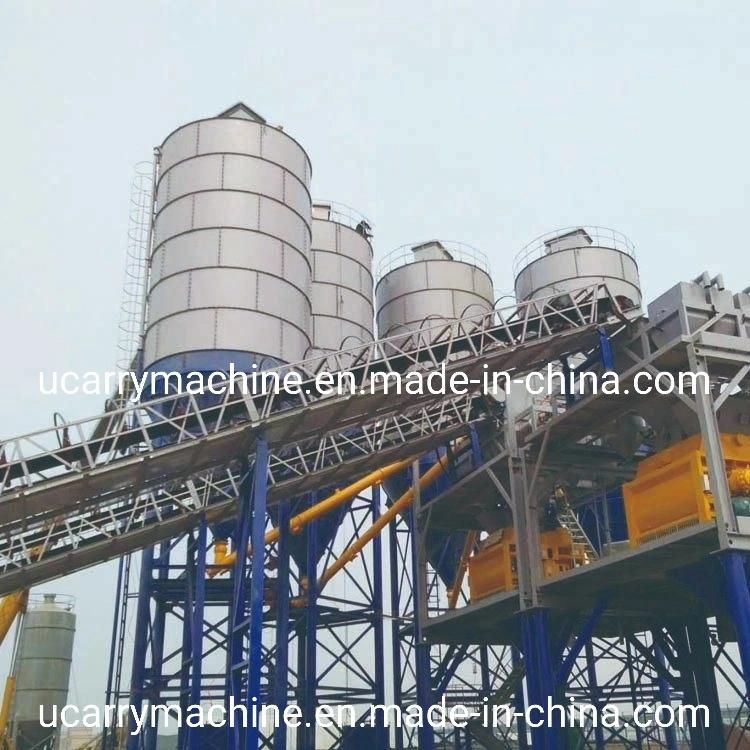

The BP-B series precast batching plant is special designed for large
scale precas manufacturer such as PCCP pile .metro tube piece.
It has the advantage of high efficiency and reliability.

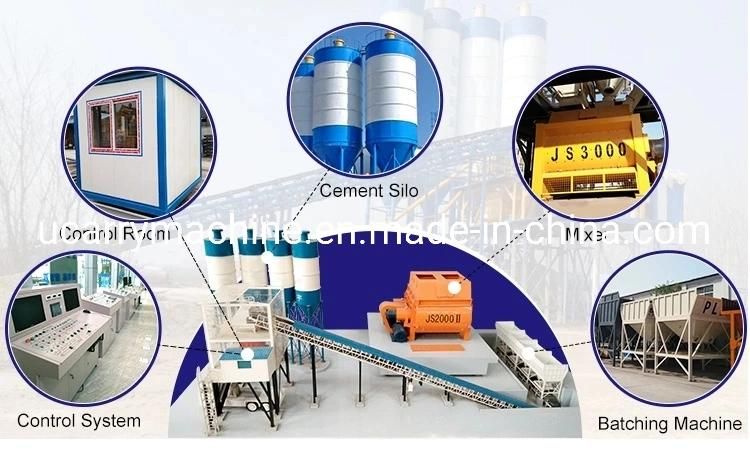

Mechanical section -compact structure ,reliable working

Adopt planetary mixer ,which is suitable for all kind of high performance concrete ,it can achieve
 homogeneous in shortest time .
Aggregate batching system with coarse and fine electric scale ,ensures accurate weighting and high efficiency.
The aggregate powder and liquid weighing systems use reliable load cells to reach the accurate and stable result.

Electric section -easy operation ,automatic running

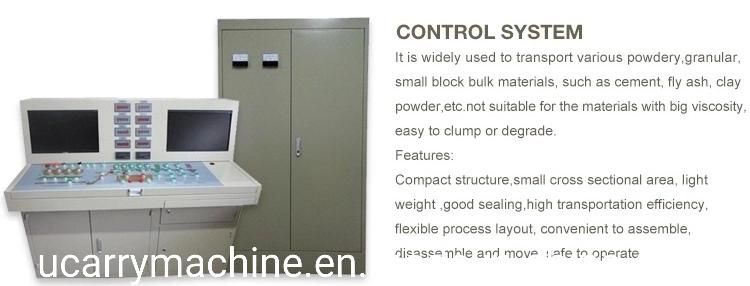

Automatic control system with industrial control computer or PLC has faster running speed and high efficiency .
The function of automatic feeding compensation ,scale deducting and drop self correcting ,can improve the weighting
precision .The moisture probe can be equipped to achieve water on-line testing and proportion automatic correction
to control the quality of concrete.

Model	HLS60	HLS90	HLS120	HLS180	2HLS240	2HLS360
Theoretical productivity	60	90	120	185	240	360
Mixer model	JS1000	JS1500	JS2000	JS3000	2 *JS2000	2*JS3000
Discharging height(m)	3.8	3.8	3.8	3.8	3.8	3.8
Aggregate weighing precision(%)	±2	±2	±2	±2	±2	±2
Water weighing precision(%)	±2	±2	±2	±2	±2	±2
Cement weighing precision(%)	±1	±1	±1	±1	±1	±1
Additive weighting precision(%)	±1	±2	±2	±2	±2	±2
Max cement weight (kg)	600	1200	1500	2000	2*1500	2*2000
Max aggregate weight (kg)	3000	4000	5000	6500	2*5000	2*6500
Max weight value of water scale(kg)	300	500	500	600	2*500	2*600
Max weight value of additive kg)	40	50	50	60	2*50	2*60
Convey capacity of screw conveyor (t/h)	35	50	50	60	50	60
Silo capacity (t)	100	100/200	100/200	100/200	100/200	200/300
Rated power (kw)	100	132	200	232	2*200	2*235
Operating weight (t)	50	60	80	95	2*80	2*95

PACKING & DELIVERY
WHY CHOOSE US
