• Model NO.：230*72*50
• Links：50(Can Be Customized)
• Length：3096mm
• Warranty：12months
• Color：Black
• Weight：46.87kgs
• Material：Rubber and Steel
• Transport Package：Wood Pallet or Bare Packaging
• Specification：230*72*50
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. 230*72*50 Links 50(Can Be Customized) Length 3096mm Warranty 12months Color Black Weight 46.87kgs Material Rubber and Steel Transport Package Wood Pallet or Bare Packaging Specification 230*72*50 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 Pieces/Month

Product Description

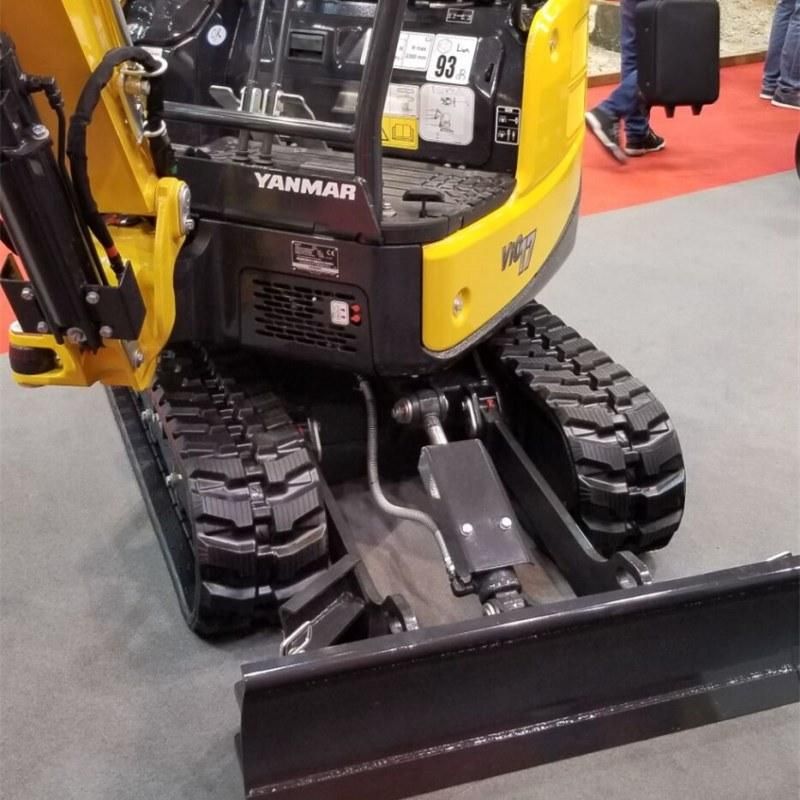

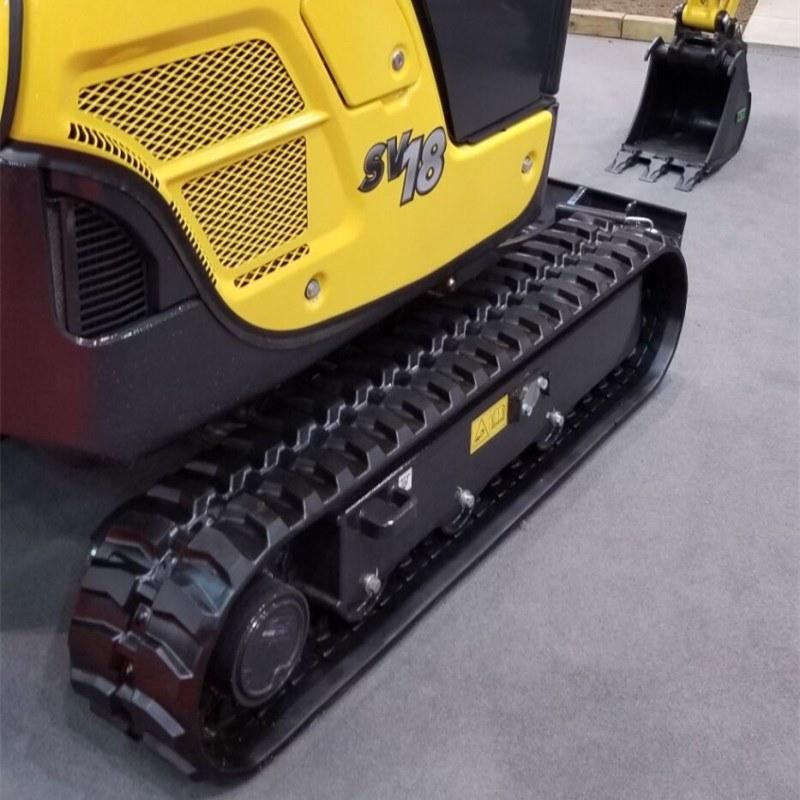

Commodity: Excavator Track(230*72*50)

Size:Width230*Pitch72*Links 50

Weight:46.87kg

Link and lenght can be adjustable

Warranty:Guarantee one year under normal use




Appliciation:

mainly used in excavator and other model number can be used

in snowblower,snowmobile,robot,wheelchair,(mini) excavators,track loaders,pitch

paver,agricultural,harvest,dumpers...etc.


MODEL	ORIGINAL SIZE
RV042  (AICHI)	200X72X50
YFW5D.1 (HANIX)	230X72X50
110H (HUTTER)	230X72X50
120H (HUTTER)	250X72X52
WB12H (WINBULL)	230X72X50
WB12H (YAMAGUCHI)	230X72X50
5D.1 (YANMAR)	230X72X50
8R (YANMAR)	230X72X50
C10R.1 (YANMAR)	230X72X50
C10R.3 (YANMAR)	230X72X50
C8R (YANMAR)	230X72X50
CD7CDA (YANMAR)	230X72X50
YEW5D1 (YANMAR)	230X72X50
YEW8R (YANMAR)	230X72X50
YFW5D1 (YANMAR)	230X72X50
YFW8R (YANMAR)	230X72X50

Characteristics of rubber track:

1).Less damage to the ground surface


2).Low noise


3).High running speed


4).Less vibration;


5).Low ground contack specific pressure


6).High tractive force


7).Light weight


8).Easy to change


Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.


Parameters:

size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1

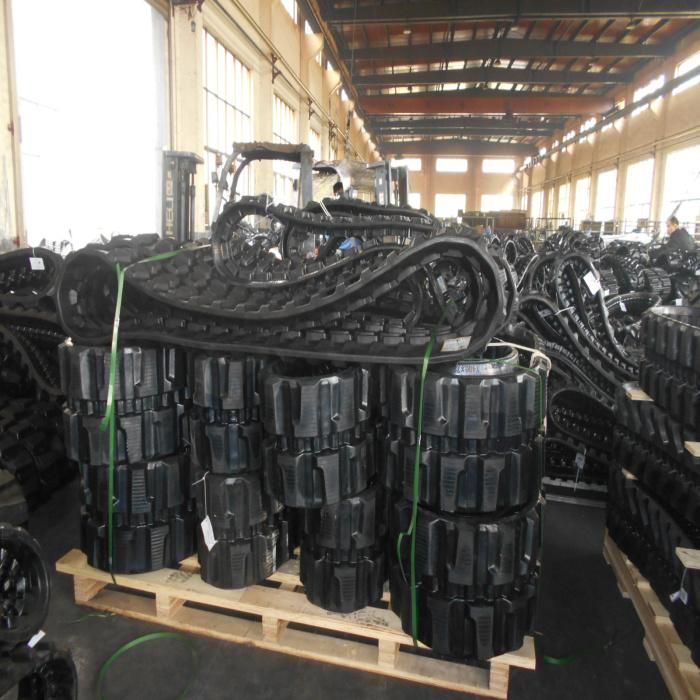

Warehouse:
