Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：After Service,Online Contact , Spare Parts for Fre
  • Warranty：One Year Warranty
  • Type：Paver
  • Object：Asphalt Concrete Pavement
  • Moving Type：Mobile
  • Mixing Method：Intermittent Compulsory

Base Info

  • Model NO.：RP453L
  • Automatic Grade：Automatic
  • Product Capacity：40～400t,h
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Rated Power：73.5kw
  • Paving Width：1800-4500mm
  • Transport Package：Roro,Nude,Container
  • Specification：6260*1800*3745 mm
  • Trademark：Sinomada
  • Origin：China
  • HS Code：8479102100
  • Production Capacity：100units,Month

Description

Overview Product Description

Product Parameters



ItemRP453LUnitBasic paving width1.8mMax paving width4.5mMax paving thickness280mmPaving speed0~18m/minTravel  speed0~21Km/hHopper capacity12tTheoretical productivity capacity240t/hGradeability≥20%Pavement evennesss≤3mmTransverse leveling accuracy±0.2%Centre crown ratio≤5%Engine modelSC4H /Engine power73.5kWEngine speed2000r/minVibrating speed0~1500r/minVibrating trip4mmCrown adjustment-1~3%Machine weight11tMaximum working condition quality11.9tDiesel tank capcity140LHydraulic fuel tank capacity140LOverall dimensions (L*W*H)6242*4753*3728mm Detailed Photos

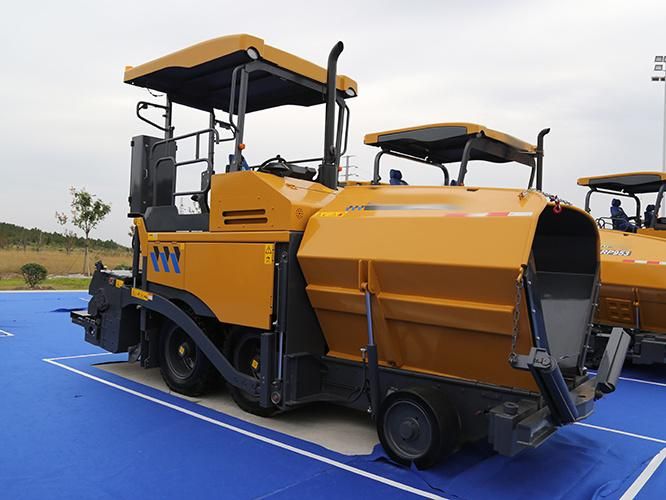

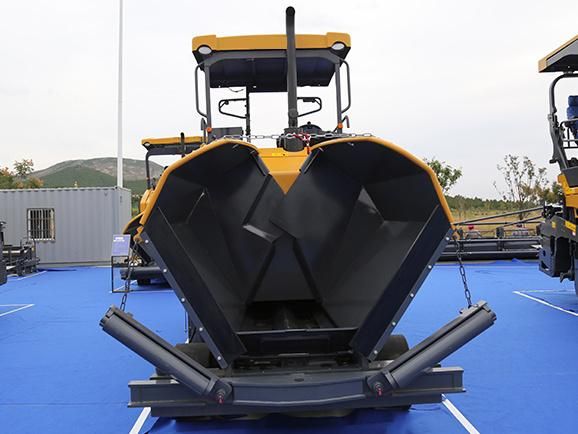

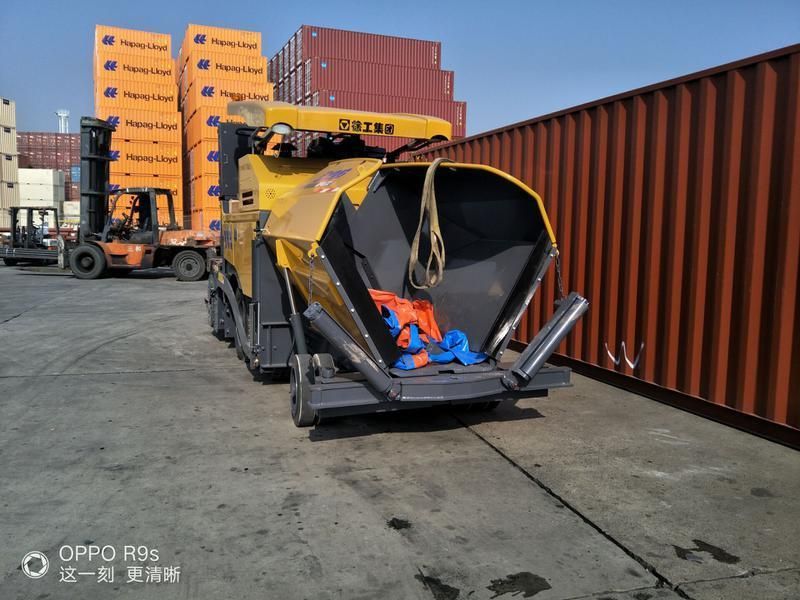

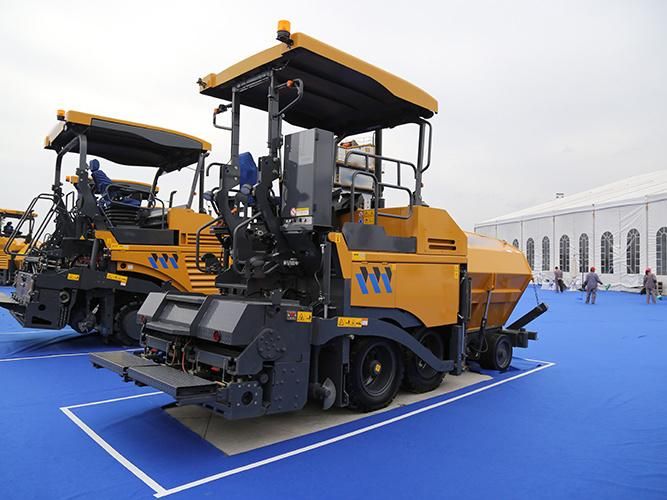

Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)Paving Machine 4.5m Wheeled Asphalt Concrete Paver (RP453L)
