• Model NO.：SC-511
• Vibrating Amplitude：1.0mm
• Certification：SGS, TUV
• Condition：New
• Color：Green, Orange
• Pressure：2-5MPa
• Power：5.5kw
• Hopper Volume：50-130L
• Screw Length：400mm
• Transport Package：Wooden Box
• Specification：1850*590*830mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500sets,Month

Basic Info.

Model NO. SC-511 Vibrating Amplitude 1.0mm Certification SGS, TUV Condition New Color Green, Orange Pressure 2-5MPa Power 5.5kw Hopper Volume 50-130L Screw Length 400mm Transport Package Wooden Box Specification 1850*590*830mm Trademark Yongchuang Origin China Production Capacity 500sets/Month

Product Description

              Diesel Mortar Spraying Pump Machine With two years Warranty
Machine Application :

The machine is a screw-type high-pressure mortar spraying machine, advanced technology. Operation and maintenance is simple, without special training can be skilled operators. Mortar spraying machine is mainly used for building exterior walls, cement mortar spraying and spraying mortar external wall insulation materials, refractory coating.

Machine Feature :

1. The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator.

2. Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.

3. The rotor / stator pump ensures the material is pumped and sprayed out continuously and evenly.

4. The machine always works with efficiency and silence.

5. With air vavle remote-control function.

6. The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.

Machine Parameter :



Machine model	SC-311	SC-511
Motor Power	4KW	7.5KW
Machine weight	150Kg	300Kg
Machine size	1600*450*950mm	1700*600*1000mm
Sand ash ratio	1:03	1:03
Maximum particle diameter	≤3MM	≤5MM
Working pressure	3-6MP	5-8MP
Machine voltage	220V/380V	380V
Output	150 cubic meters / hour	200 cubic meters / hour
Conveying flow	2 cubic meters / hour	3 cubic meters / hour
Scope of application	Mortar, putty, paint	Mortar

High Capacity as follows :


Machine model	SC-125                                       German mortar spraying machine
Motor Power	12.5KW
Machine weight	320KG
Machine size	1800*650*1000mm
Output	400 cubic meters / hour
Conveying flow	5 cubic meters / hour
Sand ash ratio	1:03
Maximum particle diameter	≤5MM
Machine voltage	380V
Scope of application	Mortar

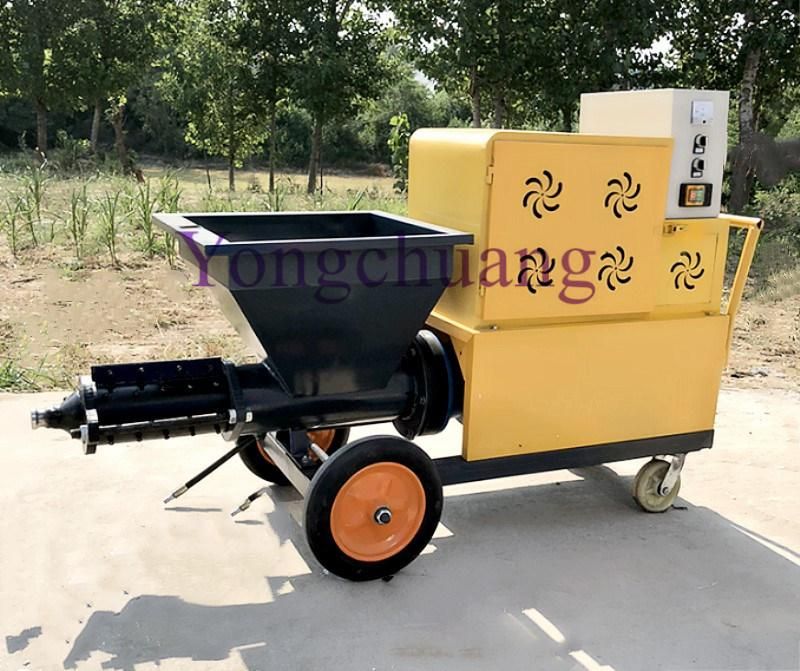

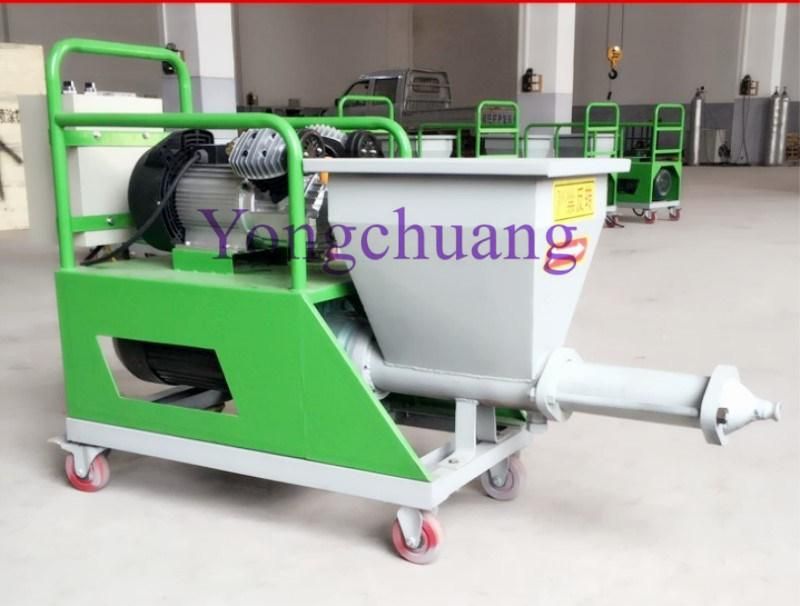

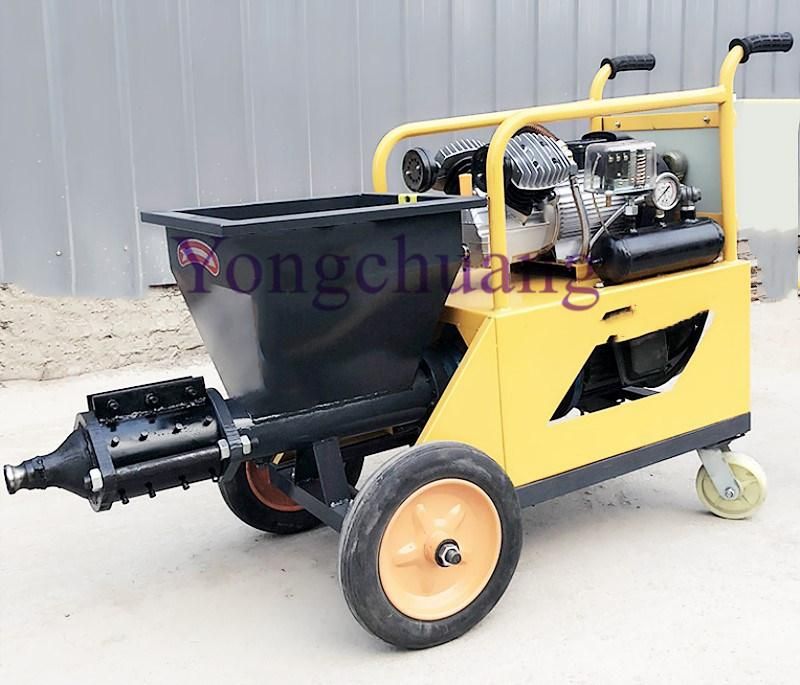

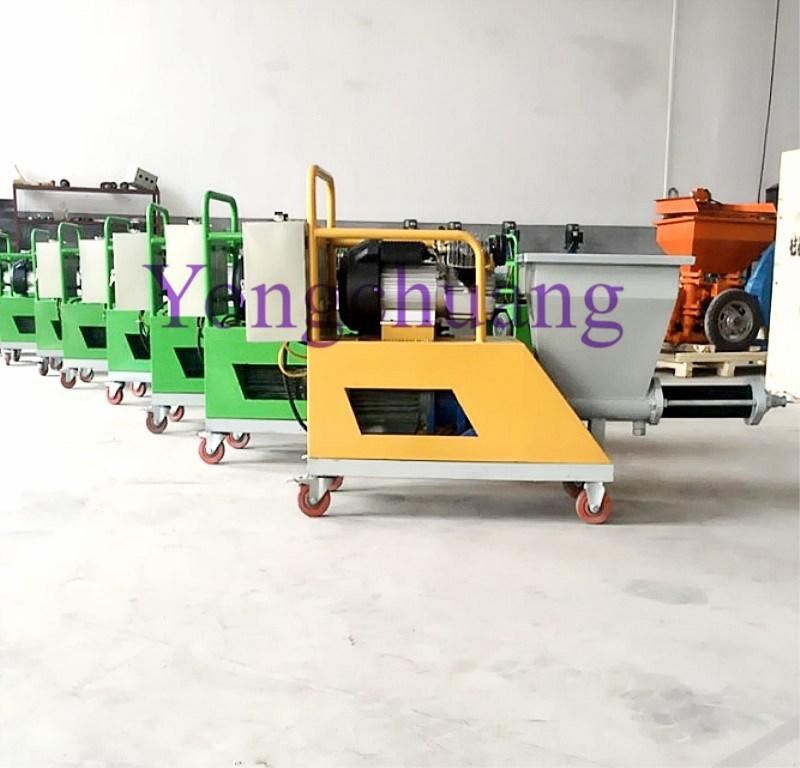

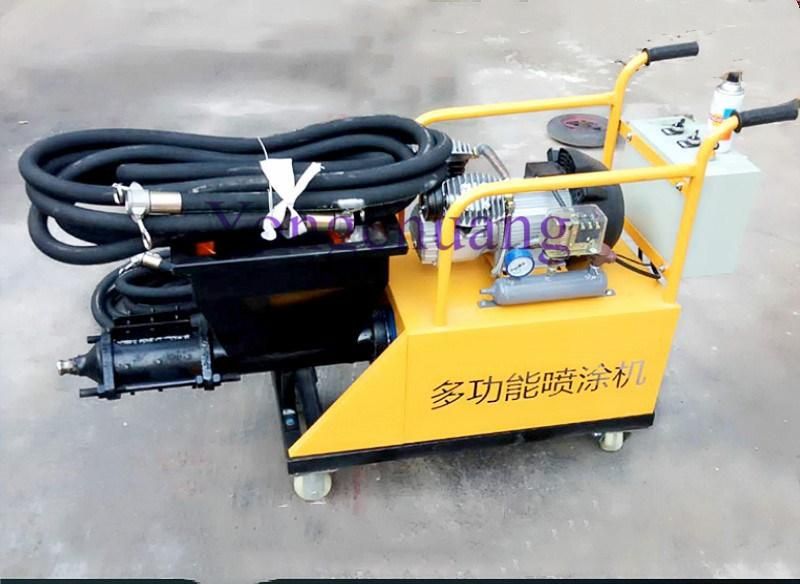

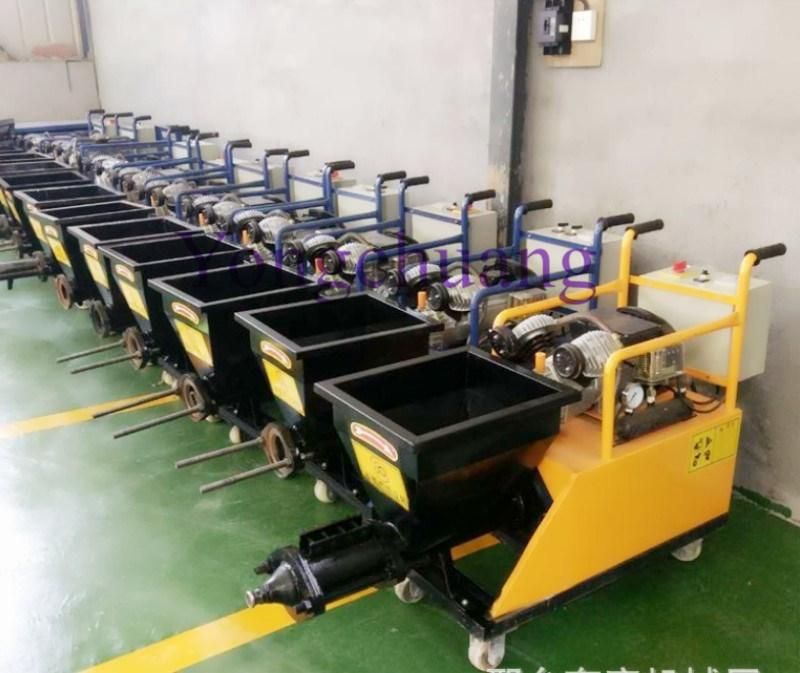

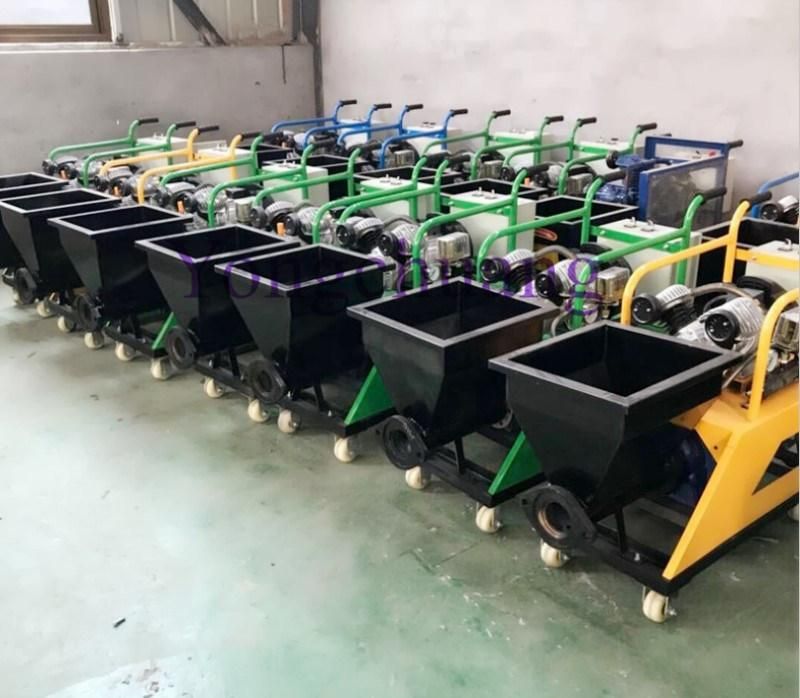

Machine Pictures:
