• Model NO.：957H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Large Loader

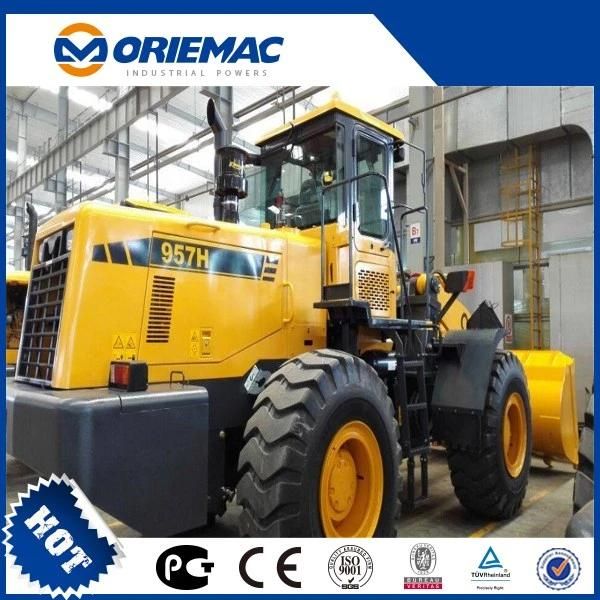

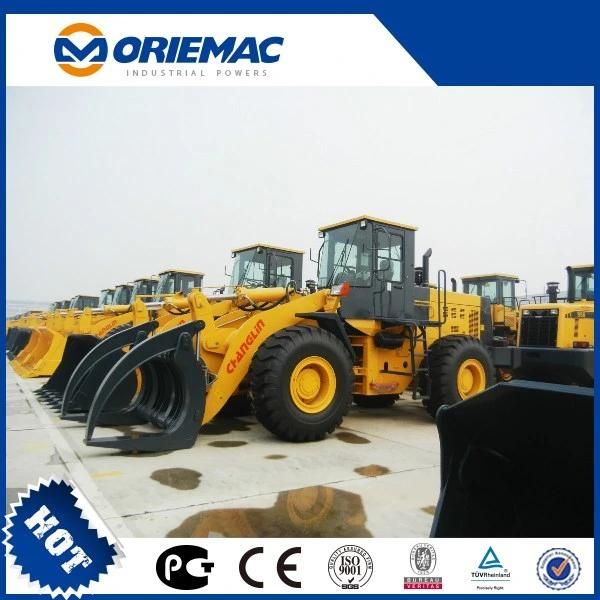

• Product Name：957h Wheel Loader
• Bucket Capacity：3m3
• Weight：16700kg
• Operate Type：Pilot Control
• Transport Package：Nude Packing
• Specification：8130x2946x3450mm
• Trademark：Changlin SINOMACH
• Origin：China
• HS Code：84294019
• Production Capacity：100 Units,Month

Overall Dimension

1

Length (with bucket on ground)

8130/8270(mm)

2

Width (to the outside of wheels)

2800(mm)

3

Bucket width

2946(mm)

4

Height (to the top of the cab)

3450(mm)

5

Wheel base

3200(mm)

6

Tread

2200(mm)

7

Min. ground clearance

450(mm)

Main Technical Specification

1

Rated load

5000(Kg)

2

Operating weight

16700KG

3

Rated bucket capacity

3.0(m³)

4

Max. breakout force

165kN

5

Max. traction force

150kN

6

Max. dump clearance

3100(mm)

7

Dump reach

1150(mm)

8

Dump angle at any position

≥45°

9

Digging depth (with bucket bottom horizontal)

165(mm)

10

Min. turning radius

(1) Outside of bucket

6775(mm)

(2) Outside of front wheel

6098(mm)

11

Pivot angle frame

38°

12

Oscillating angle of rear axle

+11°

13

Lifting time of bucket

≤5.6(sec.)

14

Lowering time of bucket

≤3.7(sec.)

15

Dumping time

≤1.7(sec.)

16

Traveling speed (Km/h), 3 forward and 3 reverse

(1) 1st gear

6.8/8

(2) 2nd gear

10.8/14.3

(3) 3rd gear

32/34.1

Diesel Engine

1

Model

 6CT AA 8.3-C215 (TIER2)

SHANGCHAI SC11CB220G2B1 Engine

2

Type

Direct injection. Turbocharge. Water cooling

3

Rated output

160 (kW)

162(Kw)

4

Inter-bore of cylinder/stroke

114/135 (mm)

121/152(mm)

5

Total exhaust of cylinder

8.3 (L)

10.5(L)

6

Model of starting motor

42MT

KB-24V

7

Power of start motor

8.2(KW)

7.5(KW)

8

Voltage of starting motor

24(V)

24(V)

9

Rated speed

2200(r/min)

2200(r/min.)

10

Max. Torque

998(N.M)

843±6%(N.m)/(1400r/min)

11

Starting type

Electric

Electric

12

Min. specific fuel consumption

207(g/Kw.h)

230(g/Kw.h)

13

Engine specific oil consumption

0.9-1.6(g/Kw.h)

0.95-1.77(g/Kw.h)

14

Net weight

617(kg)

960(Kg)

Transmission System

1. Torque Converter

1

Model

957H.2

2

Type

3-elements. Single stage

3

Torque ratio

3.35

4

Cooling type

Pressure oil circulating

2. Transmission Case

1

Model

CHANGLIN 957H.4

2

Type

Power shift, constant- mesh spur gear

3

Gear shift position

3 forward and 3 reverse gears

3. Axle and Tire

1

Type of main reducer

Spiral bevel gear, single stage

2

Gear ratio of main reducer

4.625

3

Type of final reduce

Single stage planetary

4

Gear ratio of final reducer

4.9286

5

Gear ratio

22.795

6

Max. drawing force

150kN

7

Size of tire

23.5-25-16PR

Working Device Hydraulic System

1

Model of oil pump

JHP 3160

2

Model of multi-way directional valve

GDF-32-YL18/D32II-YL20

Steering System

1

Type

Middle articulated frame. Full-Hydraulic steering

2

Model of steering pump

JHP2080S

Brake System

1

Type of traveling brake

Caliper disc brake Dual pipelines, air over oil activate 4 wheel brake

Oil Capacity

1

Fuel(diesel)

250(L)
