• Model NO.：Skid Steer Loader
• Max Driving Speed：12km,H
• Max Grade Ability：25
• Max Excavation Ability：More Than 20kn
• Lifting Time of Arm：Less Than 5s
• Total Time of Shovel,Lift and Tipping：Less Than 10.5s
• Pressure of Hydraulic System：21MPa
• System Voltage：12V
• Fuel(Diesel) Filling Capacity：88L
• Lube Filling Capacity：10L
• Hydraulic Oil Filling Capacity：70L
• Rated Operating Capacity：720-1100kg
• Transport Package：Standard Export Packaging
• Trademark：NICOSAIL
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：150,Month

Basic Info.

Model NO. Skid Steer Loader Max Driving Speed 12km/H Max Grade Ability 25 Max Excavation Ability More Than 20kn Lifting Time of Arm Less Than 5s Total Time of Shovel,Lift and Tipping Less Than 10.5s Pressure of Hydraulic System 21MPa System Voltage 12V Fuel(Diesel) Filling Capacity 88L Lube Filling Capacity 10L Hydraulic Oil Filling Capacity 70L Rated Operating Capacity 720-1100kg Transport Package Standard Export Packaging Trademark NICOSAIL Origin Shandong, China HS Code 8429510000 Production Capacity 150/Month

Product Description

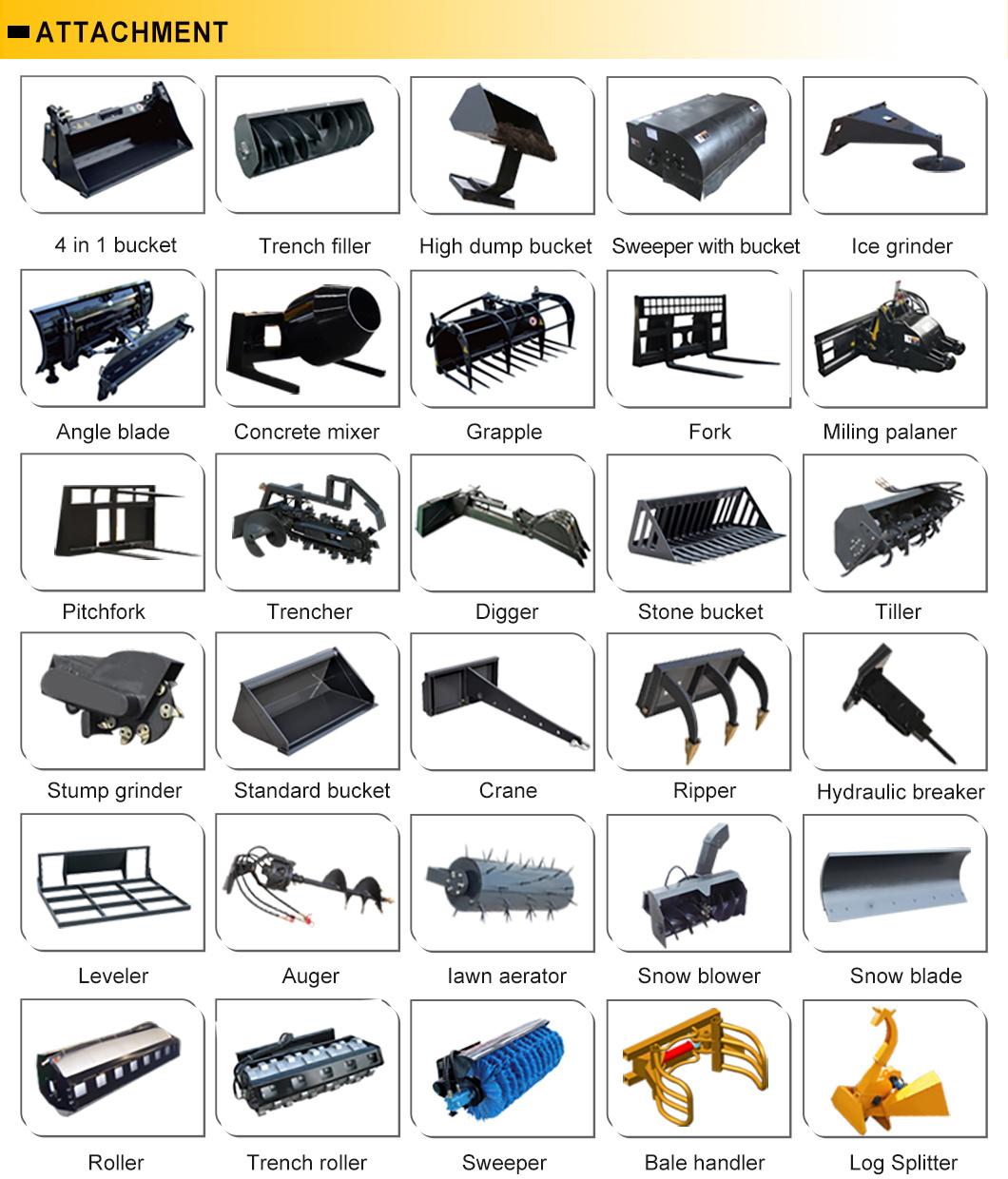

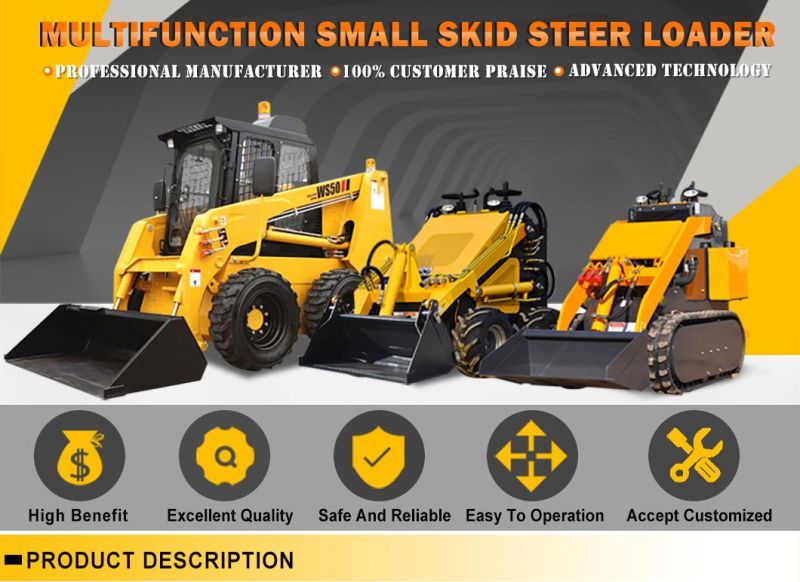

New Hydraulic Mini Skid Steer Loader With Variously Attachment For SaleSkid steer loader is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable mulitifunctional tools, it can finish all kinds of comprehensive construction demand easily. The apperance, heightlifting, weightlifting and driving comfort are all the top-notch loader in the world.
Always supply the high quality machine and Variously styles can meet the customers'all kinds of request.
Different models for option according to your needs:
WS50, WS60, WS65, WS75, WS85; from 50hp tp 85hp, with rated load 750kg to 930kg. Welcome to pick up our products.

Model	WS50	WS65	WS75	WS85
Rated operating capacity	720kg	900kg	1000kg	1100kg
Rated bucket capacity	0.36M3	0.41M3	0.52M3	0.52M3
Weight	2835kg	3200kg	3300kg	3900kg
Max driving speed	12km/h	12km/h	12km/h	12km/h
Max traction	≥25.4KN	≥28.2KN	≥30KN	≥32KN
Max grade Ability	25°	25°	25°	25°
Max excavation ability	≥18.4KN	≥20KN	≥20KN	≥20KN
Lifting time of arm	≤5S	≤5S	≤5S	≤5S
Total time of shovel,lift and tipping	≤10.5S	≤10.5S	≤10.5S	≤10.5S
Pressure of hydraulic system	21MPa	21MPa	21MPa	21MPa
Tyre inflation pressure	0.41-0.45MPa	0.41-0.45MPa	0.41-0.45MPa	0.41-0.45MPa
System voltage	12V	12V	12V	12V
Fuel(diesel) filling capacity	88L	88L	88L	88L
Lube filling capacity	10L	10L	10L	10L
Hydraulic oil filling capacity	70L	70L	70L	70L

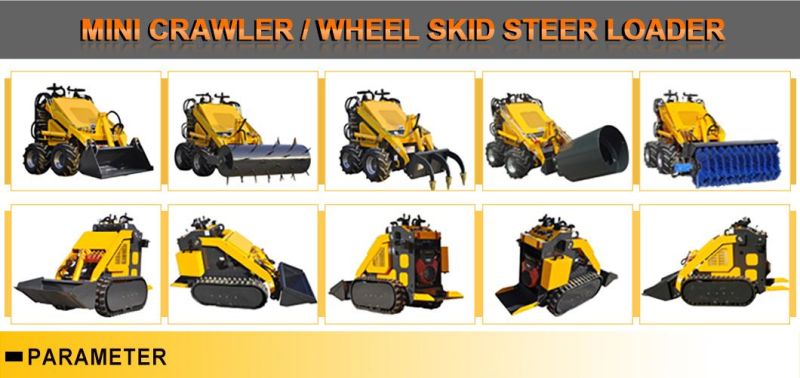

Different models for option according to your needs:

Model	Crawler 280	Crawler 380	Wheel 280	Wheel 380
Max. working height	2065mm	2128 mm	2072 mm	2155 mm
Max. pin height	1803mm	1869 mm	1809 mm	1896 mm
Max. dump height	1386 mm	1473 mm	1393 mm	1500 mm
The highest point discharge distance	471 mm	399 mm	468 mm	348 mm
Max. unloading angle	32°	30°	32°	30°
Total height	1309 mm	1218 mm	1316 mm	1245 mm
The height from the ground	123 mm	105mm	130 mm	130 mm
Wheelbase	690 mm	612mm	686 mm	636 mm
No bucket length	1778 mm	1752 mm	1778 mm	1752 mm
Total width	800 mm	1060 mm	883(903) mm	1033 mm
Bucket width	820 mm	1150mm(980/1215mm)	820 mm	980 mm
Total length(with bucket)	2210 mm	2206 mm	2210 mm	2206 mm
Turning radius	1236mm	1317 mm	1237mm	1307 mm
