• Model NO.：PCM-170
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Product Name：Mobile Concrete Mixer
• Power：650W
• Voltage：60Hz
• Motor Speed：2280 Rpm
• Mixing Drum Speed：25-30r,Min
• Diameter of Drum Open：14.5 Inches
• Net Weight：62kgs

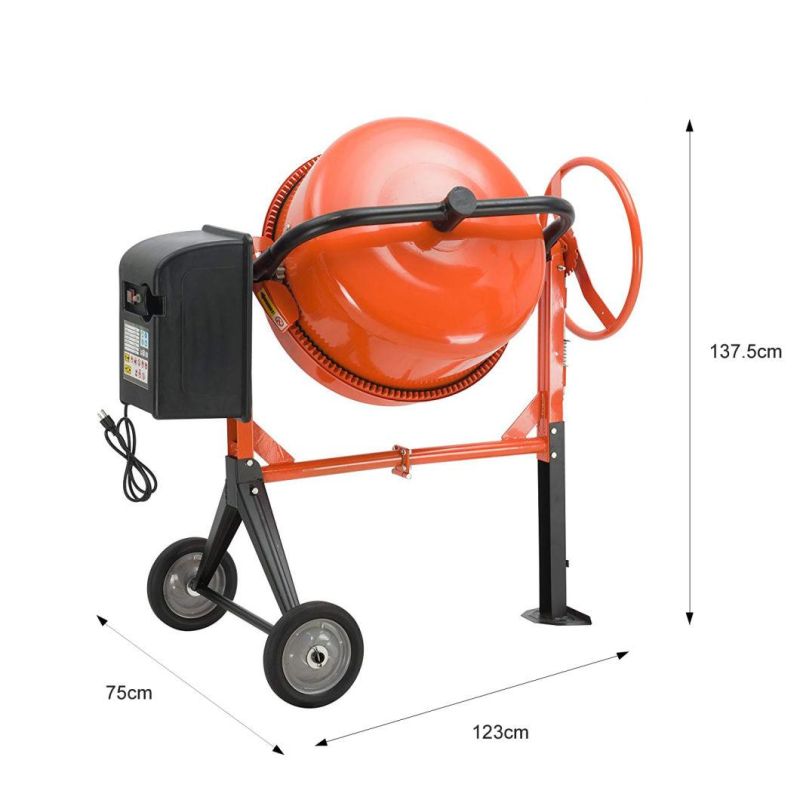

• Packing Size：810*700*525mm
• Transport Package：Carton
• Specification：170L
• Trademark：ACE
• Origin：Ningbo, China
• HS Code：84743100
• Production Capacity：30000 PCS,Year

Basic Info.

Model NO. PCM-170 Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE Condition New Color Yellow Product Name Mobile Concrete Mixer Power 650W Voltage 60Hz Motor Speed 2280 Rpm Mixing Drum Speed 25-30r/Min Diameter of Drum Open 14.5 Inches Net Weight 62kgs Packing Size 810*700*525mm Transport Package Carton Specification 170L Trademark ACE Origin Ningbo, China HS Code 84743100 Production Capacity 30000 PCS/Year

Product Description

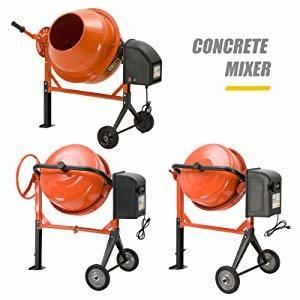

170L Electric Mobile Concrete mixer with 650w motor

Heavy duty cement mixer ideal for concrete, stucco, and mortar. Perfect machine for inoculating seeds and mixing feeds. All-steel construction with large wheels for easy handling. This unit can mix up to 270 LBS of cement with a heavy duty 4/5 HORSEPOWER MOTOR

Concrete Mixer 170L Features :

1. Widely used in the field of small-scale architecture and decoration for mixing mortar,cement and feeds etc.
2. Heavy duty steel drum and electric motor.
3. It is easy to operation and with a small volume.
4. Foldable frame for easy stock and transportation.
5. Solid frame for high stablity.
6. 100% copper wire motor for durable working.
7.Mixing drum thickness:1.2mm(UpperDrum)/1.5mm(LowerDrum)

Technical Specification:

Item number	Drum  capacity	Motor power	G.W/N.W	Dimension	Q'ty/20'	Q'ty/40'
ACE-PCM170	170L	650W	62/59kgs	81*70*52.5cm	76pcs	153pcs

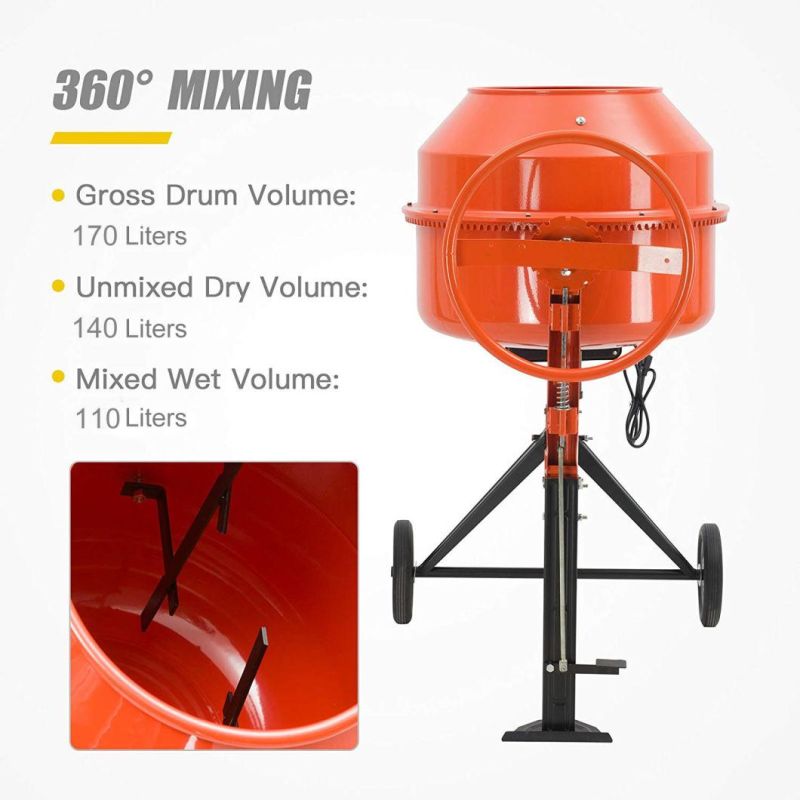

360 Degree Mixing

•Inertial stirring achieving 360 degrees mixing without dead ends
•Gross Drum Volume: 170 liters
•Unmixed Dry Volume: 140 liters
•Mixed Wet Volume: 110liters
•Mixing Capacity: 2.5 Cubic Feet / 270 LBS

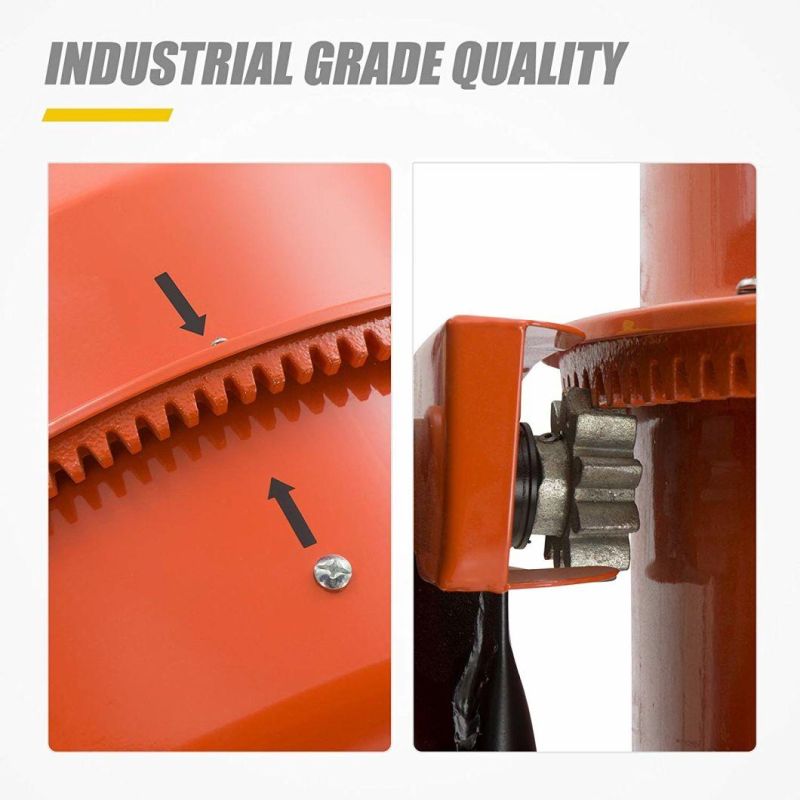

Tightness

•Thickened inner wall provide safety usage and large carrying capacity
•Industrial grade quality shows in every details like material, joint and weld

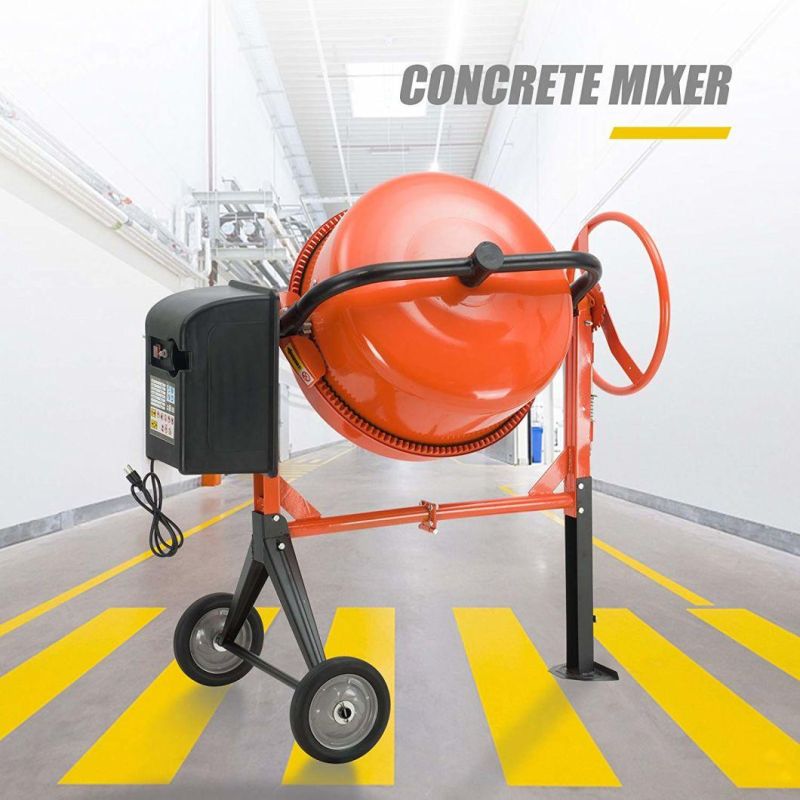

Concrete Mixer

•Industrial grade steel frame cement mixer adds stability and durability
•Meet the CE Certificated
•Ideal for mixing cement, stucco, and mortar

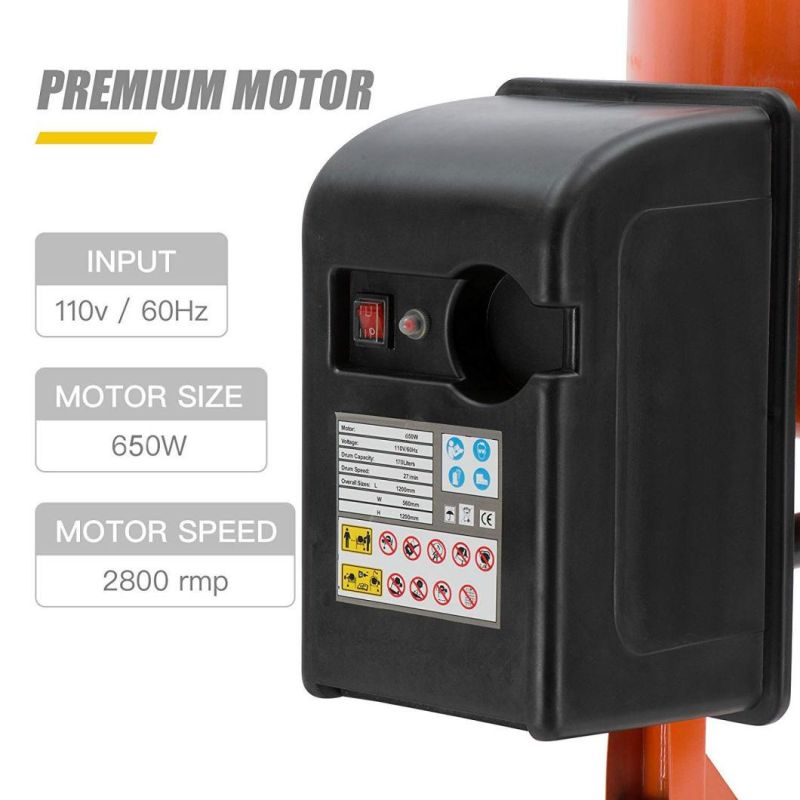

Premium Motor

•Premium motor with copper coil featuring high efficiency and strong power
•Power: 4/5HP Motor, 2880 RPM, 2.3 Amp
•Voltage: 110V, 60Hz

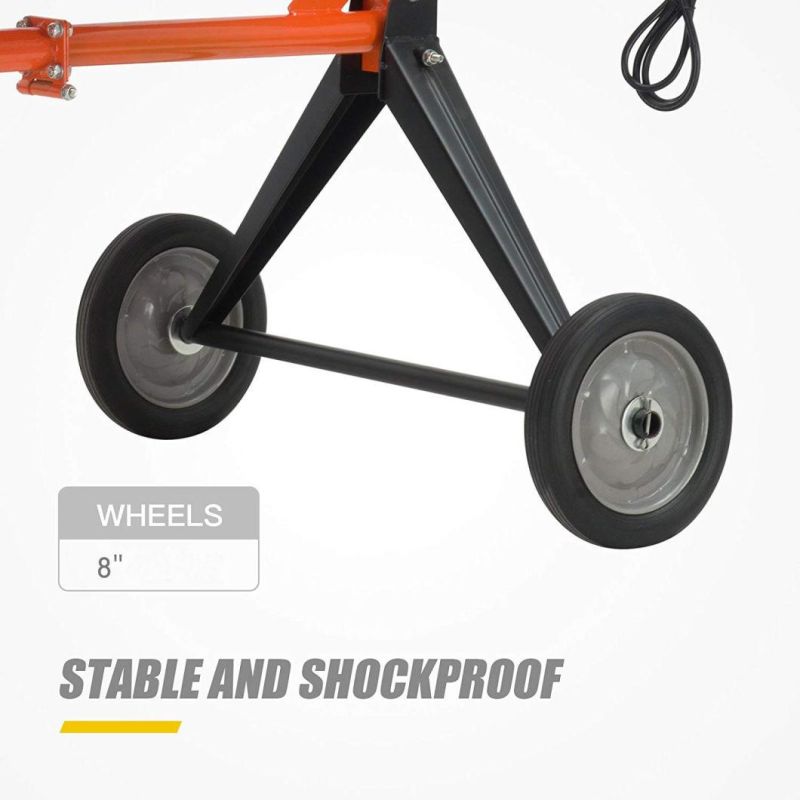

Shockproof

•2Pcs 8" wheels let the mixer more stable
•Wear-resistant and shockproof
•Rubber wheels for easy movement
