• Model NO.：Drilling machine
• Type：Drilling Dig
• Product Name：25m Drilling Dig Machine
• Maximum Output Torque：160 Kn.M
• Maximum Drilling Diameter：2000m
• Maximum Drilling Depth：25mm
• Drilling Speed：25-60 Rpm
• Pressurized Cylinder Maximum Pressure：120 Kn
• Pressurized Cylinder Maximum Lifting for：100 Kn
• Total Weight：28t
• Engine：Cummins
• Rated Power：150kw
• Maximum Torque：425-750 N.M
• Transport Package：Nude Packing
• Specification：7920*3024*3423mm
• Trademark：NONE
• Origin：China
• HS Code：8429510000
• Production Capacity：50 Units Per Month

Basic Info.

Model NO. Drilling machine Type Drilling Dig Product Name 25m Drilling Dig Machine Maximum Output Torque 160 Kn.M Maximum Drilling Diameter 2000m Maximum Drilling Depth 25mm Drilling Speed 25-60 Rpm Pressurized Cylinder Maximum Pressure 120 Kn Pressurized Cylinder Maximum Lifting for 100 Kn Total Weight 28t Engine Cummins Rated Power 150kw Maximum Torque 425-750 N.M Transport Package Nude Packing Specification 7920*3024*3423mm Trademark NONE Origin China HS Code 8429510000 Production Capacity 50 Units Per Month

Product Description

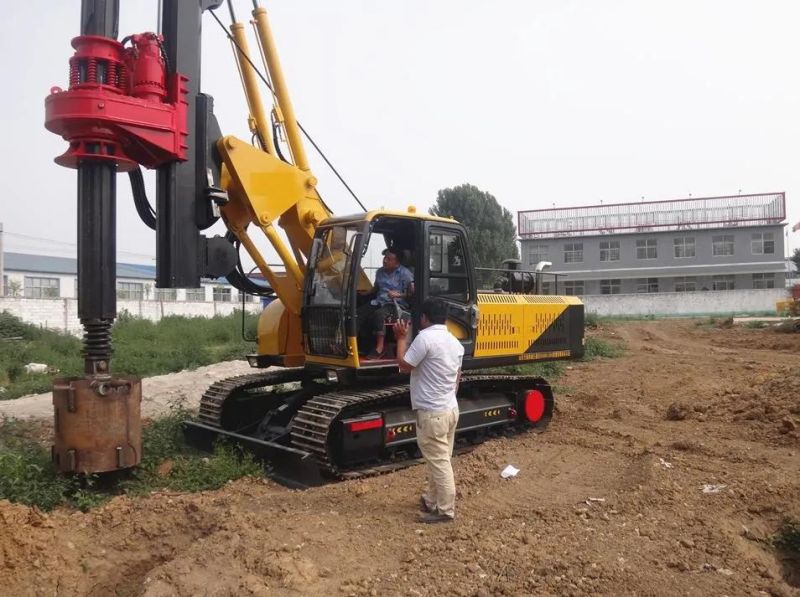

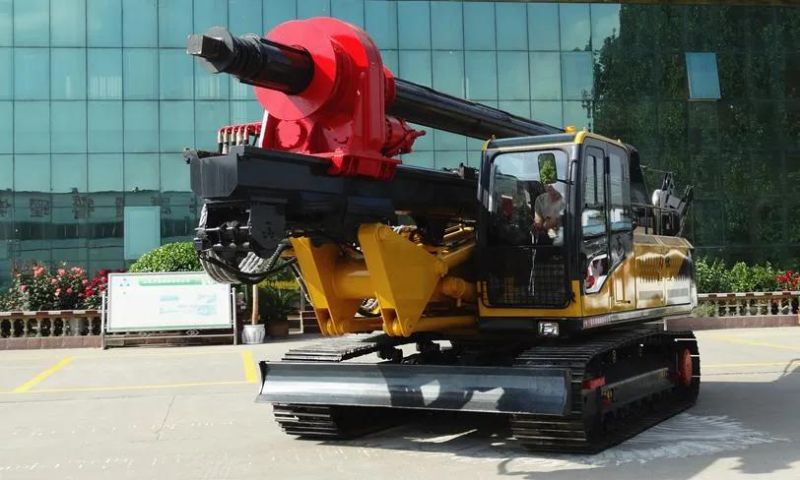

25m Drilling dig Machinery

Maximum output torque	160 kn.m
Maximum drilling diameter	2000 mm
Maximum drilling depth	25 m
Drilling speed	25-60 rpm
Pressurized cylinder maximum pressure	120 kn
Pressurized cylinder maximum lifting force	100 kn
Main hoist maximum lifting force	160 kn
Main hoist maximum lifting speed	45 m/min
Auxiliary hoist maximum lifting force	20 kn
Auxiliary hoist maximum lifting speed	60 m/min
Maximum stroke of cylinder	2500 mm
Mast side wards inclination	±4°
The forward angle	4°
Maximum working pressure	30 mpa
Pilot pressure	4 mpa
Maximum walking speed	5 km/h
Working state height	12000 mm
Working state width	3600 mm
Transport status height	3500 mm
Transport status width	2700 mm
Transport status length	11000 mm
Total Weight	28 t
