• Model NO.：XE135B
• Rated Speed：12.3r,Min
• Maximum Digging Height：8641mm
• Unique Selling Point：Long Lifetime
• Applicable Industries：Construction Works
• Maximum Digging Depth：5538mm
• Max Digging Radius：8296mm
• Hydraulic Valve Brand：Kawasaki
• Hydraulic Pump Brand：Kawasaki
• Operating Weight：13 Tons
• Moving Type：Crawler Excavator
• Engine Brand：Cummins
• Specification：standard
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XE135B Rated Speed 12.3r/Min Maximum Digging Height 8641mm Unique Selling Point Long Lifetime Applicable Industries Construction Works Maximum Digging Depth 5538mm Max Digging Radius 8296mm Hydraulic Valve Brand Kawasaki Hydraulic Pump Brand Kawasaki Operating Weight 13 Tons Moving Type Crawler Excavator Engine Brand Cummins Specification standard Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description



Summary

Dimension(L*W*H):7770×2512×2880mm

Weight:13000kg

Model Number:XE135B

Brand Name:XCMG

Place of Origin:China

Power Type:Diesel

Type:Crawler Excavator

Certification:CE/ISO9001



Details

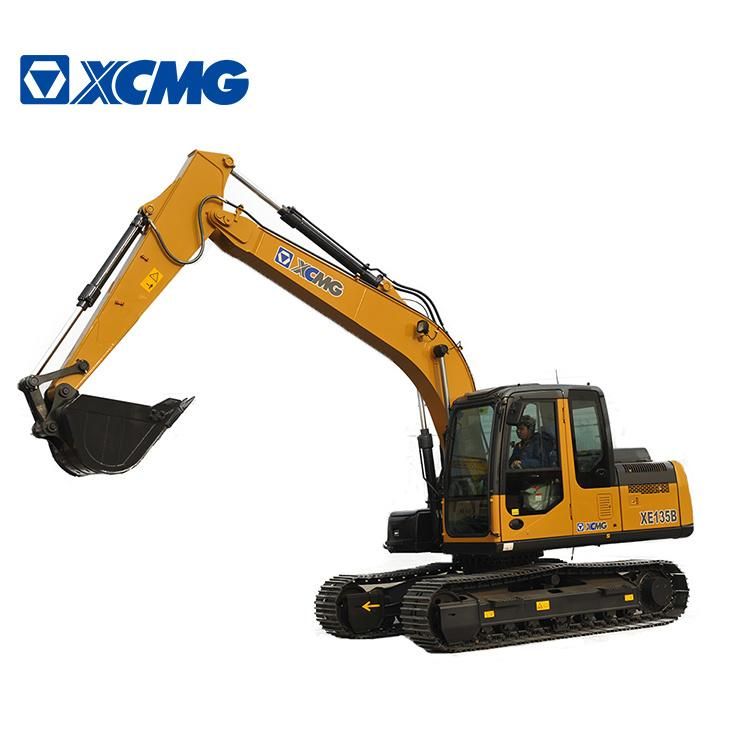

Product Name:XE135B

Display online time:2018-11-21

weight:13000.000kg

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months

Condition:NEW

Moving Type:crawler

Operating weight:13000Kg

Bucket capacity:0.4-0.52m3

Rotating speed:12.3r/min

Ground pressure:42kPa

Bucket digging force:85kN

Max. digging height:8641mm

Max. dumping height:6181mm

Max. digging depth:5538mm

Max. digging reach:8296mm

Min. swing radius:2335mm





Advantage

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
