• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Power：10.3kw-22.1kw
• Rated Speed：2200r,Min
• Hydraulic System Pressure：16MPa
• Climbing Gradient：30°
• Walking Speed：2km-2.7km,H
• Platform Turning Speed：10r,Min
• Maximum Pulling Force：10.5kn-11.5kn
• Total Length：2710-3600mm
• Max Digging Height：3150 mm-3400mm
• Max Dumping Height：1600 mm-2200mm
• Warranty：1 Year

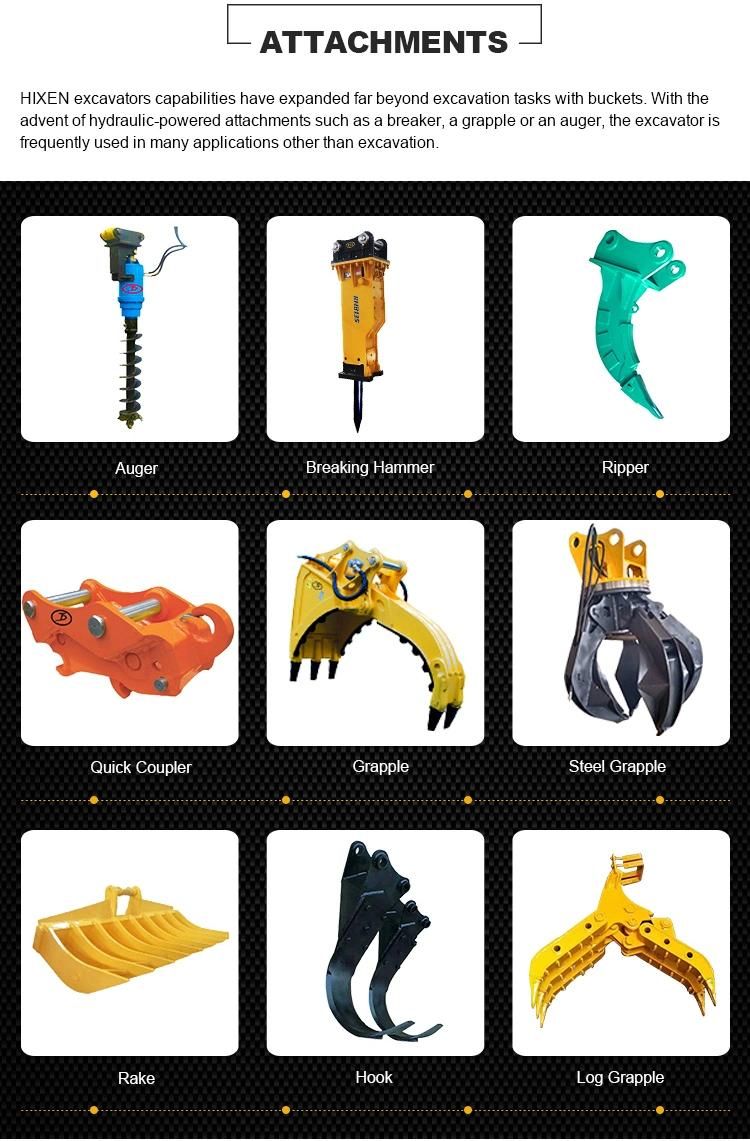

• Multifunction：Auger, Hammer, Rake, Ripper, Gripper
• Other Product：Backhoe Loader, Self Loading Concrete Mixer
• Product Usage：Digging Machine
• Maximum Digging Height Radius：2900mm-4500mm
• Trademark：HIXEN
• Origin：China
• HS Code：8429590000
• Production Capacity：240 Units,Month

Basic Info.

Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Power 10.3kw-22.1kw Rated Speed 2200r/Min Hydraulic System Pressure 16MPa Climbing Gradient 30° Walking Speed 2km-2.7km/H Platform Turning Speed 10r/Min Maximum Pulling Force 10.5kn-11.5kn Total Length 2710-3600mm Max Digging Height 3150 mm-3400mm Max Dumping Height 1600 mm-2200mm Warranty 1 Year Multifunction Auger, Hammer, Rake, Ripper, Gripper Other Product Backhoe Loader, Self Loading Concrete Mixer Product Usage Digging Machine Maximum Digging Height Radius 2900mm-4500mm Trademark HIXEN Origin China HS Code 8429590000 Production Capacity 240 Units/Month

Product Description

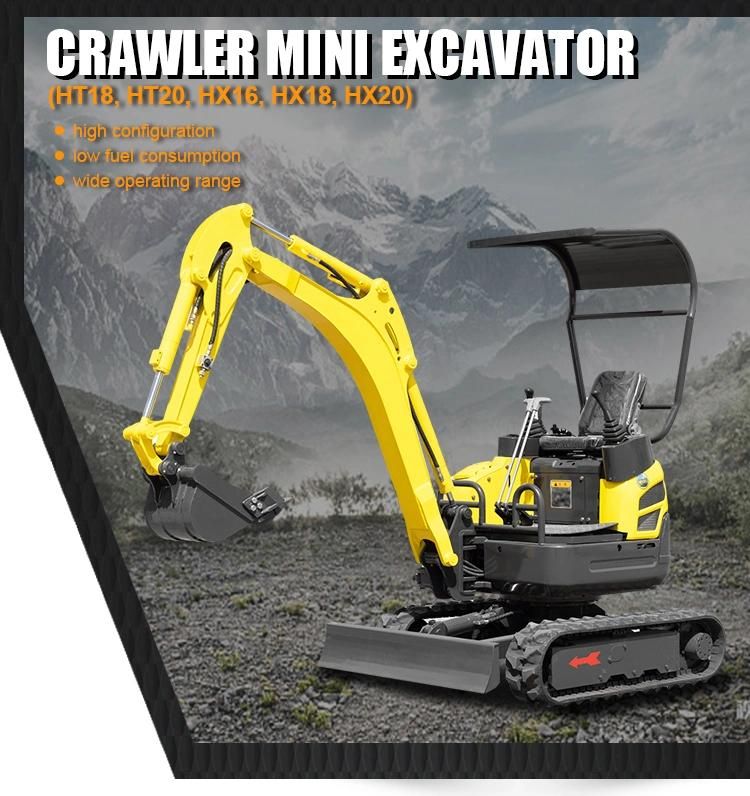

1.8 ton zero tail compact design 2020 new excavators hot selling with Yanmar/Kubota engine





Main Parameters

Model	HT18	HT20
Machine weight	1800 KG	1950 Kg
Bucket capacity	0.05 CBM	0.06 CBM
Engine brand	Yanmar	Yanmar
Engine power	10.3 KW	10.3KW
Pump	Gear pump	Plunger pump
Climbing gradient	30°	30°
Walking speed	2.7 Km/h	3 Km/h
Total length	3000 mm	3200 mm
Total width	1200 mm	980-1300 mm
Total height	2300 mm	2300 mm
Platform turning radius	680 mm	700mm
Crawler length	1450 mm	1450 mm
Crawler width	230mm	230 mm
Maximum digging height	3500 mm	3600 mm
Maximum dumping height	2452 mm	2500 mm
Maximum digging depth	1800 mm	2000 mm
Maximum digging radius	4045 mm	4150 mm

Main Parameters

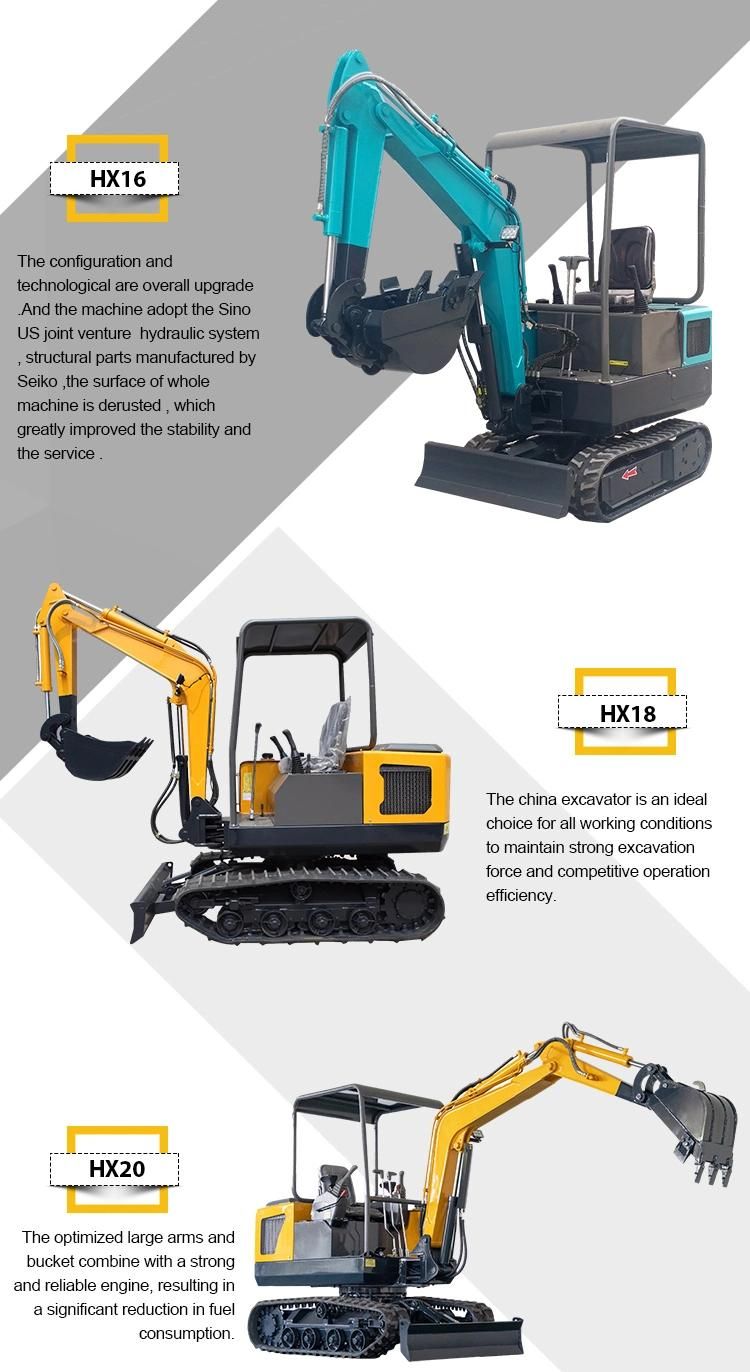

Model	HX16	HX18	HX20
Machine weight	1550 Kg	1800 Kg	1900 Kg
Bucket capacity	0.05cbm	0.06cbm	0.08 cbm
Engine power	18.1KW	22.1KW	22.1KW
Engine rated speed	2200r/min	2200r/min	2200r/min
Climbing gradient	30°	30°	30°
Walking speed	2Km/h	2.7 Km/h	2.7Km/h
Total length	2710 mm	3300 mm	3400 mm
Total width	1000 mm	1200 mm	1200 mm
Total height	2150 mm	2250 mm	2250 mm
Clearance to the ground	190 mm	260 mm	260 mm
Platform width	1000 mm	1060 mm	1200 mm
Maximum digging height	3150 mm	3240 mm	3300 mm
Maximum digging depth	1900 mm	2000 mm	2200 mm
Maximum digging radius	3700 mm	3920 mm	4200 mm
Minimum turning radius	2000 mm	2120 mm	2300 mm
Bulldozer maximum depth	120mm	140 mm	150 mm
Bulldozer maximum raising height	250 mm	260 mm	270 mm

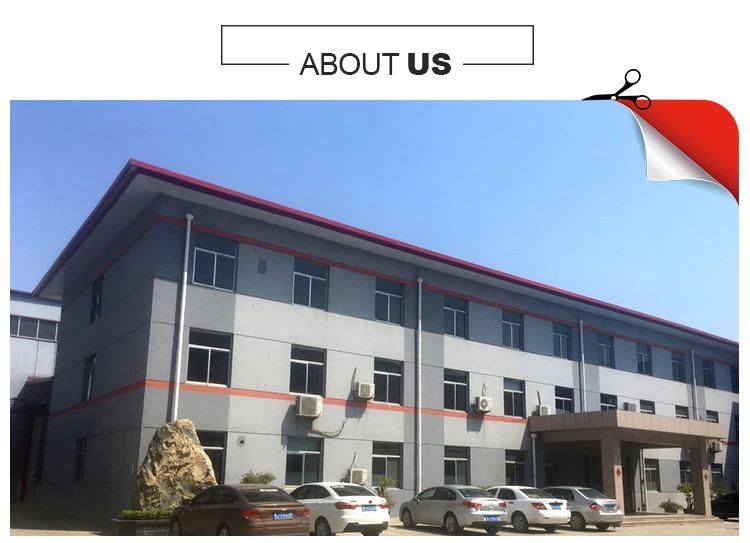

Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines
and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company
has developed into a comprehensive machinery group.

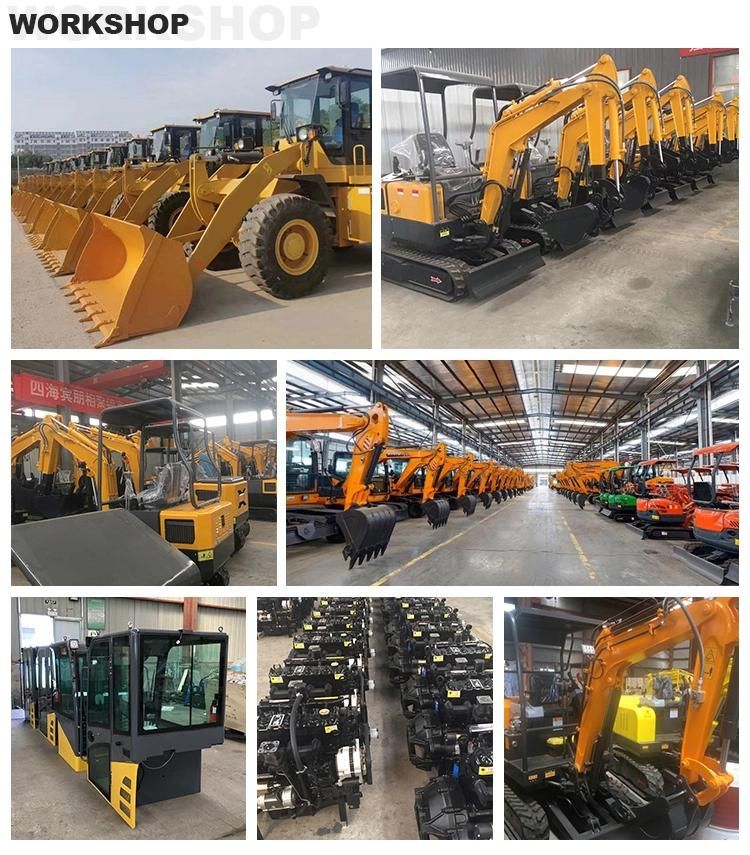

The products mainly include:Wheel loader, excavator, backhoe loader, skid steer loader, forklift, self-loading concrete
mixer and mucking loader etc.Which are widely used in construction, farming, mining and all the related machinery areas.
Besides domestic market, the products have also been supplied to numerous places all over the world which has earned
large reputation and enjoyed great population.
Since established, the company has been devoted to the scientific and technological innovation, precision manufacturing
and all-around service.With all the related certificates, we strictly follow the industry standard, fully control the production
flow guaranteeing high quality of every product.We sincerely welcome your visit to reach a mutual success.




FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time
depends on the distance and transport method which need to be negotiated.

Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3.How long is the product guarantee?
We provide one year quality guarantee.

Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production
process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified
goods safely.

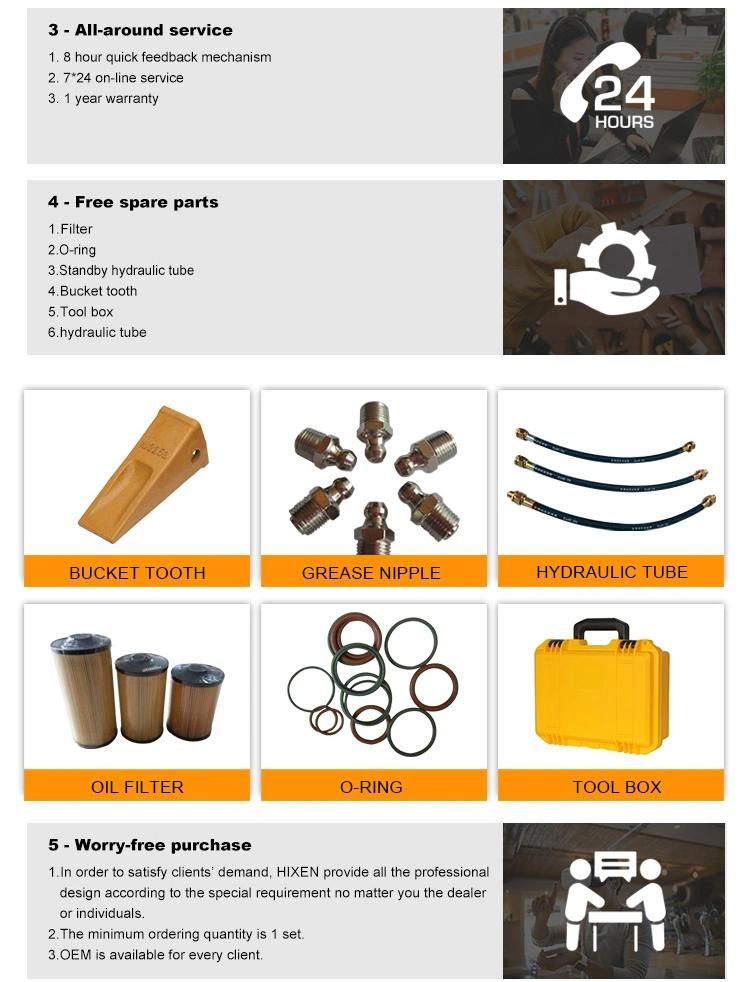

3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble
shooting;Engineers ready for field maintenance and repairing when necessary.

Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start
design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
