• Model NO.：T80
• Condition：New
• Color：Yellow
• Traveling Type：Crawler Bulldozer
• Power：80HP
• Max. Towing Force：66kn
• Engine Model：Lr4a3z-22
• Engine Rated Power：60kw
• Engine Rated Speed：2200 R,Min
• Engine Max. Torque：282n.M
• Transport Package：Bulk
• Specification：SGS
• Trademark：kudat
• Origin：China
• Production Capacity：500PCS,Year

Basic Info.

Model NO. T80 Condition New Color Yellow Traveling Type Crawler Bulldozer Power 80HP Max. Towing Force 66kn Engine Model Lr4a3z-22 Engine Rated Power 60kw Engine Rated Speed 2200 R/Min Engine Max. Torque 282n.M Transport Package Bulk Specification SGS Trademark kudat Origin China Production Capacity 500PCS/Year

Product Description

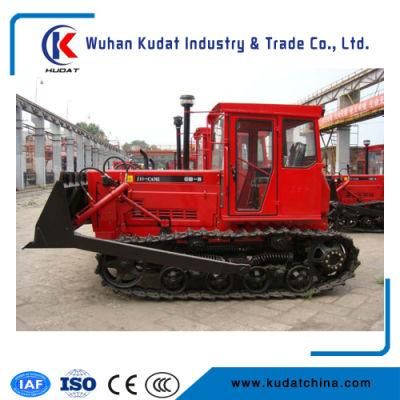

We offer T80 Bulldozer. The diesel engine is manufactured by using joint venture technologies. The traction mechanism is of the semi-rigid suspension car type. The bulldozer adopts the two-plate dry primary clutch, which is easy to maintain. The steering is hydraulically supported and the bulldozer is hydraulically operated.

We still can proivde 80HP, 100HP, 120HP, 140HP and 160HP bulldozer for your reference, for the more, please feel-free to contact with us directly

Model	T80
Total weight	8700kg
Max. towing force	66kN
Engine model	LR4A3Z-22
Engine rated power	60KW
Engine rated speed	2200 r/min
Fuel consumption rate	≤235 g/kw.h
Engine Max. torque	282N.m
Forward 4 gears	2.4~10.4 km/h
Reverse 2 gears	4.9~8.9 km/h
Max. slope angle	≥30°
Caterpillar track board width	400mm
Land pressure	51kpa
Overall length	4860mm Scarifer included
Overall width	2544mm
Overall height	2740mm
Blade width	2544mm
Blade height	880mm
Blade Max.lifting height	784mm
Blade Max. digging depth	357mm
Cutting angle(adjustable)	55°

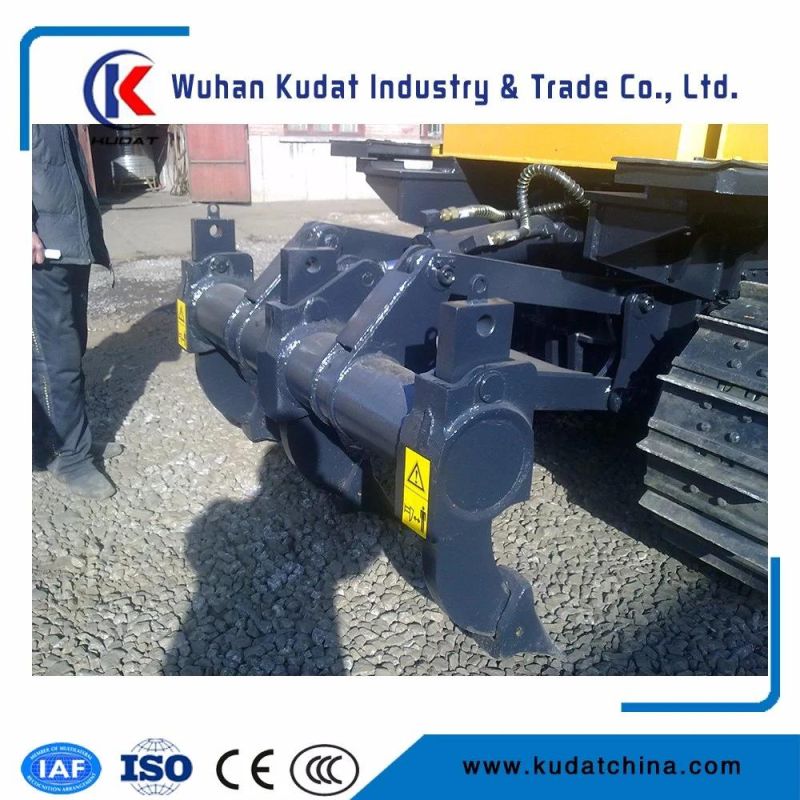

Towing equipment/Scarifier(Optional)	Fixtel/3 teeth
