• Model NO.：HB67K
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Weight：54000kg
• Power：335kw
• Max. Horizontal Conveying Distance：62m
• Max. Vertical Conveying Distance：67m
• Power Type：Diesel
• Concrete Pumping Pressure：8MPa
• Theoretical Pumping Times：25time,Min
• Filling Height：1580mm
• Specification：15780*2500*4000mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：1000 Unit,Units Per Year

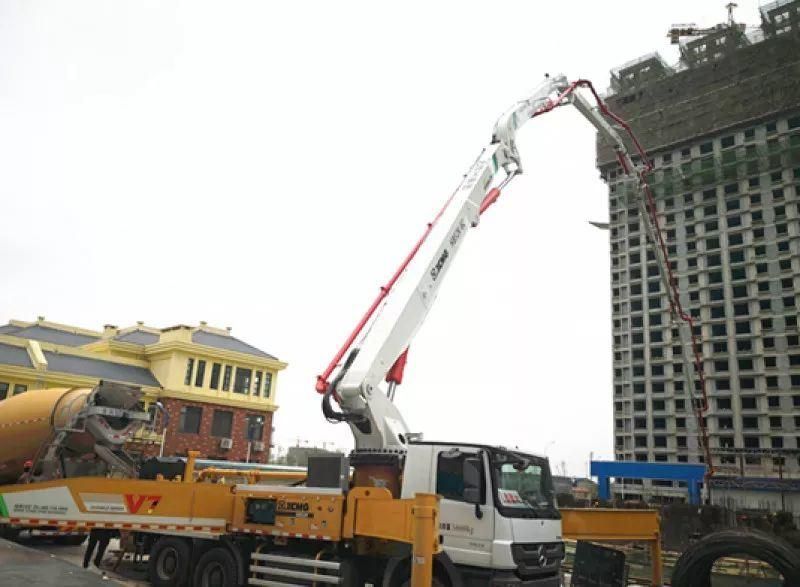

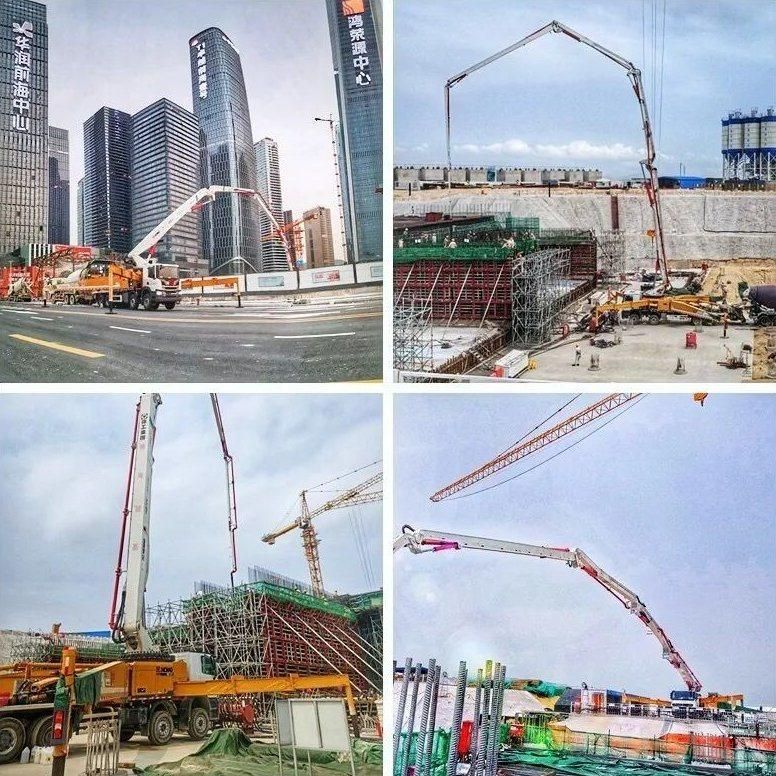

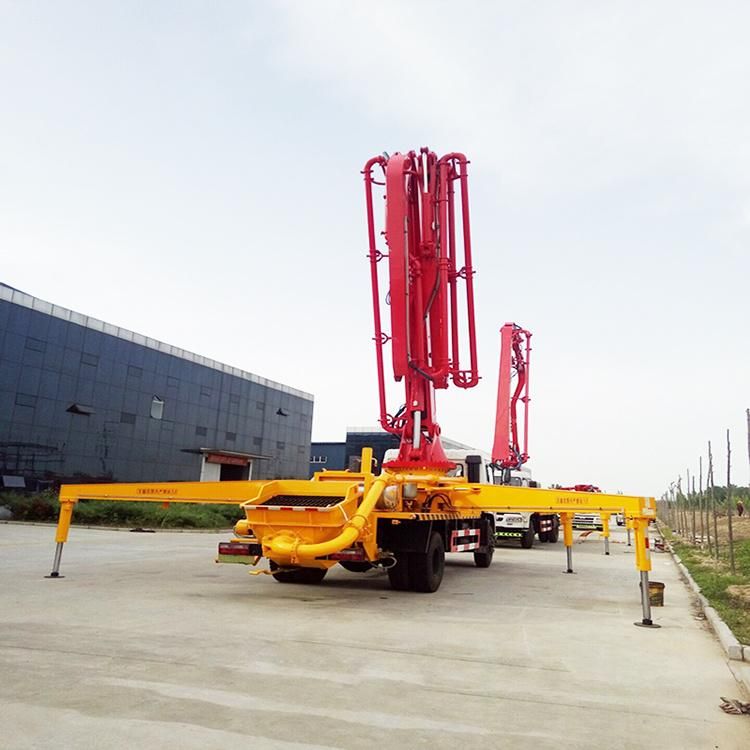

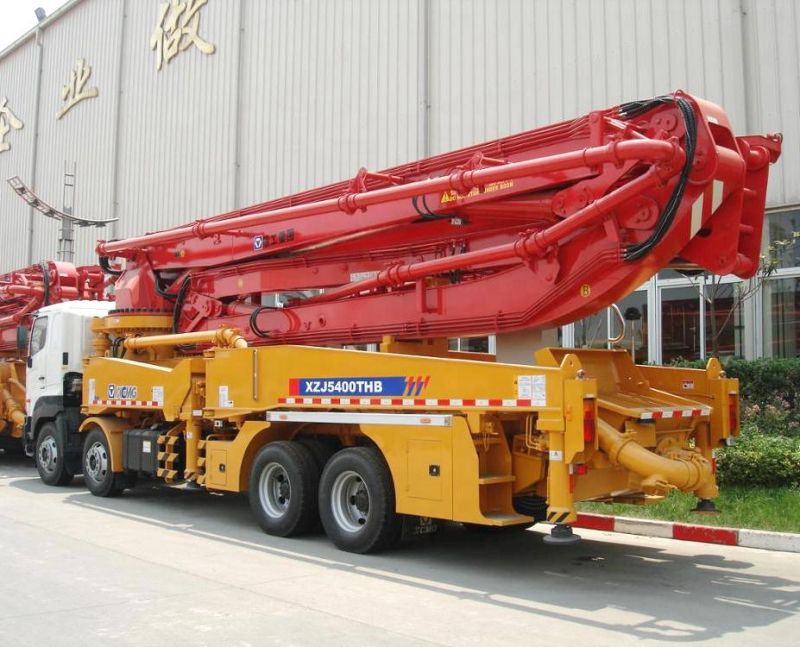

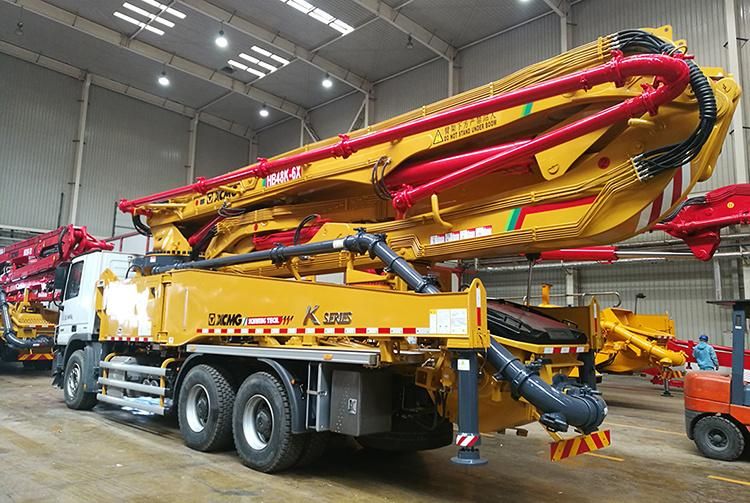

Overview Product ParametersDescriptionUnitParameter valueOutline dimensionmm15780×2500×4000      Overall weightkg54000ChassisModel Actros5046Manufacturer  Max. speedkm/h85Max. grade-ability%51.4Wheelbasemm2020 + 5180 + 1350 + 1450  EngineModel OM501LA·V6  Max. powerkW335Max. torqueN·m/(r/min)2200/1080  DisplacementL11.946Emission standard Eruo VPumping systemTheoretical outputm3/h170Concrete pumping pressureMPa8Theoretical pumping timesTime/min21~23Delivery cylinder diameter ×strokemmφ260×2200Max. diameter of pumping concretemm≤40Filling heightmm1570Concrete slump rangecm8~23Placing boomReach heightm66.1Reach depthm48.6Slewingradiusm60.9Slewing angle°±270Stabilizer spanLongitudinal span of stabilizermm13700Transverse span of front stabilizermm13000Transverse span of rear stabilizermm15300OthersLubrication method Automatic lubricationControl method Manual/remote controlVolume of water boxL1000Detailed Photos



Our Advantages
