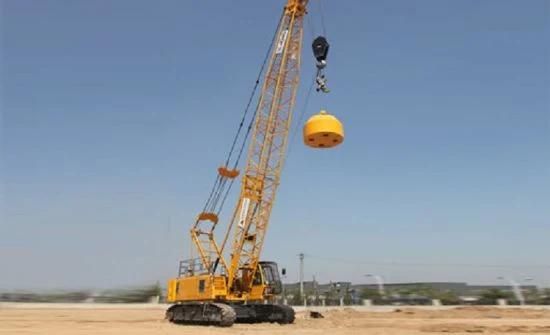

China EXW Price 40 Ton 60 Ton Vibration Piling Machine for Heavy-Duty Compaction Xgh100 Xgh350 Xgh460 Xgh600 (XGH1000K)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Support or Field Maintenance
- Warranty：One Year Warranty
- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：XGH1000K
- Motor Power：247 Kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2008
- Condition：New
- Ramming Energy Level：1000 T.M
- Maximum Allowable Tamper Weight：40 Ton
- Maximum Drop：25 M
- Boom Length：29 M
- Ground Pressure：0.07-0.1 MPa
- Transport Package：Roro
- Specification：3.4x3.4x9.219 m
- Trademark：MAXIZM
- Origin：Xuzhou, China
- Production Capacity：100units,Month
Description
Overview
Product DescriptionDetailed Photos 1000t.m 40t*25m 1000t.m 50t*20m(option) Items Unit Data Data amping capacity t.m 1000 1000 Hoisting height m 25 20 eight of rammer t 40 50 Diameter of rammer mm 2480 2480 Adsorption factor 1.5 1.5 Grade-ability % 10 10 eight of basic machine t 100 115 Boom angle 0 86-84 86-84 Max.boom cross-section mm² 3*4 3*4 Min.boom cross-section mm² 1.2*1.9 1.6*2.36 Boom length m 30 25 Boom weight t 13.3 11.4 Ground contact length m 8 8 Track m 6 6 Distance from rammer to crawler m 2 2 Distance from frame to the ground mm 350 350 rack tshoe width mm 850 850 Ground pressure for lifting load MPa 0.04-0.100 0.08-0.112 Wire rope diameter mm 32 32 Parts of line 4 6 Single line pull for rated load t 10.7 10.7 Single line pull for rammer t 16 16 Wire rope length m 230 230 Engine output power kW 235 235 Single line speed for full load m/min 247 247 Travel unit 4 4 Travel speed Km/h 0.48 0.48 Max.transport weight t 35 35 Transport width and height m 3.4*3.4 3.4*3.4 Transport vehicle 3 3
