• Size：Small-Scale
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Engine：Yanmar
• Operating Weight：15 Ton
• Pontoon Length：6700 mm
• Chain Numbers：2
• Side Pontoon：Optional
• Hydraulic Spaud：Optional
• Transport Package：Naked
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：30 PCS,Month

Basic Info.

Size Small-Scale Certification ISO9001: 2000, ISO14001 Condition New Engine Yanmar Operating Weight 15 Ton Pontoon Length 6700 mm Chain Numbers 2 Side Pontoon Optional Hydraulic Spaud Optional Transport Package Naked Specification ISO9001 Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 30 PCS/Month

Product Description

Main Features
Equipped with Yanmar or Doosan engine with good performance and reliability.
Multi Synchronous Drive System
Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
Amphibious Modular Design
Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into
40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
No special tooling is required for the assembly and disassembly process.
Supplementary pontoons can be added on each side to boost stability in deeper water operation.
Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Pontoons are designed and built with provision for future addition of supplementary pontoon and spud system.
Hydraulic Undercarriage Pontoons
Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water and driving force on the ground also.

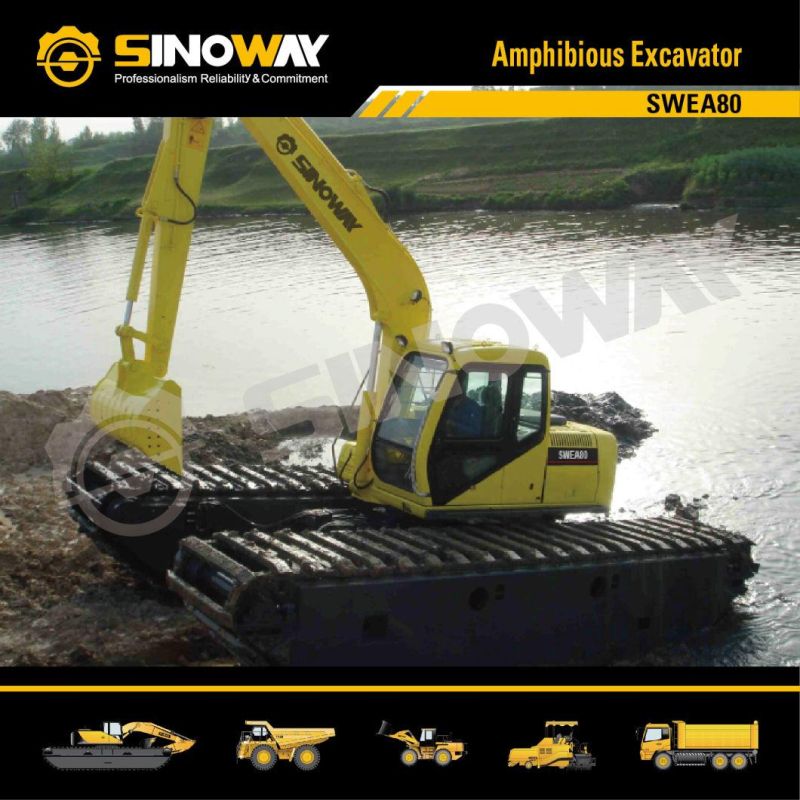

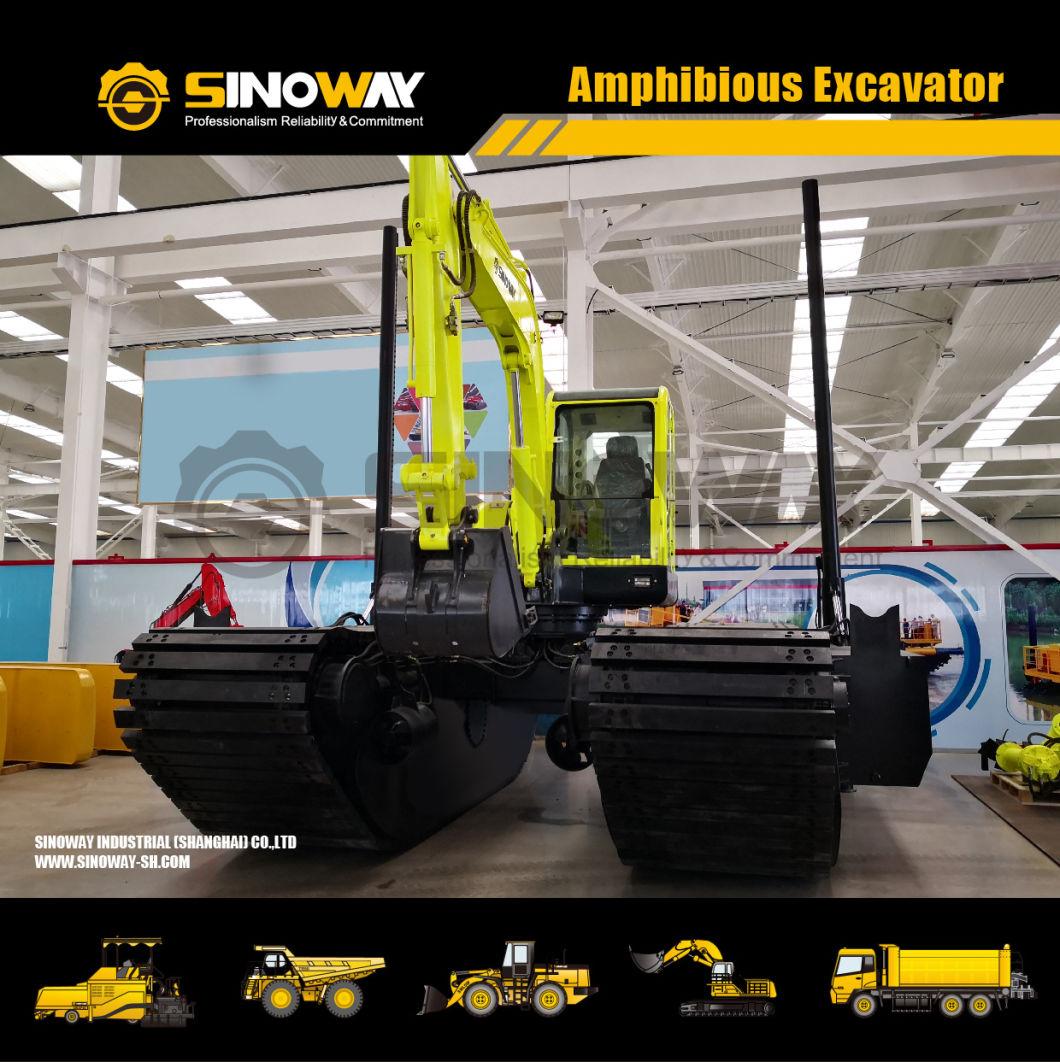

Product Show





Specifications


Engine
Model	Yanmar
Type	Four-cylinder,water-cooled turbocharged,mechanical injection
Rated power	56.5KW
Rated speed	2200rpm
Main Technical Specification
Operating weight	15000Kg
Standard bucket capacity	0.2m3
Slewing speed	12rpm
Stick digging force	43.4KN
Bucket digging force	49KN
Draw bar pull	112.2 KN
Fuel tank capacity	300 L
Hydraulic tank capacity	140 L
Main Features
Tracked pontoon structure
Big torque travelling device
Extendable chassis
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	DOOSAN
Main valve	DOOSAN
Motor	DOOSAN
Hydraulic flow rate	198L/min
Hydraulic pressure	28MPa
Travelling System
Travelling speed	2.33~3.79km/h
Grade ability	70%
Ground pressure	0.013MPa
No.of chains	2
Dimensions
Overall length	9009mm
Overall width	4500mm
Overall height	3299mm
Ground clearance	734mm
Length of pontoon	6600mm
Width of pontoon	1300mm
Height of pontoon	1420mm
Optional
Side pontoon
Hydraulic spud
Operating Scope
Stick length	3000mm
Boom length	4500mm
A: Max. cutting height	8443mm
B: Max. dumping height	6457mm
C: Max. digging depth	5879mm
D: Max. reach	9000mm
