• Model NO.：QD525
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Skid Steer Loader
• Transport Package：Container
• Specification：1976mm*1104mm*1352mm
• Trademark：QINDING
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets Per Year

Model

QD525

Moving type

Crawler

Dimension(L*W*H)

1976mm*1104mm*1352mm

speed

5.6 km/h

Rated loading capacity

416 kg

Tipping load

832 kg

Max.reach

1883 mm

Displacement

1.123L

Weight

1060 kg

Hydraulic oil flow

33.9 L/min

Oil tank capacity

35 L

Pump Capacity

53.4L/min

System Relief @ Quick Couplers

210 Bar

Battery capacity

45Ah

voltage

12V

Engine

Kubota, D1105, 25HP

Engine type

Diesel, 3 cylinders, water cooled

Rotation speed

3000r/min

1.Extremely compact design, light weight, easy to transport and smart in narrow working environment.

2.Standard quick coupling system can use hundreds of different attachments.

3.Extremely compact design, light weight, easy to transport and smart in narrow working environment.

4.Unique swing design of the oil tank greatly simplified the everyday maintenance.

5.Reasonable arrangement of the control levers and the hand hooking bar,makes the operation simple and safe with your hands.

6.Self-levering which can keep the bucket parallel always with the floor when raising and lowering bucket.

7Compared with other similar size machine, our ML525 is super powerful with 500kg lifting capacity.

8.We adopted water cooled gasoline engine which has much better cooling efficient, and for such compact machine this is very significant.

9.The unique rotatable oil tank design makes the maintenance much more easier and touchable.

10.The self levering feature also makes it stand out from other mini skids.

11.Different type/brand engines, wheel/track type available, offer many choices to customers.

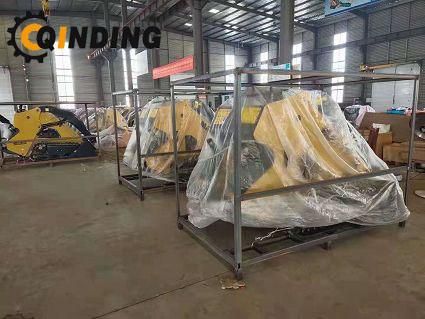

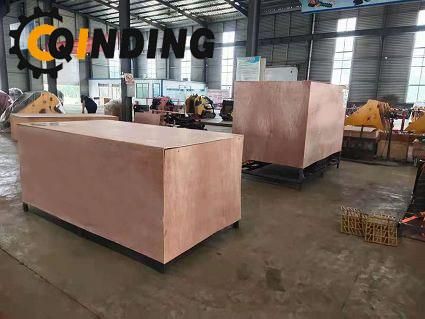

Packaging
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
