• Air Compressor：Piston 3.2,7 MPa
• Transport Package：Standard Boxes
• Trademark：PRODRILL
• Origin：China
• Production Capacity：100set,Month

Basic Info.

Air Compressor Piston 3.2/7 MPa Transport Package Standard Boxes Trademark PRODRILL Origin China Production Capacity 100set/Month

Product Description

Excavator Attachment Construction machinery excavator drill rig

Besides demanding conditions, ProDrill Excavator Mounted Drill Rig can also be used as hydraulic rock splitter to
demolish over sized rock bad and huge concrete building removal.

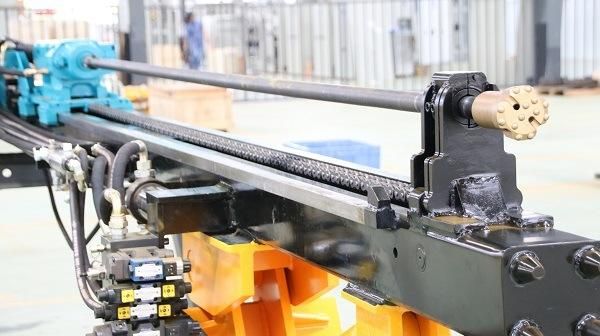

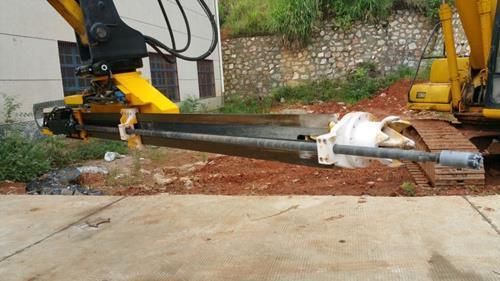

1. Excavator Mounted Drill Rig
1 meter per Min
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting,
quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion
hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with
conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the
exceptional reach of the excavator's boom.

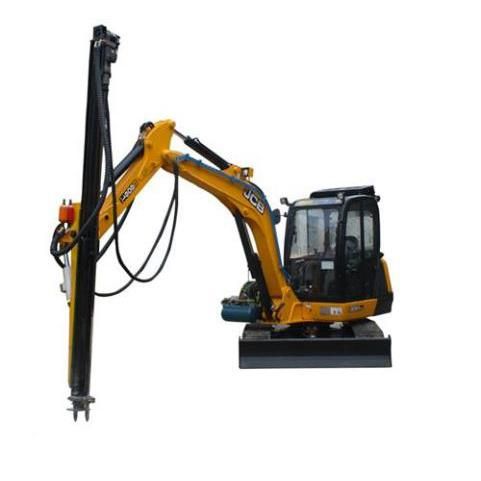

A. QL-Y90 EXCAVATOR MOUNTED HYDRAULIC DRILL RIG

FOCUS ON BIG HOLE


2-3/, . QL-Y90, 38-89mm, , QL-Y90. Excavator Mounted Drill Rig

Drilling speed can up to 2-3 meters per minute, but don"t need a big compressor.
The drill hole diameter of QL-Y90 excavator mounted hydraulic drill rigrange from 38 to 89 mm, it is the best choice
for the big hole.
B. QL-Y45 EXCAVATOR MOUNTED
HYDRAULIC DRILL RIG

products type	PD-Y90
available rigidity rock	F=6-20
drill scope	38-89mm
drill speed	500-1000mm/min
lowest horizontal hole height	250mm
once propel travel	3m
oil pressure	≤19Mpa
compressor type	1.8m3-3.2m3
size	7488*140*252mm
drifter weight	115kg
whole weight	1.2t
