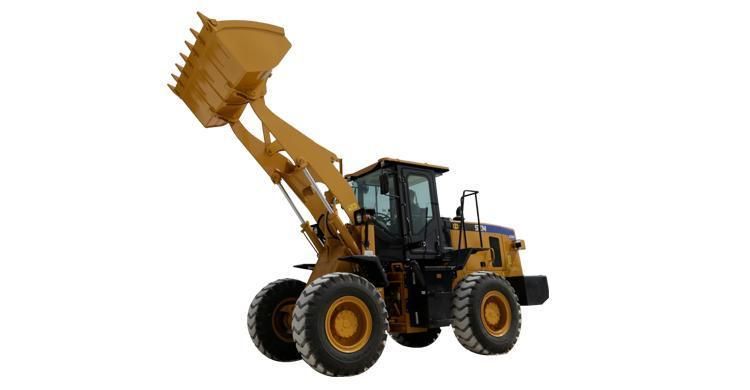

China Small 3 Ton Front Wheel Loader Sem Brand Sem636D

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：1 Year Warranty for Spare Parts
  • Warranty：1 Year Warranty for Spare Parts
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Power

Base Info

  • Model NO.：SEM636D
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Engine：Weichai,Cummins
  • Transport Package：Nude
  • Specification：3 ton
  • Trademark：SEM
  • Origin：China
  • Production Capacity：1000PCS,Month

Description

Model ModelSEM636D WeichaiSEM636D CumminsSEM636D for EAEUMain Specifications Rated Payload3,000 kg3,000 kg3,000 kgOperating Weight with Standard Bucket10,133 kg10,047 kg10,400 kgBucket Capacity1.5-2.5 m³1.5-2.5 m³1.5-2.5 m³Operating Specifications Breakout Force113 kN113 kN113 kNMax. Drawbar Force Transmission Transmission GearsF4/R2/F4/R2Torque Converter TypeSingle stage, 3 ElementsSingle stage, 3 ElementsSingle stage, 3 ElementsMaker & TypeSEM TR100SEM TR100SEM TR100Axle (Axle, Tire & Brakes) Rear- oscillation +/-±12°±12°±12°Engine Engine ModelWP6G125E22Cummins 6BT5.9WP6G125E22Rated Power92 kW92 kW92 kWRated Speed2,200 r/min2,200 r/min2,200 r/minDisplacement6.7 L6.7 L6.7 LEmissionT2 / Stage 2T2 / Stage 2T2 / Stage 2Implement Hydraulic System Implement System TypeGear PumpGear PumpGear PumpHydraulic Cycle Time8.3 s8.3 s8.3 sSystem Pressure Setting18 MPa18 MPa18 MPaRaise4.6 s4.6 s4.6 sBrake System Service BrakeDry & Caliper, Air to Oil ControlCaliper Dry Dics, Air over Oil ActuationDry & Caliper, Air to Oil ControlParking BrakeDrum Type Shoe BrakeDrum Type Shoe BrakeDrum Type Shoe BrakeService Refill Capacity Fuel Tank160 L160 L160 LEngine Lubricating Oil17 L17 L17 LHydraulic System95 L95 L95 LTransmission Oil45L45L45LTires Size17.5-2517.5-2517.5-25TypePRPRPRLayer121212
