• Model NO.：HWDR150
• Motor Power：85kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2008
• Condition：New

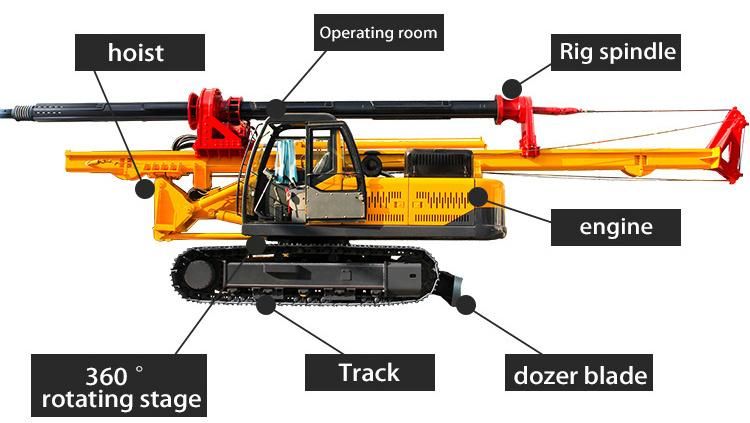

• Name：Crawler Rotary Drilling Machine
• Chassis Length.(mm)：4800
• Track Width.(mm)：600
• Machine Weight.(T)：30
• Maximum Drilling Depth.(M)：30
• Drilling Diameter.(mm)：500-1800
• Engine Rated Power.(Kw/Rpm)：151kw-176kw
• Maximum Torque of Power Head.(Kn.M)：120
• Power Head Speed.(Rpm)：10-50
• Maximum Driving Speed(Km/H)：1.5
• Maximum Climbing Angle.(°)：25
• Maximum Driving Torque.(Kn.M)：45000
• Overall Width of Working State.(mm)：4200
• Overall Length of Transport Status.(mm)：13000
• Overall Width of Transport Status.(mm)：2800
• Transport Package：Container
• Specification：5.9× 2.3× 10.5m
• Trademark：Hengwang
• Origin：Shandong, China
• HS Code：8430691900
• Production Capacity：500 Sets Per Month

Overview Product Description

Product Parameters

Engine brandYuchai/Weichai/CumminsWeichai/Cummins(Optional)(Optional)Engine rated power.(KW/rpm)151KW-176KW158KW-176KWMaximum torque of power head.(KN.m)120150Power head speed.(rpm)10-5010-50Maximum working pressure of hydraulic system main pump.(MPa)3030Maximum working pressure of hydraulic system auxiliary pump.(MPa)1212Maximum bow rate of the main pump hydraulic systen.(L/min)112*2(Optional)112*2(Optional)Maximum bow rate of the auxiliary pump hydraulic systen.(L/min)1616Maximum pressure of the pressurization system.(KN)100100Maximum lifting force of the pressurization system.(KN)8080Maximum travel pressure system.(mm)30003000Maximum lifting force of the main winch.(KN)150150Maximum pull-up speed of the main winch. (m/min)5050Maximum lifting force of the auxiliary winch.(KN)1515Maximum pull-up speed of the auxiliary winch.(m/min)5050Left and right inclination angle of drilling mast(°)±5±5Forward and backward inclination angle of the drilling mast. (°)5/905/90Maximum driving speed(KM/h)1.51.5Maximum climbing angle.(°)2525Maximum Driving torque.(KN.m)4500045000Overall width of working state.(mm)42004200Overall length of transport status.(mm)1300013000Overall width of transport status.(mm)28002800Overall height of transport status.(mm)35003550Drill rod typeMachine LockMachine LockDrill rod whether to provide customYesYesdrill tools500-2000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bit500-3000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bitDetailed Photos

Applications

Company Profile

Company Introduction

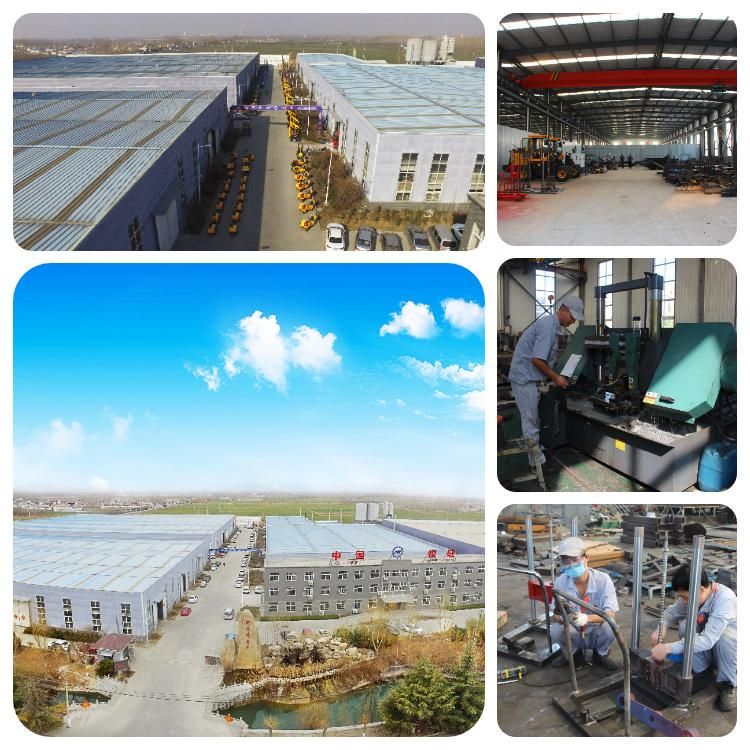

  Our Company Introduction: Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
  Our company produces the piling machinery a total of 10 major series more than 20 varieties, mainly include photovoltaic crawler pile driver, screw drivers, HW series, KLB hydraulic pile driver walking long spiral drill,diesel pile hammer machine, vibration sinking pipe pile, DZB multifunction rig, water well driling rig machine,concrete pump and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.

FAQ
1) ,What is your terms of payment?
TIT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

2), What is your terms of delivery?
EXW, FOB, CFR, CIF.

3),How about your delivery time?
Generally, it will take 7-10 working days after receiving you advance payment The specific delivery time depends on the items and the quantity of your order

4),What is the warranty of our machine?
Our main machine enjoys a?1 year warranty(except for the hammer). during this time all accessories broken can be changed for a?new one And we provide videos for machine install and operation.

5), What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

6),Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

7),Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.

8)How do you make our business long-term and good relationship?
1 We keep good quality and competitive price to ensure our customers benefits;
2 We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

9), Do you have any certificates for your machine?
All of our products coming with the certificates of CE, S09001.
