Hot Sale Hydraulic Crawler Bulldozer From China
Shanghai Mineral Industrial Co., Ltd- After-sales Service：Field Installation, Commissioning and Training
- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Rotary
- Engine Power：74~147kw
Base Info
- Model NO.：bulldozer
- Certification：CE
- Condition：New
- Color：Yellow
- Dimension：4492*3185*2950mm
- Transport Package：Roro
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：1000PCS,Year
Description
Ground pressure(Mpa)0.044 Blade type Straight tilting blade Blade capacity(m3) 2.89 for straight tilting blade Angle blade 2.24 for angle blade Type Swing type of sprayed beam, suspended structure of equalizer bar Carry rollers 2 each side Track rollers 6 each side Track type Single teeth. Dry type Width of track shoes 460mm Pitch 190mm Hydraulic system Max. Pressure 14MPa Pump type Gear pump Discharge 180L/min lated revelation Working cylinder x number 90mm x2 Power transmitting system Torque converter 3-element, 1 stage, 1 phase Transmission Forced connected, planetary gear Main drive Spiral bevel gear, splash lubrication Steering clutch Wet, Multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake Steering brake Wet, floating, band type foot stepping brake with hydraulic helping Final drive 2-stage speed reduction of spur gear, splash lubrication Gear 1st 2nd 3rd Foward(km/h) 3.2 5.9 9.8 Reverse(km/h) 3.9 7.1 11.9
FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill p
recise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to
guarantee the rapid and flexible steering controls by joysticks.

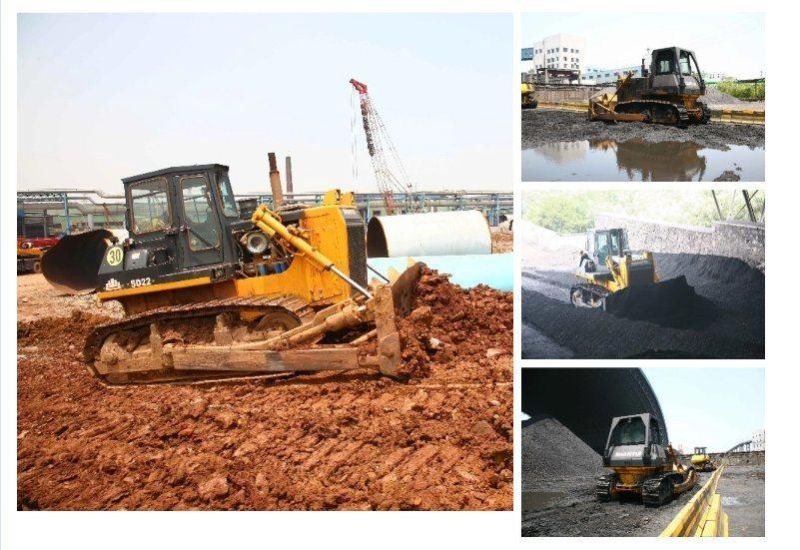

It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering
constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.
CERTIFICATE
WHAT WE CAN PROVIDE
