Hydrailic High Quality 160HP Bulldozer B160c
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：B160C
- Condition：New
- Color：Yellow
- Operating Weight：17000 Kg
- Rated Power：131 Kw
- Ground Pressure：67kpa
- Blade Capacity：4.5 Cbm
- Depth Below Ground：540 mm
- Engine：Weichai
- Transport Package：Nude
- Specification：5023x3422x3200mm
- Trademark：Oriemac
- Origin：China
- Production Capacity：350units,Month
Description
Basic Info.
Model NO. B160C Condition New Color Yellow Operating Weight 17000 Kg Rated Power 131 Kw Ground Pressure 67kpa Blade Capacity 4.5 Cbm Depth Below Ground 540 mm Engine Weichai Transport Package Nude Specification 5023x3422x3200mm Trademark Oriemac Origin China Production Capacity 350units/MonthProduct Description

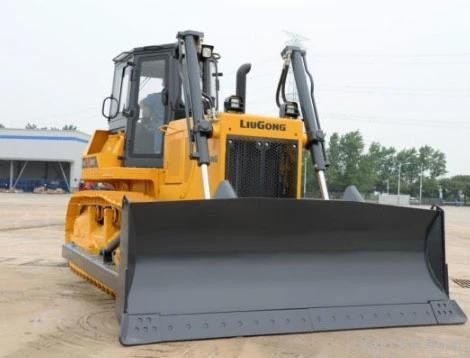

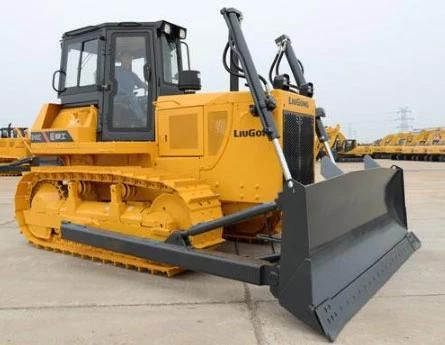

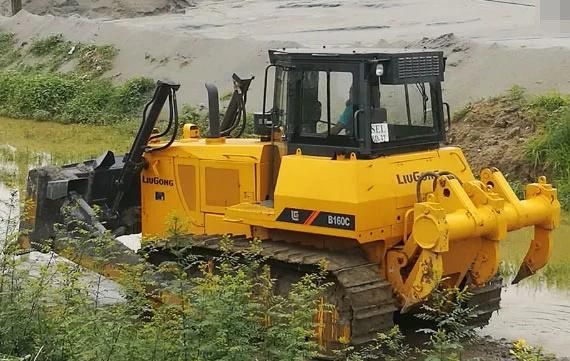

Hydrailic High Quality 160hp Bulldozer B160CContact Person: Vicky Zhu
Product Description
The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency
With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.
Product Specifications
Operating weight
17000 kg
Engine power
131 kW (178hp) @ 1850 rpm
Max travel speed, fwd
11 km/h
Max travel speed, rev
14 km/h
No. of speeds, fwd
3
No. of speeds, rev
3
Referenced Shoe width
510 mm
Ground pressure
67 kPa
Blade type
Straight
Blade capacity
4.5 m³
Depth below ground
540 mm
Lift above ground
1076 mm
Blade angle
7 °
Blade tilt
445/470 mm
Transport length
5023 mm
Transport width
3422 mm
Transport height
3200 mm
Model
Weichai
Emission
Stage II / Stage III
Ripper options
Triple-shank
Hydraulic winch options
Yes
Blade options
Straight; Angle; Full-U; Landfill R-Blade
Product Show
