Hot Sale Concrete Mixer Jzc Series, Jzc250, Jzc350, Jzc500, Jzc750, Jzc1000
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type:Concrete Mixer
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Rotor Type
- Productivity:6~8 M3,H,10~14 M3,H,18~20 M3,H,30-35m3,H
- Feeding Height:1100
Base Info
- Model NO.:JZC
- Vibrating Amplitude:1.0mm
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:as Required
- Water Supply Accuracy:Less Than 2%
- Warranty:One Year
- Power Type:Electric,Diesel
- Max. Aggregate Size:60mm,60~80mm
- Transport Package:Suitable for Sea Transport
- Specification:2766x2140x3000 mm, 3500x2200x3200 mm,
- Trademark:raytone machinery
- Origin:Shandong, China
- HS Code:84743100
- Production Capacity:1000set,Sets , Month
Description
Basic Info.
Model NO. JZC Vibrating Amplitude 1.0mm Certification ISO9001: 2000, CE Condition New Color as Required Water Supply Accuracy Less Than 2% Warranty One Year Power Type Electric/Diesel Max. Aggregate Size 60mm,60~80mm Transport Package Suitable for Sea Transport Specification 2766x2140x3000 mm, 3500x2200x3200 mm, Trademark raytone machinery Origin Shandong, China HS Code 84743100 Production Capacity 1000set/Sets / MonthProduct Description
JZC series concrete mixer:

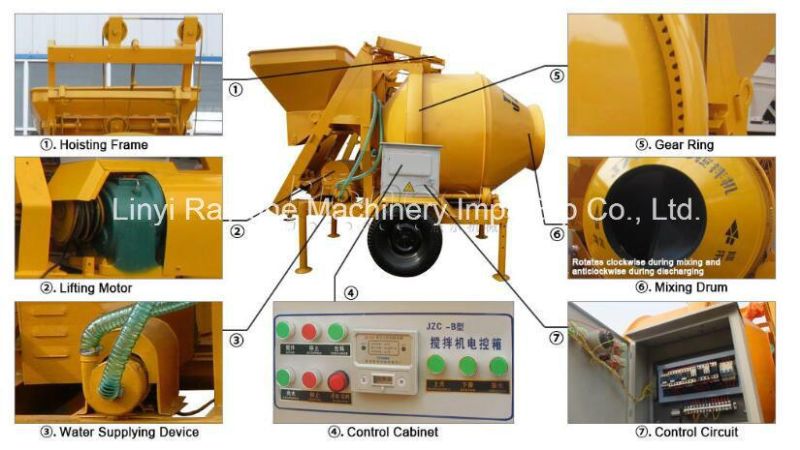

1. The mixing drum Concrete Mixer is driven by ring gears, which will mix forward in operation and reverse for discharge.
2.It can be used to mix plastic and semi-stiff concrete.
3.It`s Featured of reliable driving, light weight, low energy consumption, compact structure, stable operation, easy operation, high output, high mixing quality and removability.
4.It is an advanced machine for construction sites, roads, bridges and concrete components factories.
5.Concrete Mixer with Hydraulic Tipping Hopper is mixer of double conical drums .concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of . Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction.
6.Concrete Mixer is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, it is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

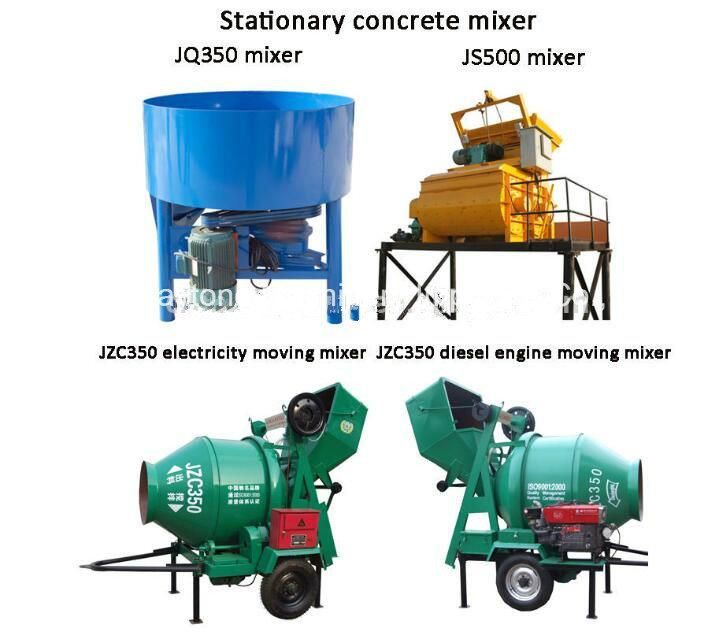

7.JZC, JZM series mixer including JZC 250,350,500,750 and JZM350, altogether 5 main models, among which, model JZC 750 is stationary type, it can be used as single machine or combined with compounding machine to form simple concrete batch plants. Other models are all models are all moveable type.
8. According to the demand you want, we can configure diesel engine or motor.
Brief parameters introduction as following
Model | JZC250 | JZC350 | JZC500 | JZC750 |
Discharge volume | 250L | 350L | 500L | 750L |
Charging volume | 320L | 560L | 800L | 1200L |
Capacity | 6~8 m3/h | 10~14 m3/h | 18~20 m3/h | 30-35m3/h |
Rotating speed | 17 r/min | 14 r/min | 13 r/min | 12.26r/min |
Mixing motor | 4kw | 5.5kw | 7.5kw | 11kw |
Lifting motor | 4KW | 4.5KW | 5.5kw | 7.5kw |
Pump motor | 0.55kw | 0.55kw | 0.55kw | 0.55kw |
Weight | 1500kg | 1950kg | 2400kg | 4000kg |
Dimensions (L x W x H) | 2260x1990x2750 mm | 2766x2140x3000 mm | 3500x2200x3200 mm | 3680x3065x3565 mm |
