• Model NO.：DHB40
• Vibrating Amplitude：6m
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• Capacity：40 Tons Per Hour
• Diesel Consumption：5.5-7.0 Kg ,Ton
• Installation Power：75kw
• Electrical Design：220V,380V-50Hz(Adjustable According to Local Volta
• Transport Package：Nude Packing
• Specification：30*16*6m
• Trademark：LY
• Origin：China
• HS Code：84743200
• Production Capacity：100 Units,Month

DHB40

Model

DHB40 Asphalt Mixing Plant

Type

Continuous Hot Mix

40 Tons Per Hour

Capacity

40 Tons Per Hour (Standard Working Condition)

1200*5000mm

Drying & Mixing Drum

5.5-7.0kg/ton

Fuel Consumption

diesel consumption: 5.5-7.0 kg /ton

0.5%0.3%

Weighing Precision

hot aggregate: 0.5%; bitumen: 0.3%

130-165

Hot Asphalt Temperature

130-165(adjustable)

100mg/Nm

Air Emissions

70db(A)

Working Noise

Operation

Full Auto/Manual Operation

75kw

Installation Power

220V/380V-50Hz ()

Electrical Design

220V/380V-50Hz(adjustable according to local voltage)

30166

Plant Covering Area

Length:15.6m, width:15m, max. height point: 6m

Documents

Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate

1pipeline and chimney

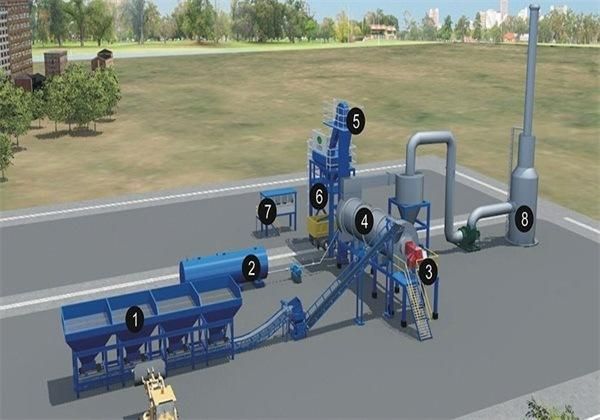

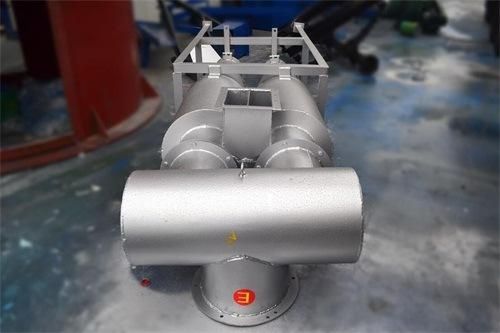

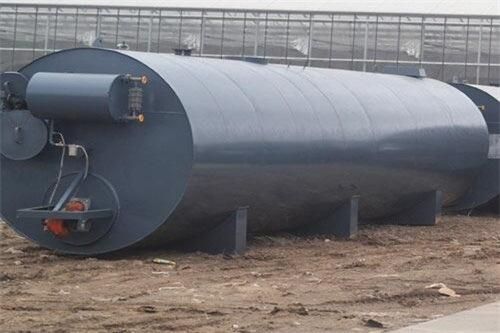

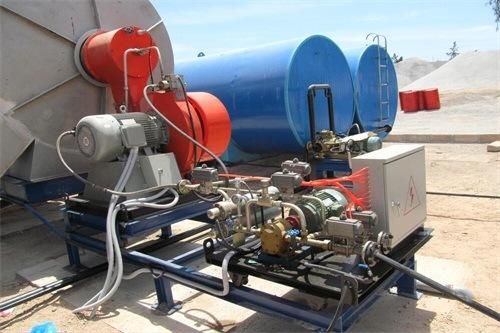

1. Cold aggregate feeder    2. Bitumen tank    3. Burner    4. Drying & mixing drum
5. Hot asphalt elevator    6. Hot asphalt silo    7.Control cabin    8. Water dust filter









Payment Terms: T/T or L/C; 30% advanced payment, 70% balance payment before shipping.

Delivery Time: 15-20 working days after receiving advanced payment.

Warranty: 12 months after erecting the whole plant.

Packing: It totally needs 4 set *40 HQ containers by shipping.
Erection/commissioning/training:
1) The buyer should prepare the earthwork, electrical power supply etc based on the seller's technical drawings, and prepare professional worker-team, include: electrical workers, welding workers, maintenance workers, operators, also necessary working tools as truck crane etc.
2) The seller should send 1 engineer to guide erection in the buyer's working site, and training operators for the buyer.
3) The buyer should bear accommodation, go and return air tickets, local transportation fees, medical care; and allowance USD80/day for each person, and assist the seller's to get the Visa.
4) General erection time is about 15-20 working days.
