Srk03/Spk04 3tons 4tons Shantui Combined Rubber Tyre Roller Compactor for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：One Year Warranty
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SRK03,SPK04
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：25cm,s
- Centrifugal Force：18KN
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Transport Package：in Nude
- Specification：5850*2150*3200mm
- Trademark：SHANTUI
- Origin：Shandong, China
- HS Code：8429401100
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. SRK03/SPK04 Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 25cm/s Centrifugal Force 18KN Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package in Nude Specification 5850*2150*3200mm Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 5000PCS/YearProduct Description

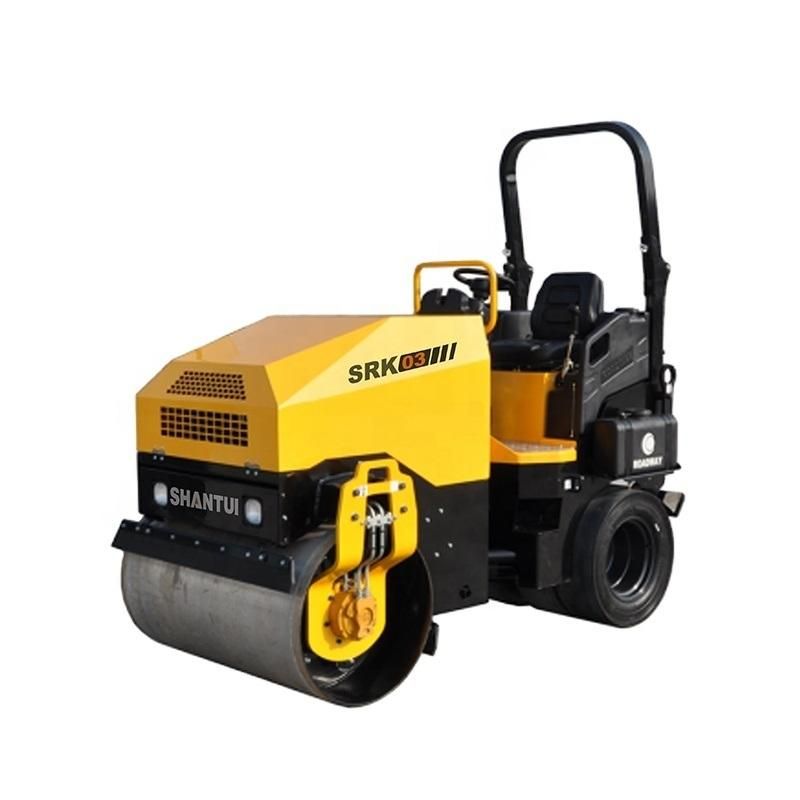

SRK03/SPK04 3tons 4tons SHANTUI combined Rubber Tyre roller compactor for saleProduct Description
Shantui series road rollers mainly include mechanical vibratory road roller with single steel wheel, full-hydraulic vibratory road roller with single steel wheel, static rolling type, double steel wheel and pneumatic tyred rollers. They are mainly used in compaction of airport, road, mine, dam, railway and other construction sites. Shantui road roller possesses excellent compaction performance, outstanding working efficiency and strong power, and its cab possesses good view, and is configured with air conditioner and efficient shock absorption seat, thus enhancing operation comfort in an all-round way, and it also possesses relatively high reliability for it adopts imported hydraulic system. Shantui road roller can be configured with compactness measuring instrument to monitor and detect the compaction process automatically.
Technical Parameters| Parameter name | SRD04 |
| Performance parameters | |
| Operating weight (Kg) | 4200 |
| Exciting force (KN) | 40 |
| Vibration frequency (Hz) | 60 |
| Nominal amplitude (mm) | 0.5 |
| Ground pressure (KPa) | - |
| Gradeability (%) | 40 |
| Engine | |
| Engine model | Yanmar 488 |
| Rated power/rated speed (kW/rpm) | 35kw/3000rpm |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 3000*1670*2200 |
| Driving performance | |
| Forward speed (km/h) | 0-12 |
| Reversing speed (km/h) | 0-12 |
| Chassis System | |
| Wheelbase (mm) | 1950 |
| Tank capacity | |
| Fuel tank (L) | 70 |
| Working device | |
| Compacting width(mm) | 1400 |

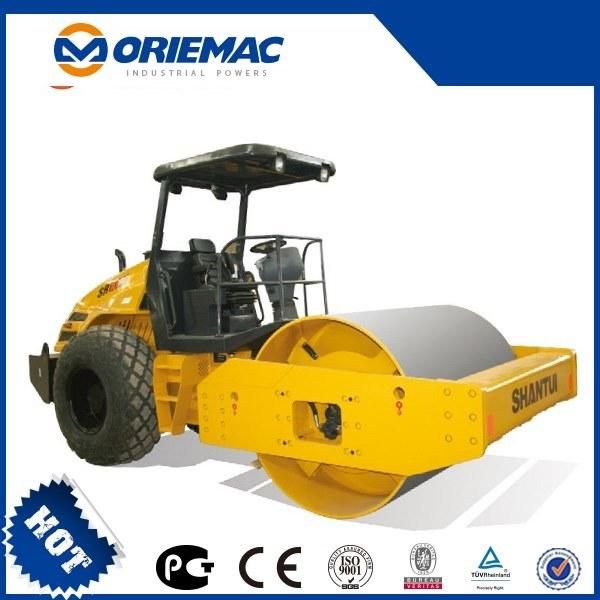

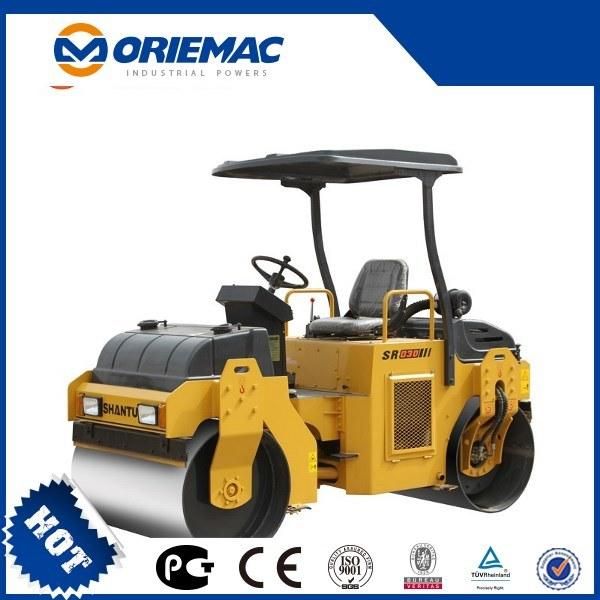

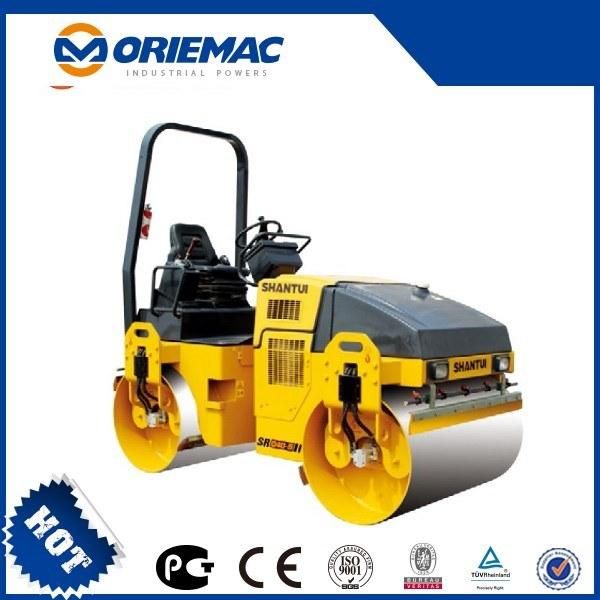

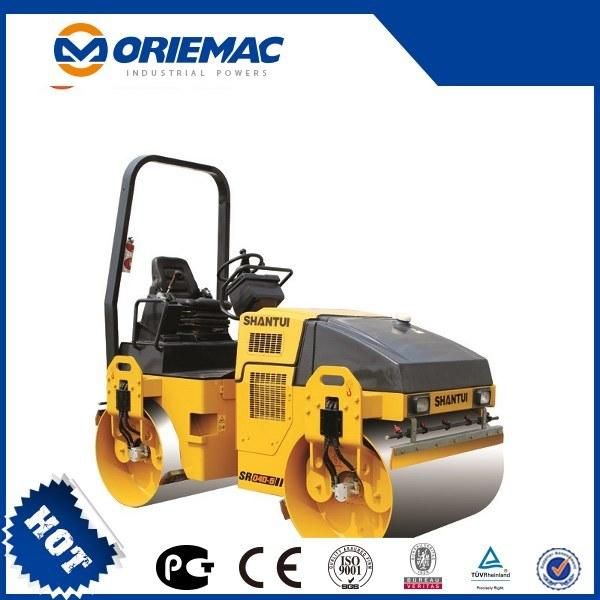

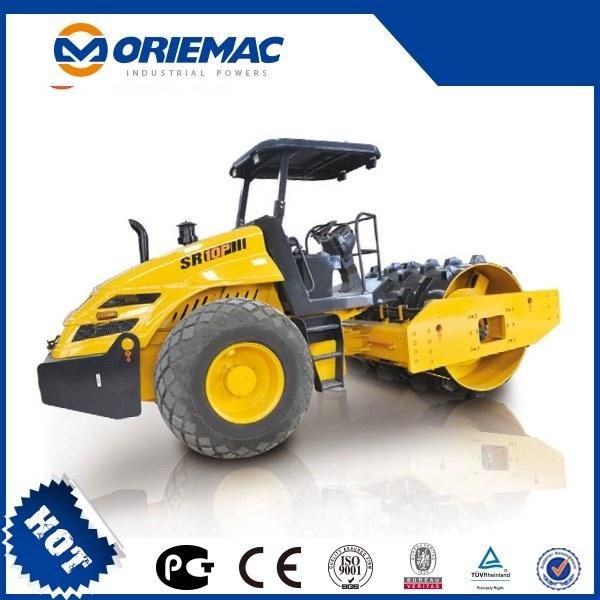

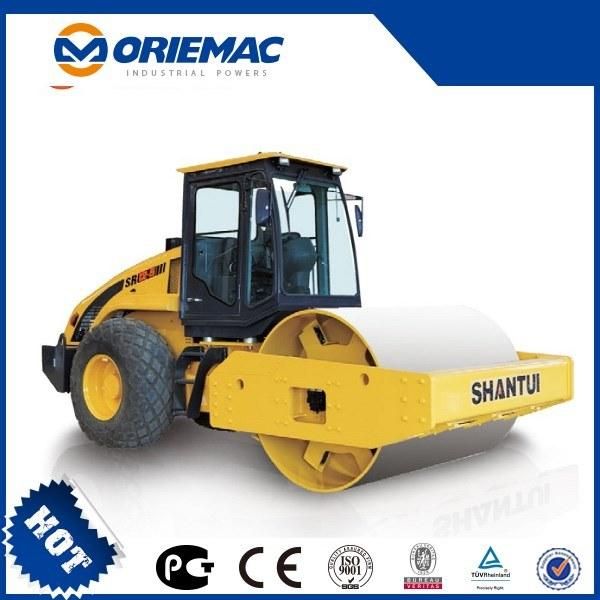

Product Pictures
