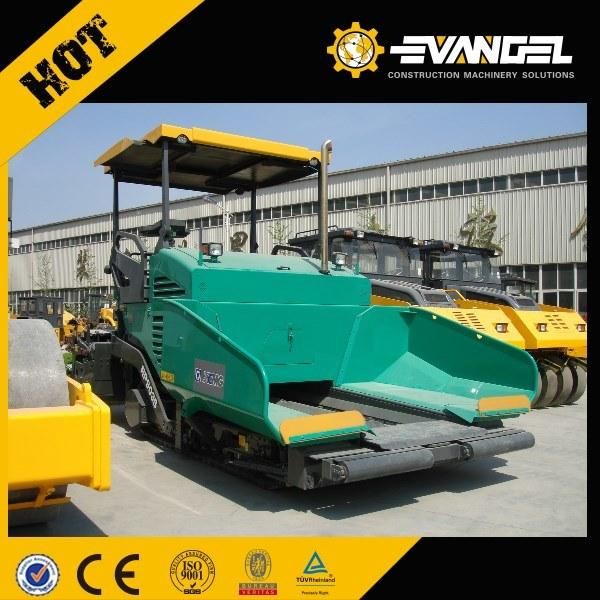

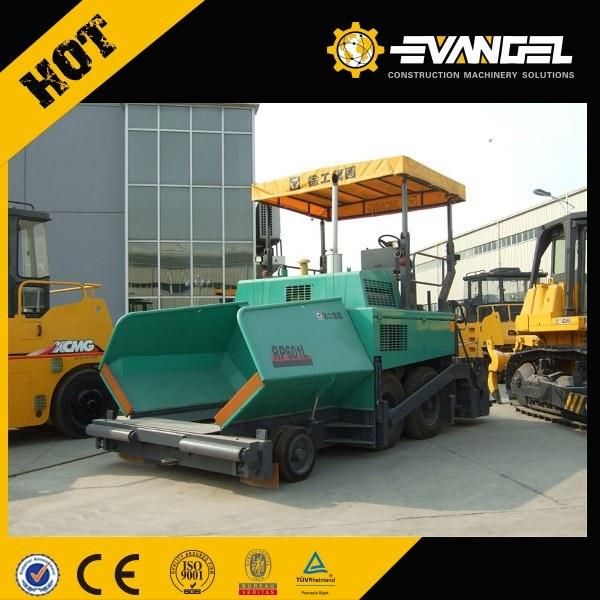

China Construction Paving Equipment RP601 6m Asphalt Concrete Paver
Evangel Industrial (Shanghai) Co., Ltd.- Type：Paver
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Automatic Grade：Automatic
- Product Capacity：40～400t,h
- Certification：ISO9001: 2000, CE
Base Info
- Model NO.：RP601
- Condition：New
- Weight：12 Tons
- Paving Width：2.5-6m
- Max. Paving Thickness：300mm
- Dimension(L*W*H)：6096X2580X3832mm
- Transport Package：Nude Package
- Specification：ISO, CE
- Origin：Jiangsu, China
- HS Code：8479102100
- Production Capacity：50units,Month
Description
Basic Info.
Model NO. RP601 Condition New Weight 12 Tons Paving Width 2.5-6m Max. Paving Thickness 300mm Dimension(L*W*H) 6096X2580X3832mm Transport Package Nude Package Specification ISO, CE Origin Jiangsu, China HS Code 8479102100 Production Capacity 50units/MonthProduct Description
China Construction Paving Equipment RP601 6m Asphalt Concrete Paver
Items | Unit | Parameters |
| Basic paving width | m | 2.5 |
| Max. paving width | m | 6.0/7.0 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0~18 |
| Travel speed | km/h | 0~18 |
| Theoretical Productivity | t/h | 400 |
| Hopper Capacity | t | 13 |
| Gradeability | % | 20 |
| Pavement evenness | mm/3m | 3 |
| Transverse levelling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0~+3 |
| Engine model | D4114ZG2B | |
| Engine power | kw | 100 |
| Engine speed | r/min | 2400 |
| Fuel tank capacity | L | 170 |
| Machine weight | t | 15.3~19 |
| Dimension | mm | 6096X2580X3832 |
| Auger speed | r/min | 0~82 |
| Conveyor speed | m/min | 0~36 |
| Vibrator speed | r/min | 0~1470 |
| Vibrator amplitude | mm | 4 |
| Screed heating | Electrical heating | |
| Auger and conveyor control | Automatic Control by Ultrasonic Sensors | |
| Automatic levelling control | Simulation control |
Items | Unit | Parameters |
| Screed model | / | 475 |
| Type | / | Gas heating, vibration |
| Extension | / | Hydraulic |
| Width | m | 2.5-6.0/7.0m |
| Vibrator speed | rpm | 0-1470 |
