• Model NO.：SY220
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Export Package
• Specification：SY220
• Trademark：SANY
• Origin：China
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. SY220 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Export Package Specification SY220 Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

SY220C medium excavator features strengthened structure, undercarriage and components, making it very robust and stable. Low maintenance cost and high fuel efficiency of the 22 ton excavator help customers make more profit.

Advanced Dynamic Control

DOMCS intelligent control

Positive flow control

Different working modes

High Profitability

Low fuel consumption

Higher working efficiency

Lower maintenance cost

Remote Monitoring System

Advanced GPRS monitoring

Remote error diagnosis

Smart machine alerts

Stable and Reliable

Proven hydraulic components

Heavy duty structure

Robust under carriage



Engine model	Mitsubishi D06S2	Rated power	114/2050 kW/rpm
Max.torque	590N.m@1400rpm	Displacement	5.86L
Emission standard	Tier 2	Operating weight	21900kg
Max. digging height	9113m	Max. dumping height	6240mm
Max. digging depth	6600mm	Max. digging reach	9312mm
Min. swing radius	3730mm	Height at min.swing radius	7680mm
Transport length	9650mm	Transport width	2980mm
Transport height	3440mm	Upper width	2875mm
Cab height	2990mm	Tail swing radius	2890mm
Min. ground clearance	440mm	Std. track shoe width	600mm
Bucket capacity	1.0m³	Track shoes(per side)	47
Upper rollers	2	Lower rollers	8
Track gauge	2380mm	Track length	600mm
Boom length	5700mm	Arm length	2400mm
Travel speed	5.4/3.3km/h	Swing speed	11rpm
Gradeability	70%/35°	Ground pressure	47kPa
Tractive force	209KN	Bucket digging force	152KN
Arm digging force	137KN	Fuel tank	340L
Hyd tank	239L	Engine oil	22L

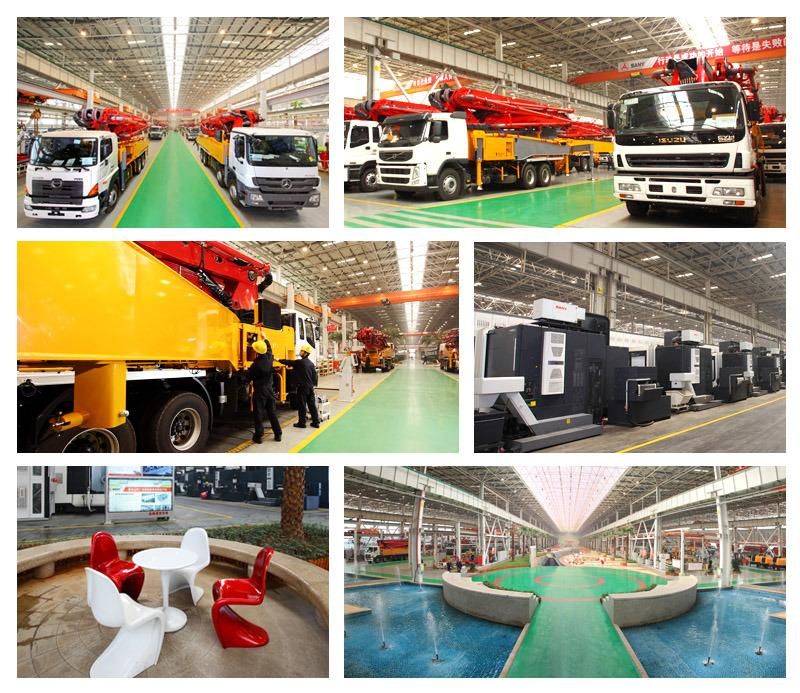

Producing Environment

Company Information

SANY On Exhibition





FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
