• Model NO.：SAG200C-6
• Engine Brand：Dongfeng Cummins Qsb6.7-C220
• Rated Rotation Speed：2200 Rpm
• Typical: L*W*H：8850X2620X3260 mm
• Weight of Typical Type：15200 Kg
• Length of Blade：3660 mm(12FT)Standard Configuration
• Height of Blade：620 mm
• Gears：10 Forward and 10 Reverse
• Forward Speed：Operating Mode:3,5,7,9,13, Travelling Mode:6,10,16
• Rated Power：164 Kw
• Max. Capacity of Hydraulic Oil Tank：210L
• Transport Package：Motor Grader Comply with Export Packaging Requirem
• Specification：200hp
• Trademark：SANY
• Origin：Cn
• HS Code：842920900
• Production Capacity：50000

Basic Info.

Model NO. SAG200C-6 Engine Brand Dongfeng Cummins Qsb6.7-C220 Rated Rotation Speed 2200 Rpm Typical: L*W*H 8850X2620X3260 mm Weight of Typical Type 15200 Kg Length of Blade 3660 mm(12FT)Standard Configuration Height of Blade 620 mm Gears 10 Forward and 10 Reverse Forward Speed Operating Mode:3/5/7/9/13, Travelling Mode:6/10/16 Rated Power 164 Kw Max. Capacity of Hydraulic Oil Tank 210L Transport Package Motor Grader Comply with Export Packaging Requirem Specification 200hp Trademark SANY Origin Cn HS Code 842920900 Production Capacity 50000

Product Description

SANY SAG200-3 Road Construction Equipment Machinery Grader

Benefits & Features

Sany SAG200C-6 motor grader features the hydraulic drive, stepless speed change, and simplified operation. The 200hp hydraulic motor grader with German Bosch fuel injection leads to low exhaust emissions.

Composite transmission, Intelligence and high efficiency, Heavy load and reliability

Integrated with the mechanical and hydraulic transmission features wide speeds, high power shift efficiency and powerful working ability.

Self-adaptive load control and steering technology eliminates frequent gear shifting and ensures high working efficiency.

Reliable and durable Meritor rear axles feature imported bearings and extra rigid drive chain.

The high torque, overload protected circle drive motor and gearbox allow precise positioning of the moldboard and blade.

High precision circle bearing is maintenance free.

Self-diagnosis function, centralized electrical components and filters are among the operator and service friendly features.



Specification of SANY SAG200-3 Road Construction Equipment Machinery Grader

Power System Spec.Supplier     Dongfeng Cummins                        Emission standard    Euro 3Model        QSB6.7-C220                                  Rated power     164 kWRated rotation speed  2200 rpm                       Peak torque   949 NmDimensionsTypical: L*W*H   8850×2620×3260 mm            Standard (with front counterweight): L*W*H 9000×2620×3260 mmWith front bulldozing plate:                                L*W*H 9880×2740×3260 mmWith front counterweight and rear scarifier: L*W*H 10010×2740×3260 mmWith front bulldozing plate and rear scarifier: L*W*H 11100×2620×3260 mmFront and rear axle base    6279 mm                Middle and rear wheel base     1538 mmClearance from rear axle to ground  400 mm
Load Spec.Weight of typical type  15200 Kg                        Standard (with front counterweight)    16000 KgWith front counterweight and rear scarifier 17400 Kg      With front bulldozing plate     16520 KgMax. total weight (with front bulldozing plate and rear scarifier)  17920 KgMax.traction        98 KN
Operating Device Spec.Length of blade  3660 mm(12ft)standard configuration        Height of blade      620 mmTilt angle   ±90°                                                 Turning angle                            360 °Running Spec.Gears  10 forward and 10 reverse
Forward speed  operating mode:3/5/7/9/13; travelling mode:6/10/16/28/38Reverse speed      operating mode:3/5/7/9/13; travelling mode:6/10/16/28/38Steering angle of front wheel      ±50°               Tilt angle of front wheel             ±17°Articulated steering angle           ±24°                Oscillation angle of front axle    ±16°Min. turning radius                      7.4°Model of tire      17.5-25(12PR) standard configuration
Tank Capacity
Max. capacity of hydraulic oil tank    210L          Max. capacity of fuel tank           310 L

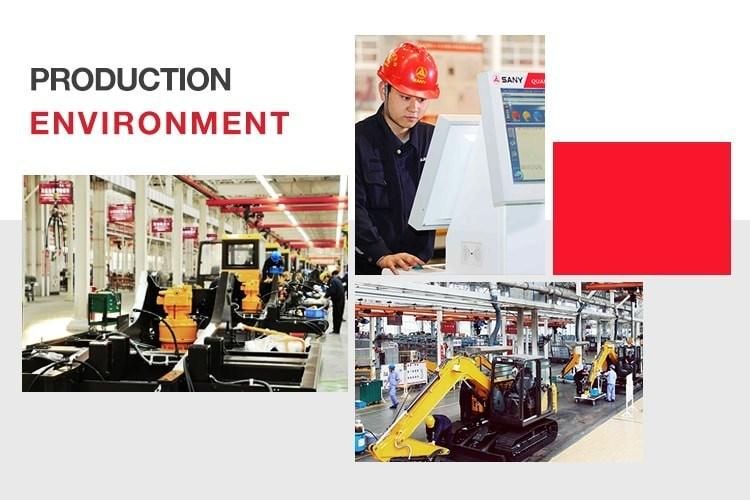

 Producing Environment
